Wireless Color Car Backup
camera and 3.6" LCD Receiver
Item#: 8909AZ
Listed Price: $199.99
Now $134.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:
This 3.5 LCD Widescreen with built-in wireless receiver, just plug into cigarette lighter plug, no additional wiring, no
additional wireless receiver hanging on your dashboard.  No screw, no tapping, suction cup connect onto your front
windshield.
(If you want a "GPS+Backup Camera System" in one unit, please see 8909PC or 8907PC)
  • Wireless Back-Up Camera System with Color LCD Monitor allows you to see what is behind you before you back up
  • Comes complete with everything you need to install
  • Avoid accidents and injuries in your Car, Van, SUV, RV, or delivery vehicle
  • Night Vision Camera mounts to your existing license plate holder and provides wide angle viewing
  • 3.6" color monitor mounts to your dash or visor
  • For use with 12V DC electrical systems
  • Installation is easy with the elimination of wires from camera to monitor
  • Easy to read English installation manual














Specifications:
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
Camera/Transmitter (8909T)
 Monitor/Receiver (7610)
Imaging Sensor        CMOS
CMOS Total Pixels        656x492 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        220mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        70m [Min.]
Dimensions (W x D x H)        215 x 33 x 33(mm)
Weight [About)        88g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
 LCD Resolution               960 x 240
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level        1 .1 V +/- 0.2V~ @75ohm,
S/N>38dB
Audio Output Signal Level        3.0V +/- 1V~ @600ohm
Power Supply        + 12/24 V DC
Consumption Current (Max.)        200mA
Unobstructed Effective Range        100(Min.)
Dimensions (W x D x H)        102 x 25 x 71mm
Weight [About)        140 g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

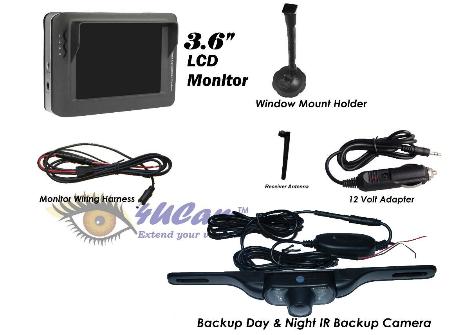

Package contains:
  • 8909T Back Up Camera
  • 7610 3.6” LCD Monitor
  • Cigarette Lighter For Monitor
  • Mount Holder
contains

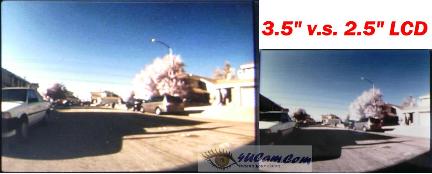

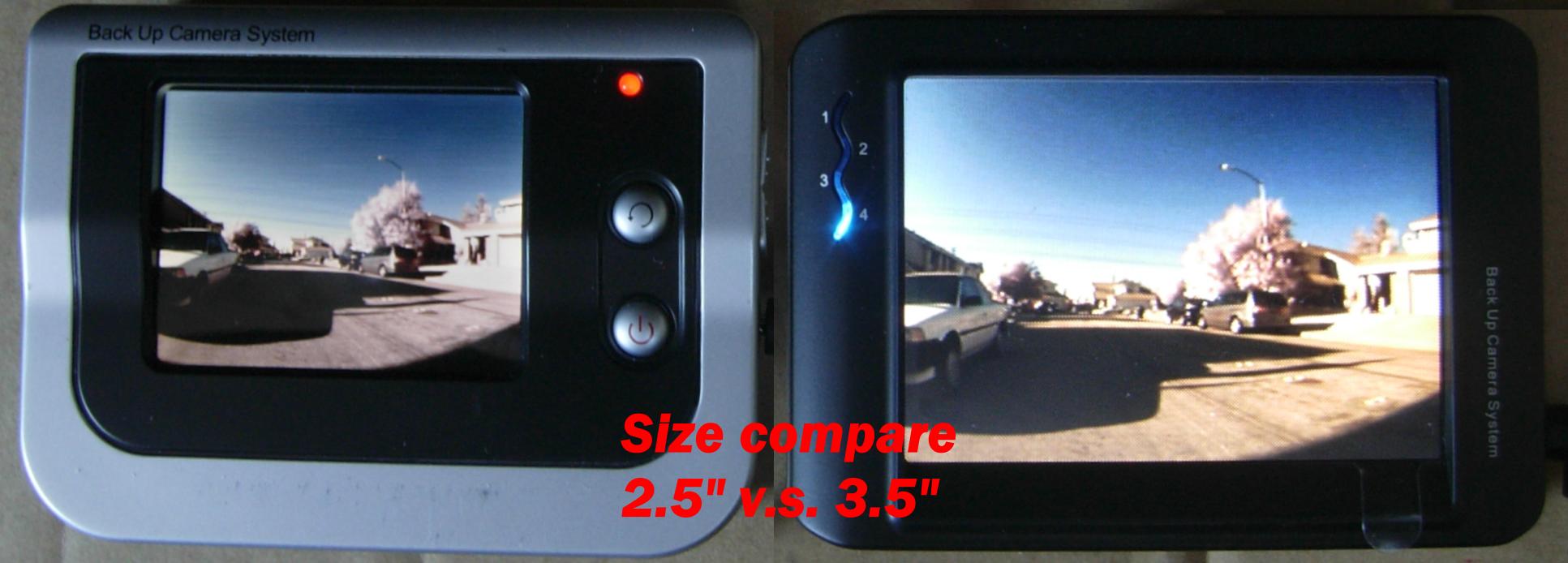

Side by side size comparing - 2.5" v.s. 3.5" LCD
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page: www.4ucam.com/backup_camera_tests.html
All rights reserved.
accessories
Accessories - additional camera and more:
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Extended 2m Antenna:
-for 7601 3.6" LCD (AZ model)
Item#:9901A
Listed $29.99
Now $24.95
See Live Demo of 8909AZ


Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99   Now $84.95
Channel#
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99  Now $64.95
Car wire Harness for AZ Monitor
Item#:AZ_wire_harness
$9.99
Car Cigarette Lighter Cables for AZ Monitor
Item#:AZ_car_adapter
$12.99
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page: www.4ucam.com/backup_camera_tests.html
See our customer's installation samples: www.4ucam.com/custom_install.html

If you plan to have the camera on the back of the 5th wheel/Trailer, please use the following round camera
set instead <suggest use 8907AZ below when camera over 20 ft away from monitor>
All rights reserved.
Add additional in-door/out-door wireless camera in our accessories page

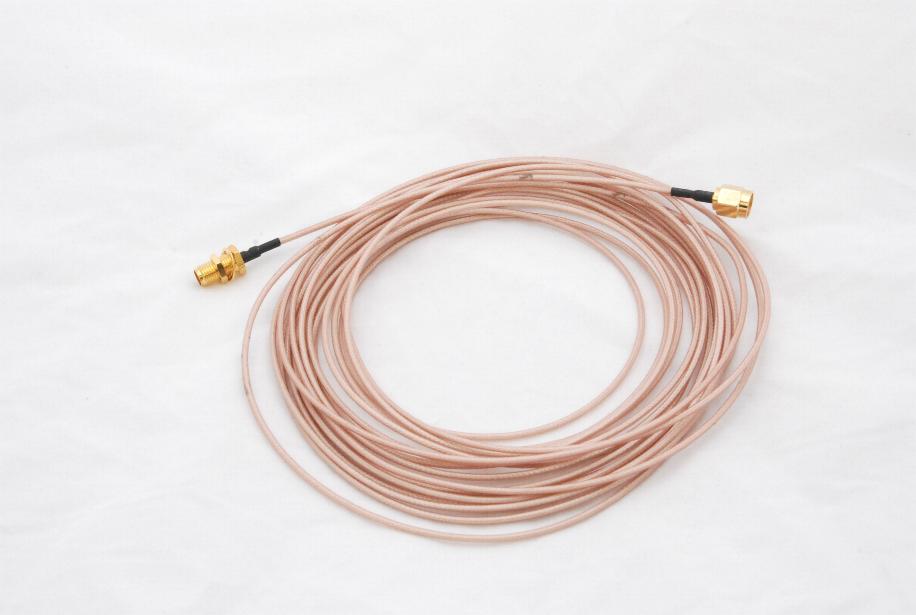

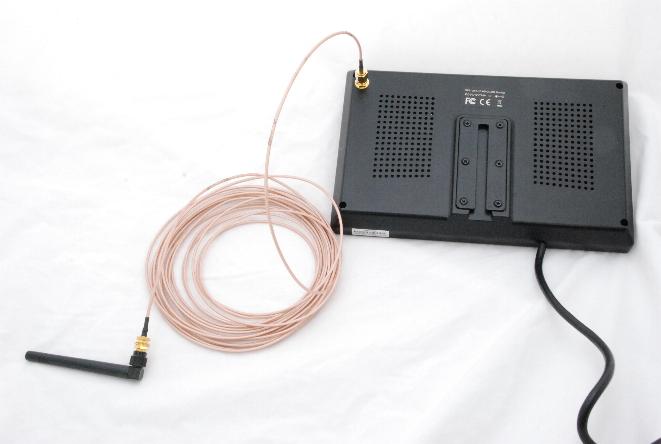

Antenna Extension cord:
-for 9901T, 9901A, 7109 7"LCD (AV model), 7610 3.6" LCD (AZ model)
item#: antenna_cord_10ft Now $14.95       antenna_cord_20ft Now $24.95
Night Vision, full rotation, and sun-blocking feature help to see better:
WIRED Color Car Backup camera and 3.6"
LCD Receiver
Item#: 8909AZ_W
Listed Price: $219.99
Now $154.95
26 feet wire for  8909AZ_W
Now $14.95

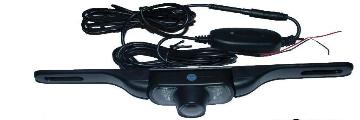

External transmitter license
plate camera
Item#: 8909TA Now $64.95
10 feet extension 4-pin wire for  8909TJ
Now $14.95
Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
4 Pin extension cord between 8909TJ camera and the transmitter
10 feet: $9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter over 20 feet away.
Click picture for detail wire length information.
15 feet hard-wired-kit for  8909AZ
Item#: 8909AZ_hardwire_kit
15 feet  $24.95
This will convert the wireless cam to wired.
Click picture for detail connection information.
30 feet hard-wired-kit for 8909AZ
Item#: 8909AZ_hardwire_kit_30feet
30 feet  $34.95
License plate camera lens
Item#: 8909TA_LENS $44.95
License plate camera 4 pins transmitter channel #4
Item#: 8909TA_TRAN $44.95
Wireless Backup Round Camera
and 3.6" LCD Receiver
Item# 8907AZ Now $159.95
26 feet wire for  8909TW_W
Now $14.95
Please also see one of our
customers' product review posted on
Youtube.
