Wireless Backup Round Camera
and 3.6" LCD Reciever
Item#: 8907AZ
Listed Price: $199.99
Now $139.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:
This 3.5 LCD Widescreen with built-in wireless receiver, just plug into cigarette lighter plug, no additional wiring, no
additional wireless receiver hanging on your dashboard.  No screw, no tapping, suction cup connect onto your front windshield.
(If you want a "GPS+Backup Camera System" in one unit, please see 8909PC or 8907PC)
•        2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install.
•        Build-in 10 high-powered IR LED night vision helping to see better at night (see sample picture below)
•        Automatic activate LCD backup view when on reverse position.
•        Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)
•        Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
•        4-Channel receiver can view up to 4 cameras
•        3.6” Color LCD Monitor allows you to see what is behind you before you back up
•        Waterproof, heavy-duty Round IR camera provides flexible mount location and position
•        Multiple mounting option - Monitor mounts to your dash, visor or window
•        For use with 12V DC electrical systems
•        Installation is easy with the elimination of wires from camera to monitor
•        Comes complete with everything you need to install
•        Easy to read English installation manual






Specifications:
Camera/Transmitter (8907T)
 Monitor/Receiver (7610)
Imaging Sensor        CMOS
CMOS Total Pixels        720x480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        80m [Min.]
Dimensions (W x D x H)        44 x 42 x 38(mm)
Weight [About)        65g
Operating Temperature        -10°C/+50°C or+14°F/122°
F
Operating Humidity        85% RH
 LCD Resolution               960 x 240
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level        1 .1 V +/- 0.2V~ @75ohm,
S/N>38dB
Audio Output Signal Level        3.0V +/- 1V~ @600ohm
Power Supply        + 12/24 V DC
Consumption Current (Max.)        200mA
Unobstructed Effective Range        100(Min.)
Dimensions (W x D x H)        102 x 25 x 71mm
Weight [About)        140 g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

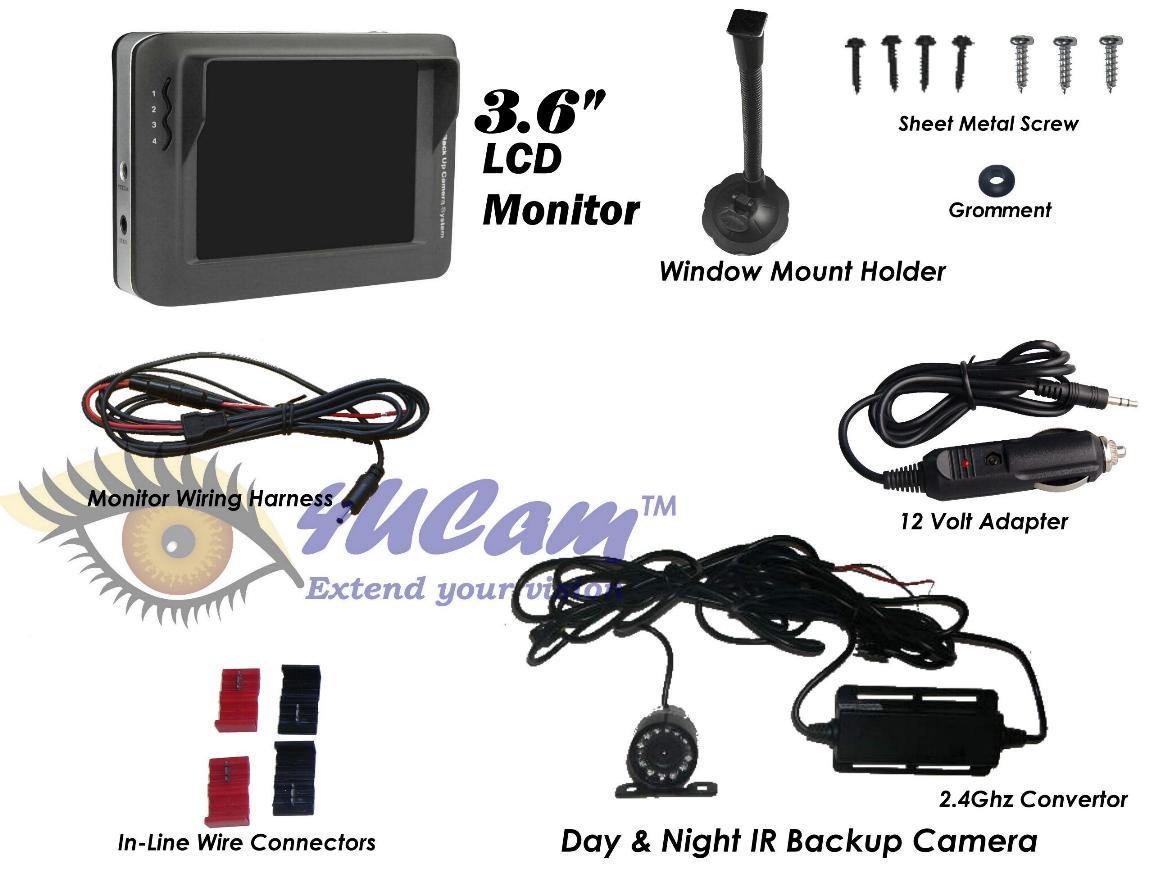

Package contains:
  • 8907T Back Up Camera
  • 7610 3.6” LCD Monitor
  • Cigarette Lighter Adapter For Monitor
  • Monitor Wiring Harness
  • Mount Holder
contains
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
Side by side size comparing - 2.5" v.s. 3.5" LCD
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page: www.4ucam.com/backup_camera_tests.html
See our customer's installation samples:
www.4ucam.com/custom_install.html
<When camera and monitor over 30 feet, please add the extension cord>
All rights reserved.
Clip-on extension cord between 8907T/8908T cam and the transmitter
10 feet: $9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter
over 30 feet away. Click picture for detail wire
length information.
accessories
Accessories - additional camera and more:
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Extended 2m Antenna:
-for 7601 3.6" LCD (AZ model)
Item#:9901A
Listed $29.99
Now $24.95
See Live Demo of 8909AZ


Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99   Now $84.95
Channel#
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99  Now $64.95
Car wire Harness for AZ Monitor
Item#:AZ_wire_harness
$9.99
Car Cigarette Lighter Cables for AZ Monitor
Item#:AZ_car_adapter
$12.99
cord
Item#:ABAZ_window_mount
Now $14.95
Item#:AVAZ_antenna
Now $4.95
Antenna Extension cord:
-for 9901T, 9901A, 7109 7"LCD (AV model), 7610 3.6" LCD (AZ model)
item#: antenna_cord_10ft Now $14.95       antenna_cord_20ft Now $24.95
Item#:AZ_video_wire
Now $14.95
Night Vision, full rotation, and sun-blocking feature help to see better:

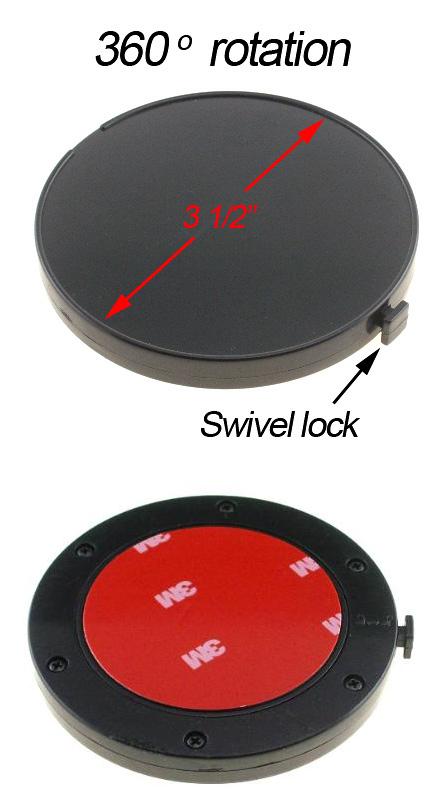

Item#:large_dash_mount_base
Now $16.95
Round Cam
Transmitter
Item#:GT4062
Now $39.95
Channel#

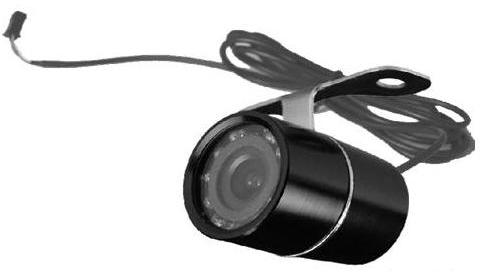

Round IR Cam only w/o transmitter
Item#:8907T_Cam
Now $39.95
Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
Wireless Sony CCD Camera and
3.6" LCD Reciever
Item#: 9901AZ
Now $199.95
WIRED Sony CCD Camera and 3.6"
LCD Reciever
Item#: 9901AZ_W
Now $199.95
Please also see one of our
customers' product review posted on
Youtube.
