Wireless Color Car Backup
camera and 2.5" LCD Receiver
Item#: 8909AB
Listed Price: $159.99
Now $99.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:

Get the security you need to protect your family and friends. Eliminate the blinds spots and see what's behind you before
you back up. Large 2.5" monitor is easy to view.
(If you want a "GPS+Backup Camera System" in one unit, please see 8909PC or 8907PC)

  • Wireless Back-Up Camera System with Color LCD Monitor allows you to see what is behind you before you back up
  • 2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install.
  • Build-in 10 high-powered IR LED night vision helping to see better at night (see sample picture below)
  • Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)
  • Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
  • 4-Channel receiver can view up to 4 cameras.
  • Night Vision Camera mounts to your existing license plate holder and provides wide angle viewing
  • 2.5" color monitor mounts to your dash or air-vent
  • Avoid accidents and injuries in your Car, Van, SUV, RV, or delivery vehicle
  • Comes complete with everything you need to install.
  • For use with 12V DC electrical systems
  • Installation is easy with the elimination of wires from camera to monitor
  • Easy to read English installation manual
Camera/Transmitter (8909T)
 Receiver (792)
Imaging Sensor        CMOS
CMOS Total Pixels        656x492 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        220mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        70m [Min.]
Dimensions (W x D x H)        215 x 33 x 33(mm)
Weight [About)        88g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
 Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level        1 .1 V +/- 0.2V~ @75ohm,
S/N>38dB
Audio Output Signal Level        3.0V +/- 1V~ @600ohm
Power Supply        + 12 V DC
Consumption Current (Max.)        200mA
Unobstructed Effective Range        100(Min.)
Dimensions (W x D x H)        140 x 54 x 106mm(lncluding
Bracket)
Weight [About)        140 g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

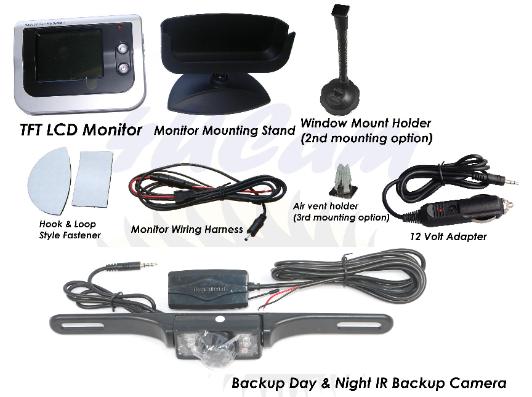

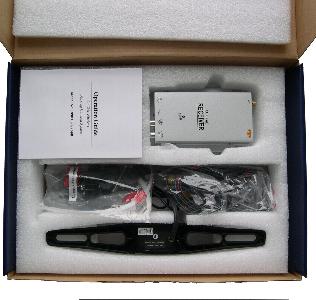

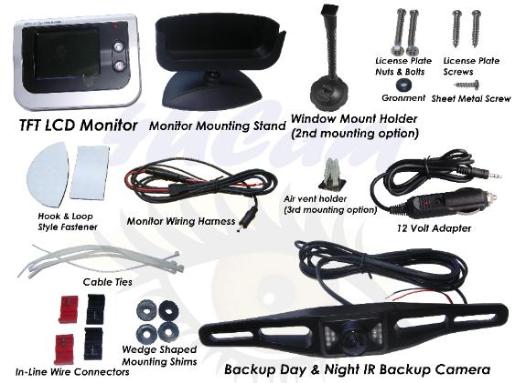

Package contains:
  • 8909T Back Up Camera
  • 792 2.5”TFT-LCD Monitor
  • Monitor Mounting Stand
  • Cigarette Lighter Adapter For Monitor
  • Monitor Power Wiring Harness
  • Mount Holder
  • Installation accessories
contains
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
All rights reserved.

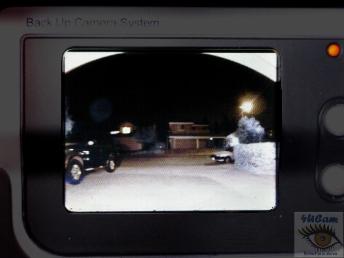

IR camera Night view

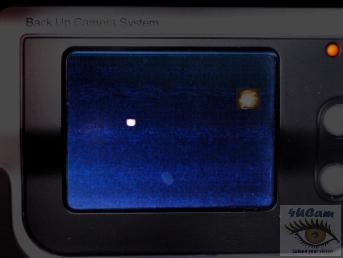

 Camera w/o IR view

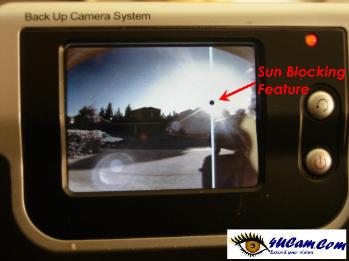

Sun blocking feature

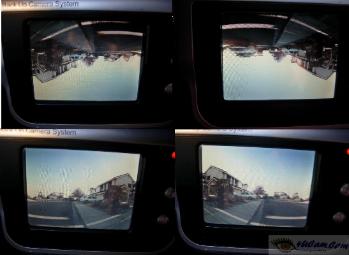

 Mirror image switch
Night Vision feature help to see better at night
accessories
Accessories - additional camera and more:
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95

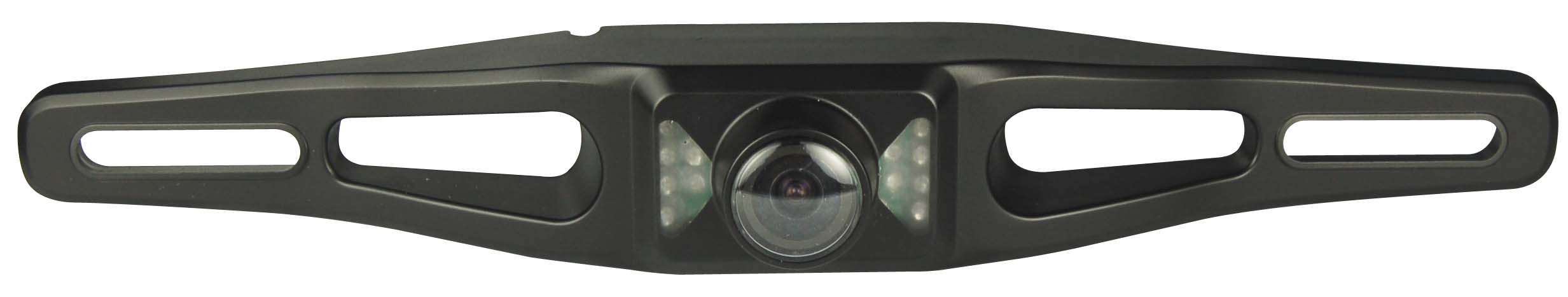

License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Car Cables for AB Monitor
Item#:AB_wire
$9.99
See Live Demo of 8909AZ


Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99   Now $84.95
Channel#
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99  Now $64.95
Car Cigarette Lighter Cables for AB Monitor
Item#:AB_car_adapter
$12.99

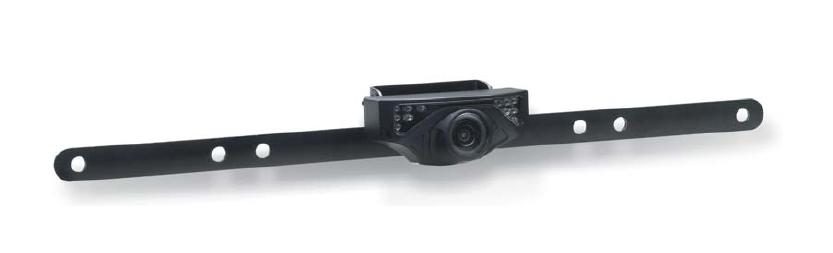

Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
Specifications:
Wireless Backup Round Camera
and 2.5" LCD Receiver
Item# 8907AB  Now $104.95
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page: www.4ucam.com/backup_camera_tests.html
See our customer's installation samples: www.4ucam.com/custom_install.html

If you plan to have the camera on the back of the 5th wheel/Trailer, please use the following round camera
set instead <suggest use 8907AZ below when camera over 20 ft away from monitor>
