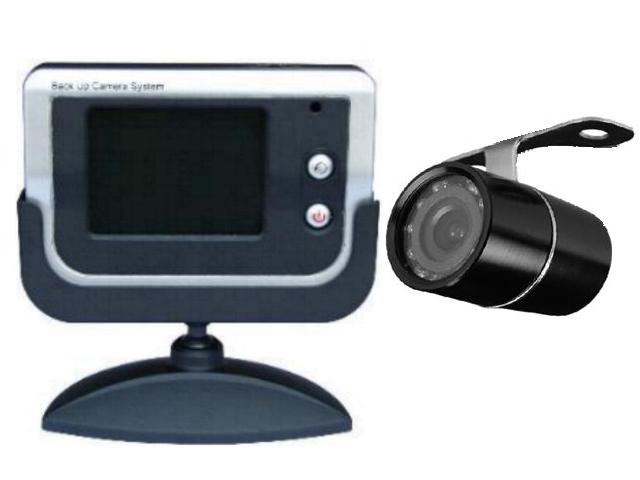

Wireless Backup Round Camera
and 2.5" LCD Receiver
Item#: 8907AB
Listed Price: $159.99
Now $104.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:
Get the security you need to protect your family and friends. Eliminate the blinds spots and see what's behind you before
you back up. Large 2.5" monitor is easy to view.
(If you want a "GPS+Backup Camera System" in one unit, please see 8909PC or 8907PC)
•        2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install.
•        Built-in 10 high-powered IR LED night vision helping to see better at night (see sample picture below)
•        Automatically activated LCD backup view when in reverse gear position.
•        Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)
•        Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
•        4-Channel receiver can view up to 4 cameras
•        2.5” Color LCD Monitor allows you to see what is behind you before you back up
•        Waterproof, heavy-duty Round IR camera provides flexible mount location and position
•        Multiple mounting option - Monitor mounts to your dash, air-vent or window
•        For use with 12V DC electrical systems
•        Installation is easy with the elimination of wires from camera to monitor
•        Comes complete with everything you need to install
•        Easy to read English installation manual






Specifications:
Camera/Transmitter (8907T)
Monitor/Receiver (792)
Imaging Sensor        CMOS
CMOS Total Pixels        720x480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        80m [Min.]
Dimensions (W x D x H)        44 x 42 x 38(mm)
Weight [About)        65g
Operating Temperature        -10°C/+50°C or+14°F/122°
F
Operating Humidity        85% RH
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level        1 .1 V +/- 0.2V~ @75ohm,
S/N>38dB
Audio Output Signal Level        3.0V +/- 1V~ @600ohm
Power Supply        + 12 V DC
Consumption Current (Max.)        200mA
Unobstructed Effective Range        100(Min.)
Dimensions (W x D x H)        140 x 54 x 106mm(lncluding
Bracket)
Weight [About)        140 g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

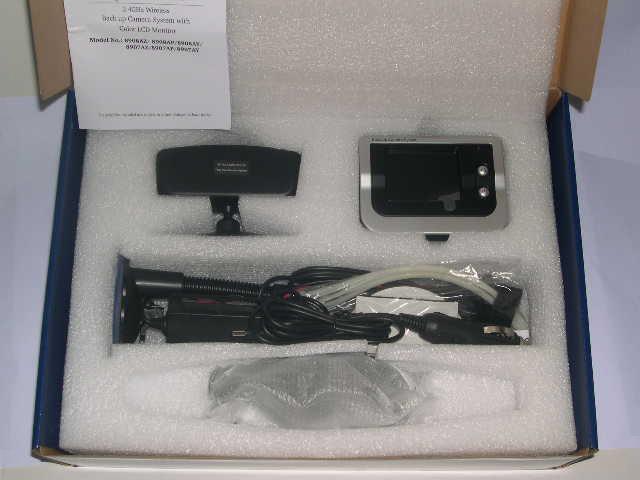

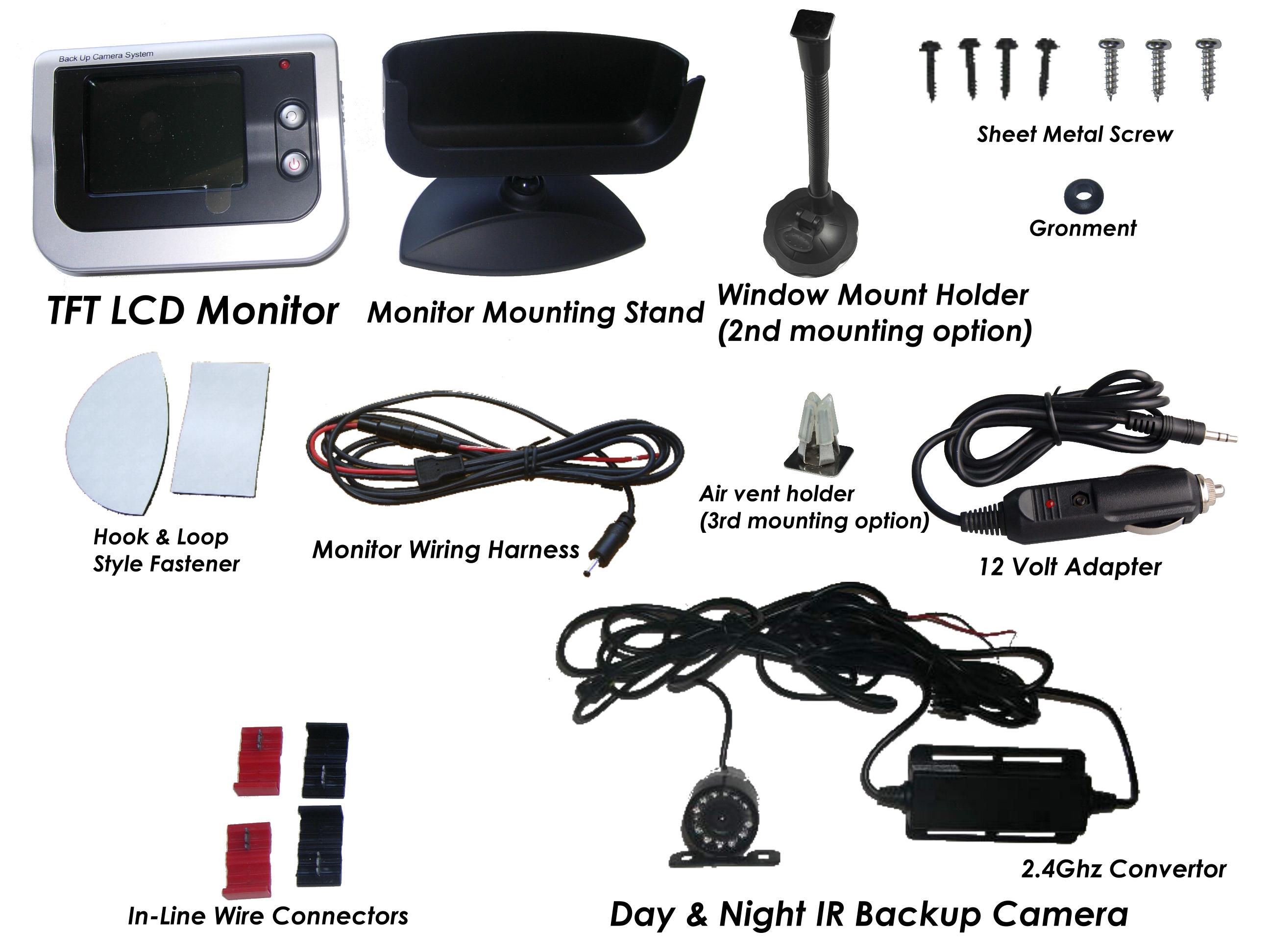

Package contains:
  • 8907T Back Up Camera
  • 792 2.5”TFT-LCD Monitor
  • Monitor Mounting Stand
  • Cigarette Lighter Adapter For Monitor
  • Monitor Wiring Harness
  • Mount Holder
  • Special Holder
contains
IR camera Night view
Camera w/o IR view
Sun blocking feature
Mirror image switch
Night Vision feature help to see better at night
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
All rights reserved.
Clip-on extension cord between 8907T/8908T cam and the transmitter
10 feet:
$9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter
over 30 feet away. Click picture for detail wire
length information.
accessories
Accessories - additional camera and more:
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Car Cables for AB Monitor
Item#:AB_wire
$14.99
See Live Demo of 8909AZ


Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99
Now $84.95
Channel#
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99
Now $64.95
cord
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html
See our customer's installation samples:
www.4ucam.com/custom_install.html
<When camera and monitor over 30 feet, please add the extension cord>
2.5" AB Monitor Replacement
(Monitor only w/o accessories)
Item#:AB_Monitor
$74.99
Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
