Wireless Round Backup Camera
and Receiver for GPS System
Item#: 8907B
Listed Price: $159.99
Now $114.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:

If you already have a video display in you car console with A/V input, why add another monitor if you can utilize it.
This wireless backup camera receiver set is designed for connecting to an existing video display unit with A/V inputs. i.e.
GPS system, DVD monitor, or laptop with an A/V input card. This unit will enable your monitor to function as Back-up
Camera System.
(If you want a "GPS+Backup Camera System" in one unit, please see 8909PC or 8907PC)

  • Wireless Back-Up Camera System allows you to see what is behind you before you back up
  • 2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install
  • Build-in 10 high-powered IR LED night vision helping to see better at night (see sample picture below)
  • Mirror image camera designed for better backup viewing
  • Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
  • 4-Channel receiver can view up to 4 cameras
  • Night Vision Camera waterproof, round IR camera provides flexible mount location and wide angle viewing
  • Avoid accidents and injuries in your Car, Van, SUV, RV, or delivery vehicle
  • Comes complete with everything you need to install
  • For use with 12V DC electrical systems
  • Installation is easy with the elimination of wires from camera to monitor
  • Easy to read English installation manual






Specifications:
Camera/Transmitter (8907T)
Receiver (704)
Imaging Sensor        CMOS
CMOS Total Pixels        720x480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        80m [Min.]
Dimensions (W x D x H)        44 x 42 x 38(mm)
Weight [About)        65g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level 1 V +/- 0.2V~ @75ohm,S/N>38dB
Power Supply        + 12 V DC
Consumption Current (Max.)        250mA
Unobstructed Effective Range        50(Min.)
Dimensions (W x D x H)        116 x 81 x 21mm
Weight (About)        160 g
Operating Temperature     -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

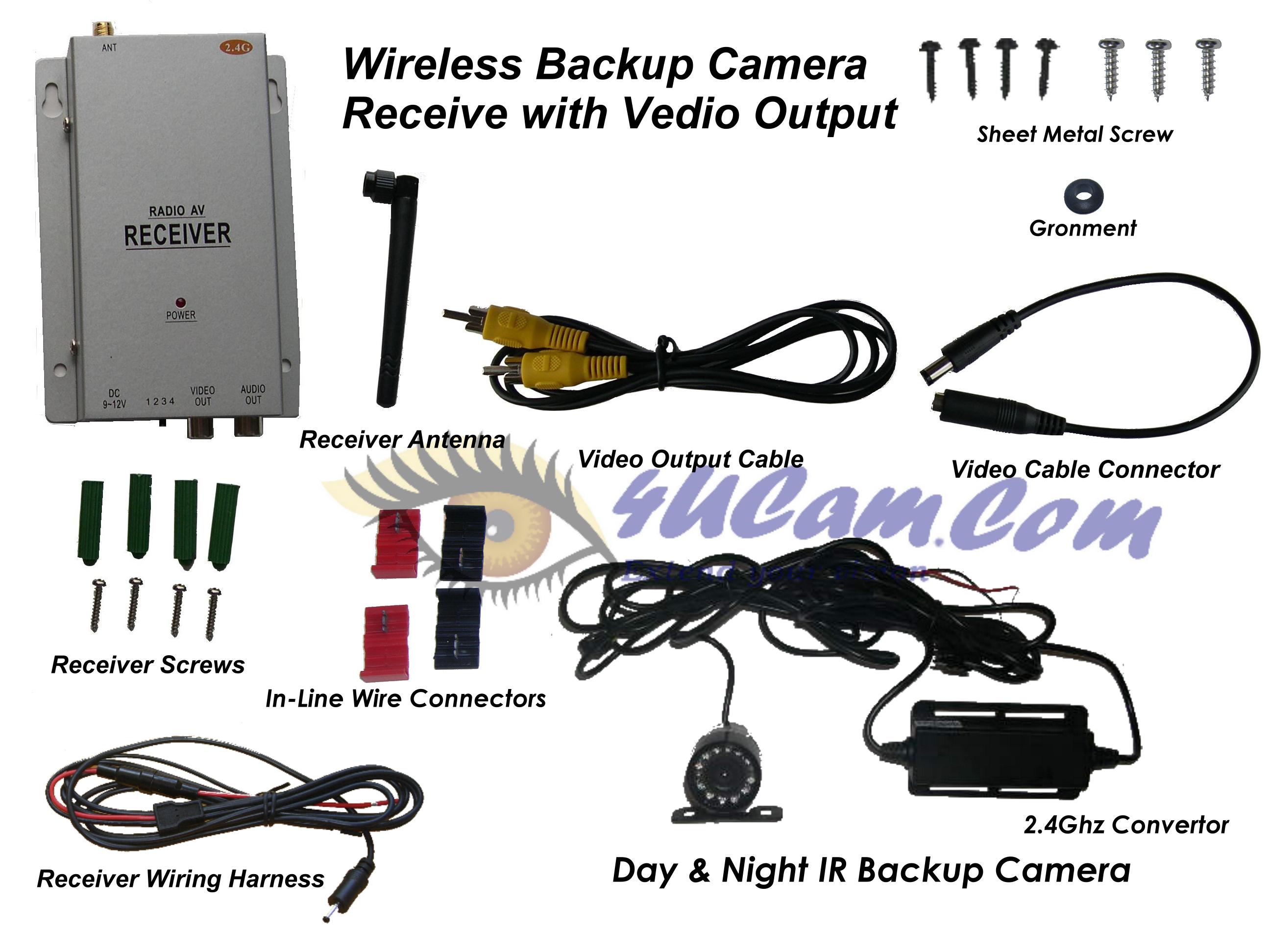

Package contains:
  • 8907T Back Up Camera
  • Wireless Receiver
  • Antenna for Receiver
  • Video Cable
  • Receiver Power Wiring Harness
  • Installation accessories
contains
Night Vision feature help to see better at night
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
IR camera Night view
Camera w/o IR view
Sun Blocking Feature
All rights reserved.
Clip-on extension cord between 8907T/8908T cam and the transmitter
10 feet:
$9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter
over 30 feet away. Click picture for detail wire
length information.
accessories
Accessories - additional camera and more:
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Wireless receiver with
video output
Item#:B_receiver
$64.99
Extended 2m Antenna for receiver
Item#:9901A
Listed $29.99
Now $24.95
See Live Demo of 8909AZ


Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99
Now $84.95
Channel#
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99
Now $64.95
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html
See our customer's installation samples:
www.4ucam.com/custom_install.html
<When camera and monitor over 30 feet, please add the extension cord>
cord
Car wire Harness for B_receiver
Item#:B_wire_harness
$12.99
Car Cigarette Cables for B_receiver
Item#:B_car_adapter
$12.99

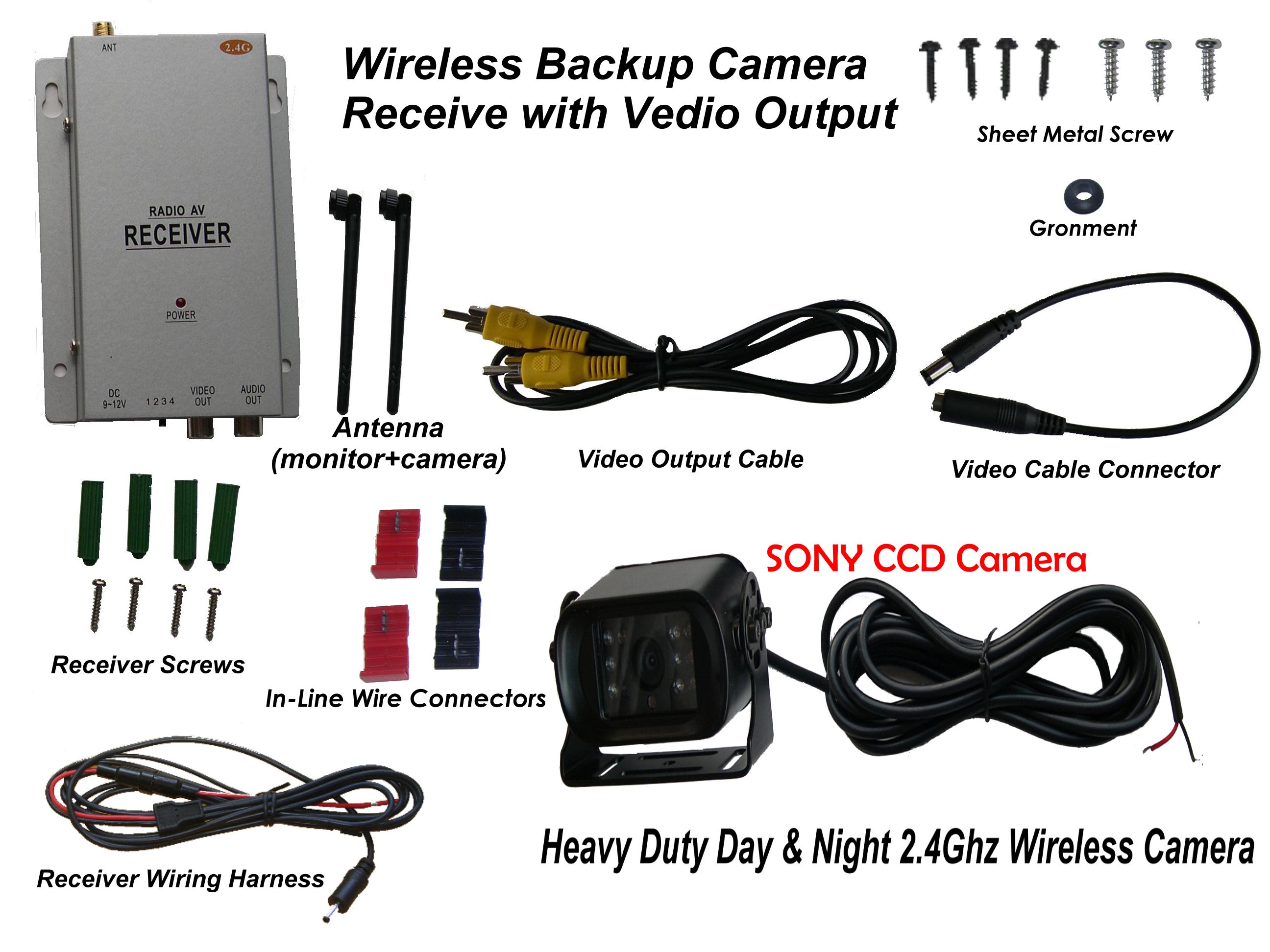

Wireless Sony CCD Camera and
Receiver for Video Display System
Item#: 9901B
Listed Price: $259.99
Now $194.95
If you want a heavy duty camera set,
you can get the system below.
Camera is designed and rated for
snow removing equipments.
Female RCA to Male
3.5mm connector
Item#F_RCA2_35mm
$9.99
Female RCA to Male
2.5mm connector
Item#F_RCA2_25mm
$9.99
30 feet video cable
Item#:30feet-video-cable
Now $24.95
4 Channel Wireless receiver with USB output
Item#:USB_receiver
$89.99
This is designed for display wireless camera video
on computer. See link for specification detail.
