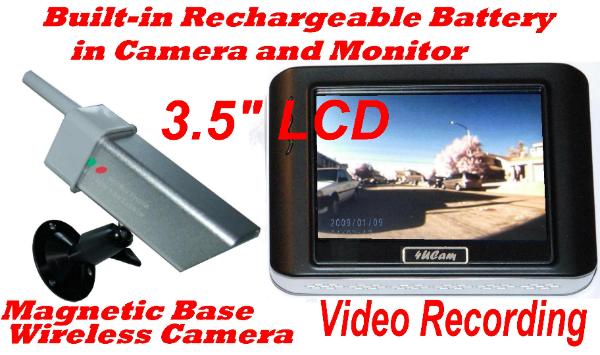

Wireless Magnetic Portable
Camera and 3.5" Video Monitor
Item#: 8402AL
Listed Price: $349.99
Now $189.95



PRODUCT DESCRIPTION:
The largest screen on the market for the magnetic portable wireless camera system is designed for portable and multi-functional use.
Both monitor and camera have built-in rechargeable battery inside. Magnetic based night vision wireless camera is used to hitch up
your enclosed trailer, camper, snowplow, boat trailer, horses trailer or anything to your vehicle fast in 2 quick steps: 1) Mount the
magnetic camera on your tailgate, 2) View yourself backing up and hitch-up.
New Features and options:
1) Sun-blocking feature – when sun shine into the camera, system will block on the sun – see sample below
2) Video output feature - Video output function to connect the monitor video output to your TV.
3) Bonus A/C adapter allow charge at home, not just on car
4) Window mount holder and Air-vent holder allow dash board mount or air-vent mount option
Advance new features only available for 3.5" system - image and video recording:
1) Monitor can capture Image (JPG) and Video (AVI Video 640 x 480) in micro SD Card (SD Card not included)..
2) USB port connect to your PC to download image and video
3) 4 channel selection to view up to 4 cameras.
4) 3.5" more than 2X size compare to the traditional 2.5"LCD
Note: Camera is mirrored image. Click here for non-mirror version
Please note, like all magnetic rechargeable camera on the market, the signal range is only good for car, truck, but not for RV, or use
on the back of the trailer.
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page: www.4ucam.com/backup_camera_tests.html
See our customer's installation sample: www.4ucam.com/custom_install.html

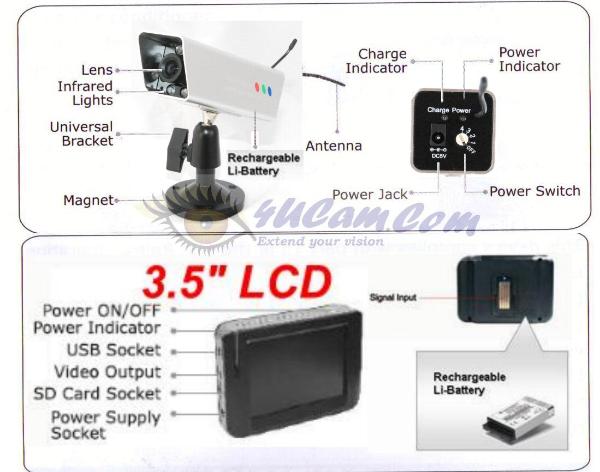

Camera/Transmitter (842T)
|
Monitor/Receiver (7307L)
|
Imaging Sensor CMOS CMOS Total Pixels 628x582 (PAL) Minimum Illumination 0 Lux (Night Vision) Transmission Frequency ISM 2,400—2,483 Mhz Transmission Power 10mW/CE; 2mW/FCC Modulation Type FM Bandwidth 18 MHz Power Supply + 5V DC Battery built-in Lithium Battery Battery Capacity 500mAh Charge Time 2h Working Time 5hr (2hr IR ON) Night Vision 12 feet Consumption Current (Max.) 150mA Horizontal View Angle 100 Degrees Unobstructed Effective Range 100m [Min.] Dimensions (W x D x H) 28 x 90 x 28(mm) Weight [About) 110g Operating Temperature -10°C/+50°C or+14°F/122°F Operating Humidity 85% RH
|
LCD Resolution 480 x 240 LCD Size 3.5" Video resolution 640x480 Receiving Frequency 2,414-2,468MHz Rechargeable Li-battery 2hr (fully charged) Receiving Sensitivity <= -85 dBm Video Output Signal Level .9-1.3V~ @75ohm Exterior Power Supply + 5 V DC Consumption Current (Max.) 680mA Unobstructed Effective Range 10M(Min.) Dimensions (W x D x H) 100 x 70 x 25mm Weight [About) 140g Operating Humidity 85% RH
|
|
Night Vision, full rotation, and sun-blocking feature help to see better:
|
See Live Demo of 8909AZ
(Not this unit, similar result)
Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Specification:

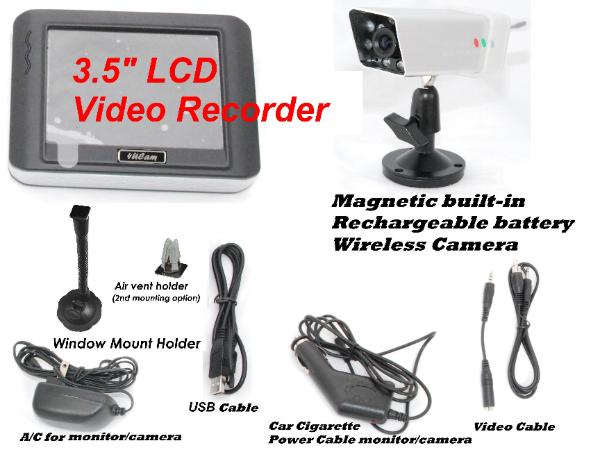

Package contains:
- 842T Back Up Camera with built-
in rechargeable battery
- 7307 3.5” LCD Monitor with built-
in rechargeable battery
image/video capture
- Cigarette lighter adapter
- A/C adapters
- Window mount holder
- Air-vent holder
- Video cable
- Connect cable
- Weatherproof cover
- User Manual
(Micro SD Card NOT included)

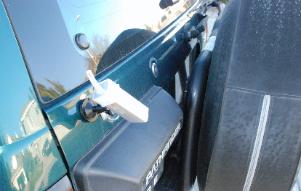

Hitch Up Trailer In 2 Quick Steps:
1) mount Magnetic camera on Tailgate
2) View monitor while backing up
and Hitch-Up
Side by side size comparing - 2.5" v.s. 3.5" LCD
Item#:1G_MicroSD_Card
(1GB Mico SD Card)
$8.99
Item#:2G_MicroSD_Card
(2GB Mico SD Card)
$16.99
Accessories - additional camera and more:
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99 Now $84.95
Car Cigarette Cables for AJ Monitor/420T
Item#:AJ_car_adapter
$12.99
A/C adapter for AJ Monitor/Camera
Item#:AJ_AC_5V
$14.99
Item: #AJ_car_mount
$9.95
842T_cover
Item#:842T_cover
$4.99
3.5" video recorder
Monitor (monitor only)
(SD card not included)
Item#:7307L
Now $154.95
Item#:air_vent_holder
$4.99
Wireless Magnetic Portable
Non-mirror Camera and 3.5"
Video Monitor
Item#: 8402AL_F
Now $209.95
Note: This is the non-mirror image version.
Everything else is same as 8402AL
Magnet based rechargeable outdoor
camera - front view non-mirror image
Item#:842TF
Listed $99.99 Now $74.95
Item#:4G_MicroSD_Card
(4GB Mico SD Card)
$19.99
Magnet based rechargeable outdoor
camera+car charger
Specification:
Item#:842T
Listed $89.99 Now $64.95
Car adapter comes with 842TF pacakge
110-240V A/C adapter for AJ Monitor/420T
Item#:5V_AC_adapter
$14.99
Extended 2m Antenna:
- for camera distance over 30 feet
Item#:9901A
Now $24.95
Antenna Extension cord:
-for 9901T,7109 7"LCD (AV model), 7610 3.6" LCD (AZ model), 7307 (AL monitor)
item#: antenna_cord_10ft $14.95 antenna_cord_20ft $24.95 antenna_cord_40ft $44.95
Extended 2m Antenna:
-for 9901T or 7109 7"LCD (AV model)
Item#:9901A
Listed $29.99
Now $24.95
Please also see one of our
customers' product review posted on
Youtube.
USB Cable
Item#:USB_cable
$9.99
User manual
Item#:842AL_manaul
$4.99
