Wireless Color Car Backup
camera + 3.6" LCD Mirror Receiver
Item#: 8907AY
Listed Price: $199.99
Now $149.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:
Get the security you need to protect your family and friends. Eliminate the blinds spots and see what's behind you before

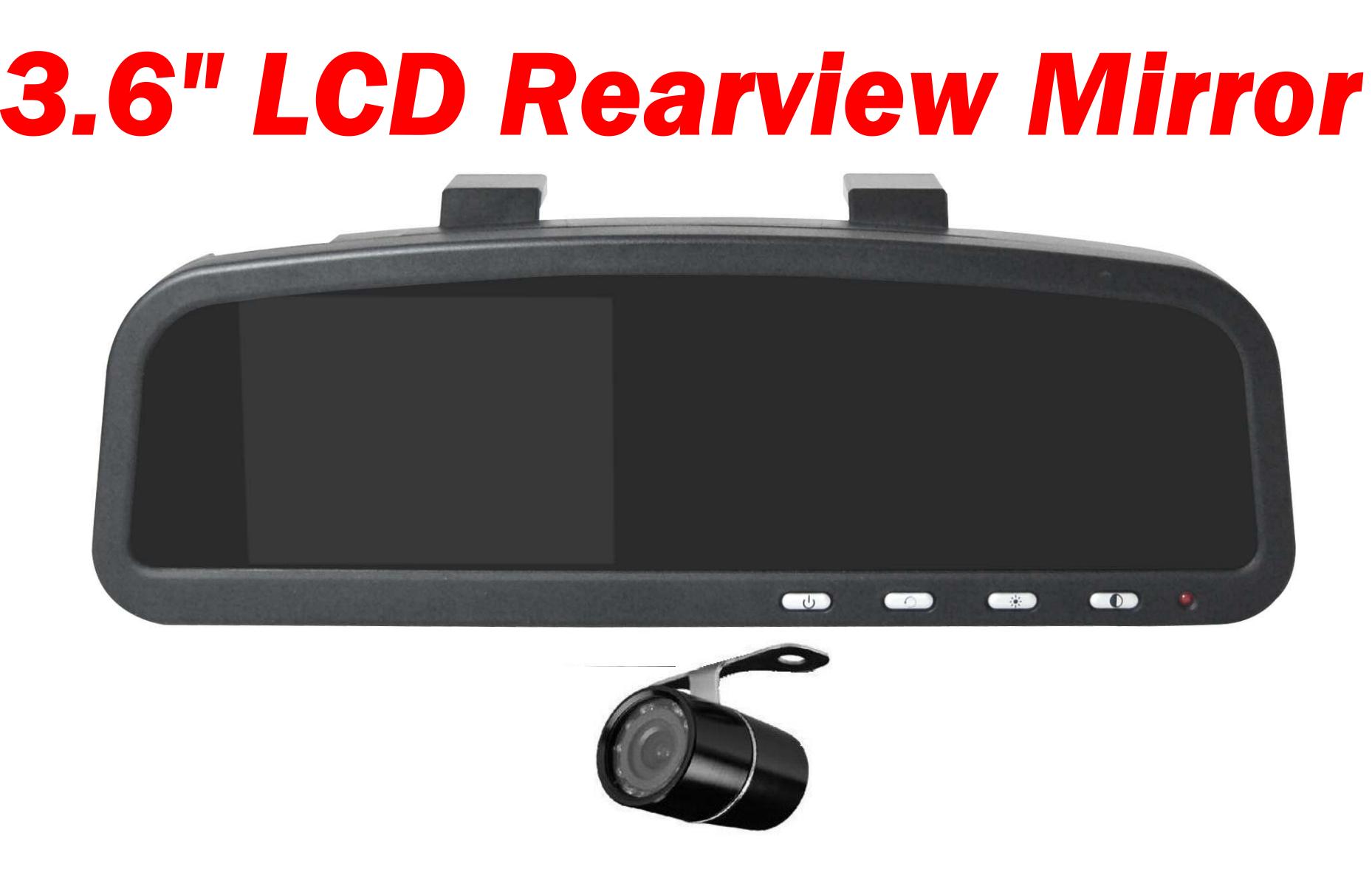

you back up. Large 3.6" TFT LCD monitor built-in rear view mirror is easy to view.
(If you want a "GPS+Backup Camera System" in one unit, please see 8909PC or 8907PC)

  • Wireless Back-Up Camera System with Color LCD Monitor allows you to see what is behind you before you back up
  • Comes complete with everything you need to install
  • Avoid accidents and injuries in your Car, Van, SUV, RV, or delivery vehicle
  • Waterproof, heavy-duty Round IR camera provides flexible mount location and position
  • 3.6" TFT LCD color high resolution 960x240 monitor built-in rear view mirror. Due to the integration with monitor
    inside the mirror, daytime image might be have glare issue if direct bright light reflection on the mirror.
  • Universal mount to your existing rear view mirror
  • For use with 12V DC electrical systems
  • Installation is easy with the elimination of wires from camera to monitor
  • Easy to read English installation manual






Specifications:
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
Camera/Transmitter (8907T)
Monitor/Receiver (7607)
Imaging Sensor        CMOS
CMOS Total Pixels        720x480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        80m [Min.]
Dimensions (W x D x H)        44 x 42 x 38(mm)
Weight [About)        65g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
LCD Resolution               960x240
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level  1 .1 V +/- 0.2V~ @75ohm,
S/N>38dB
Power Supply        + 12/24 V DC
Consumption Current (Max.)        280mA
Unobstructed Effective Range        100(Min.)
Dimensions (W x D x H)        240 x 25 x 80mm
Weight [About)        266 g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

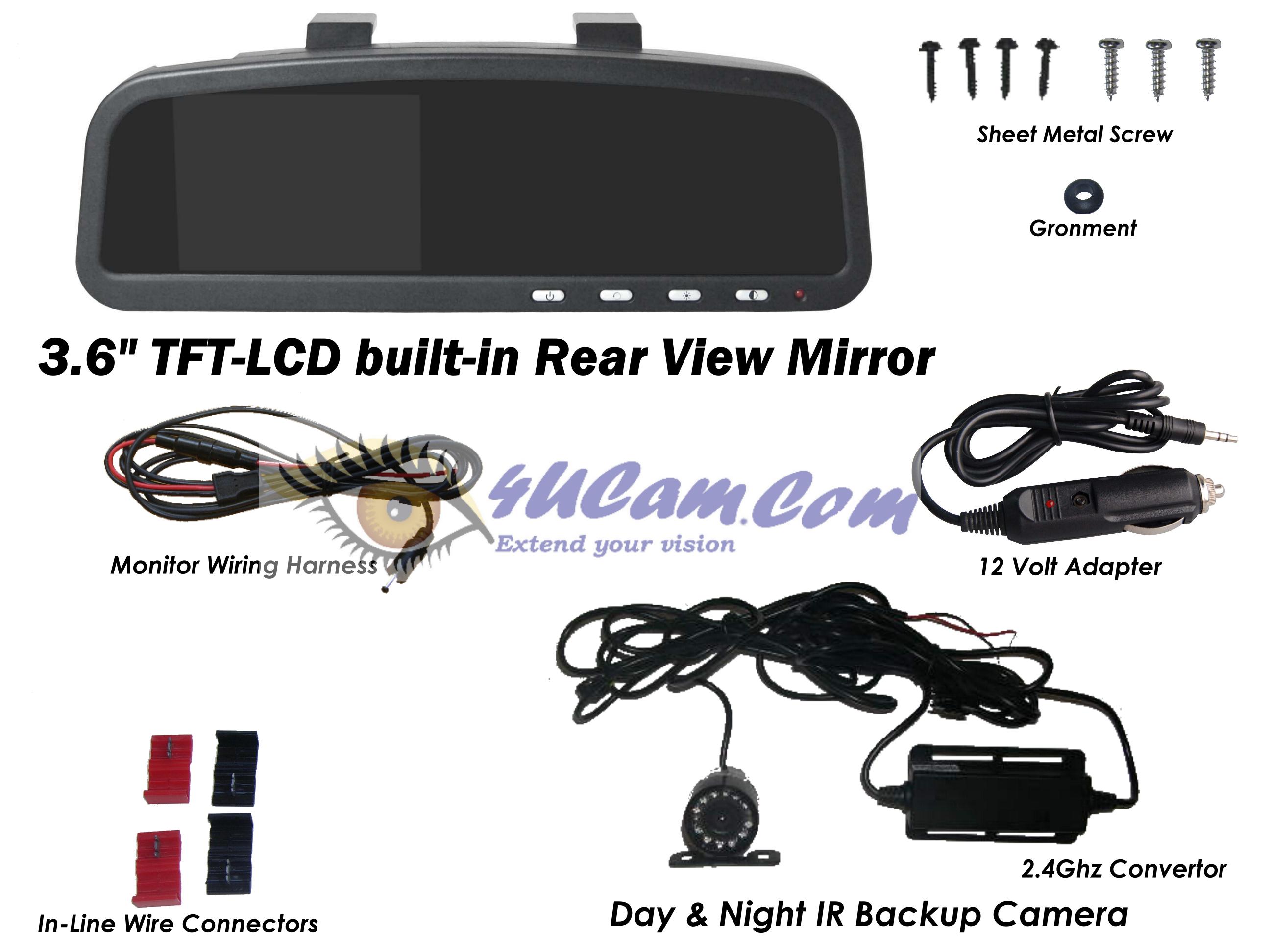

Package contains:
  • 8907T Back Up Camera
  • 7607 3.6 TFT LCD Monitor built-in rear view mirror
  • Cigarette Lighter For Monitor
  • Monitor Wiring Harness
contains
IR camera Night view
Camera w/o IR view
Sun blocking feature
Mirror image switch
Night Vision feature help to see better at night

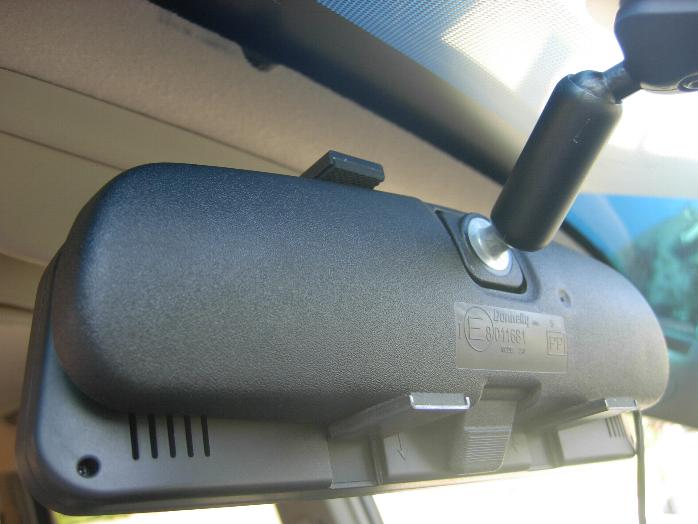

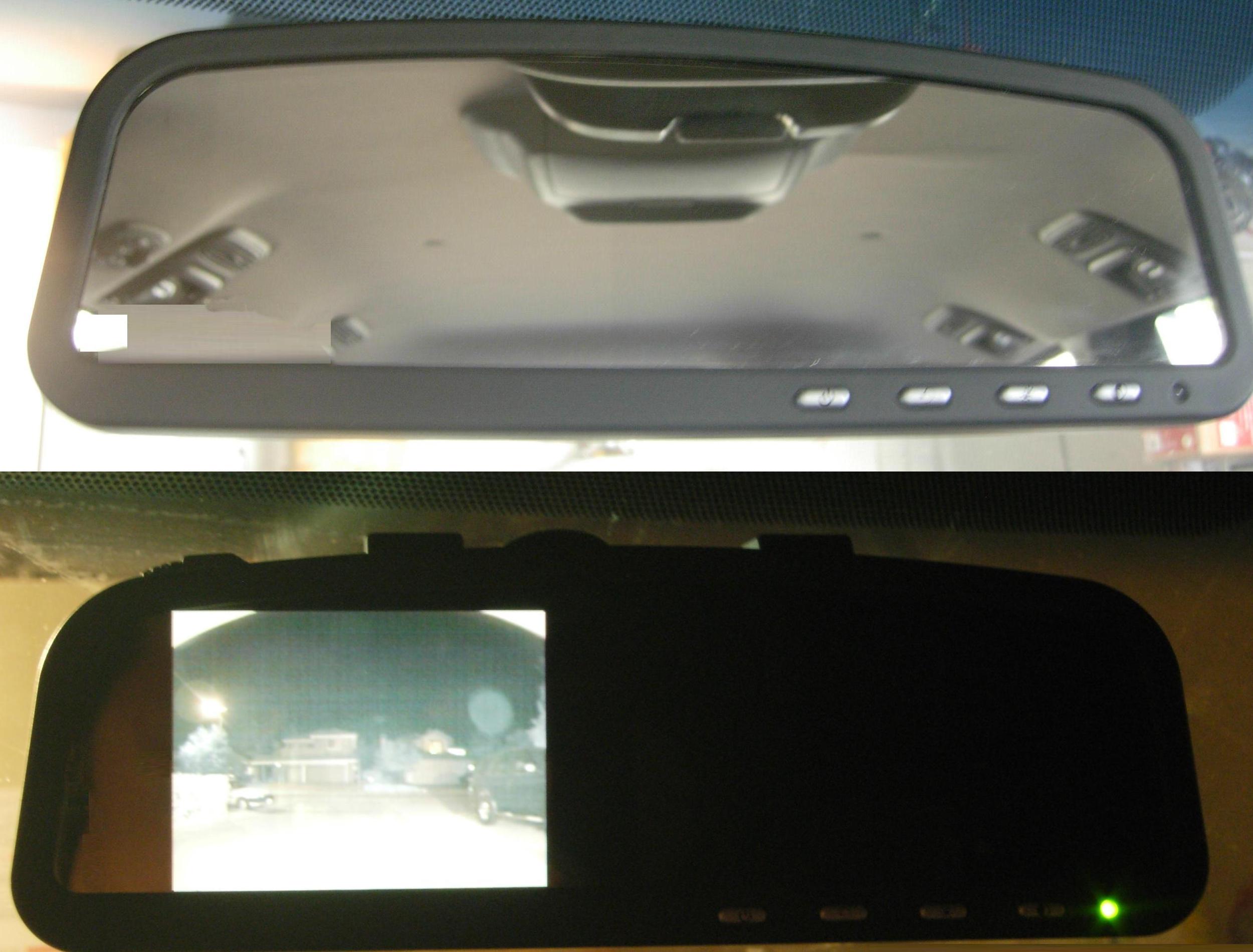

Day & Night view            Back Front View     Universal Click on rear view mirror
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html
All rights reserved.
Clip-on extension cord between 8907T/8908T cam and the transmitter
10 feet:
$9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter
over 30 feet away. Click picture for detail wire
length information.
accessories
Accessories - additional camera and more:
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
See Live Demo of 8909AZ


Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Car wire Harness for AZ Monitor
Item#:AY_wire_harness
$9.99
Car Cigarette Lighter Cables for AZ Monitor
Item#:AY_car_adapter
$9.99
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html
See our customer's installation samples:
www.4ucam.com/custom_install.html
<When camera and monitor over 30 feet, please add the extension cord>
cord
Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
