Ultra Wireless Backup CCD
Camera and 7" LCD Receiver
Item#: 9901AV
Listed Price: $369.99
Now $189.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:
If you are looking for the best of wireless backup camera and monitor set available in the industry, here is your answer.

The Monitor:
This 7" TFT LCD Widescreen with built-in wireless receiver, just plug into cigarette lighter plug, no additional wiring, no
additional wireless receiver hanging on your dashboard. The 1" thin LCD sits on the fully adjustable base allowing you to
aim the screen in almost any direction. A removable external antenna for the monitor allows for better reception for long
range signals. The On-Screen-Display menu allows you to navigate and change settings from a distance, using the remote
control. The monitor, fully compatible with any of our wireless cameras, can view up to 4 separate cameras, with the looping
channel function. Full RCA A/V input allows you to plug in a DVD player, or video game console. The built-in dual speakers
provide a stereo sound.

The Camera:
This heavy-duty metal framed CCD wireless water-proof camera comes with a 12 high-powered IR LEDs for 20 feet night
vision in total darkness. Camera uses SONY 1/4" high-resolution CCD, with removable external antenna for longer range
signal transmission, estimated unobstructed range of 300 feet. By adding the optional super-charged extended antenna
($25), this set can be used in almost any situation. Aluminum alloy metal case with 6.8G-force rated shock resistant, IP66
waterproof of resistance grade, and heavy-duty adjustable steel mounting bracket.














Click Above Pictures for Detail View

Get the security you need to protect your family and friends. Eliminate the blinds spots and see what's behind you before
you back up. Large 7" monitor is easy to view.
•        2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install.

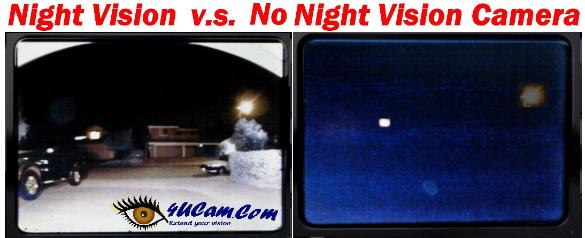

•        Built-in 12 high-powered IR LED night vision helping to see better at night (see sample picture below)

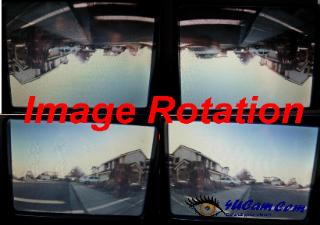

•        Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)
•        Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
•        4-Channel receiver can view up to 4 cameras
•        7” Color TFT-LCD Monitor with built-in receiver, one RCA A/V input for your DVD or game console.
•        Waterproof, heavy-duty CCD IR camera provides flexible mount location and position
•        For use with 12V DC electrical systems
•        Installation is easy with the elimination of wires from camera to monitor
•        Comes complete with everything you need to install
•        Easy to read English installation manual

Why just use you monitor in your car? You can use it in-doors as a Baby Monitor, Security Monitor, or just another flat
panel monitor for your DVD or game console at home. Just add the optional A/C adapter for your 7" monitor. This monitor
can view all our wireless cameras we carry. You can add an A/C adapter, and other wireless cameras found in our
accessories page.





Specifications:
CCD Camera/Transmitter (9901T)
Monitor/Receiver (7109+external antenna)
Imaging Sensor        CCD
CCD Total Pixels        712 x 480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
IR Night Range           15 ft
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        100m [Min.]
Dimensions (W x D x H)(mm) 96x52x61(excluding bracket)
Weight [About)        380g
Operating Temperature        -20°C/+60°C or+4°F/140°F
Operating Humidity        85% RH
LCD Resolution               480 x 342
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level        1 .1 V +/- 0.2V~ @75ohm,
S/N>38dB
Audio Output Signal Level        3.0V +/- 1V~ @600ohm
Power Supply        + 12/24 V DC
Consumption Current (Max.)        900mA
Unobstructed Effective Range        100(Min.)
Dimensions (W x D x H)        196 x 27 x 127mm
Weight [About)        474 g (excluding bracket)
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

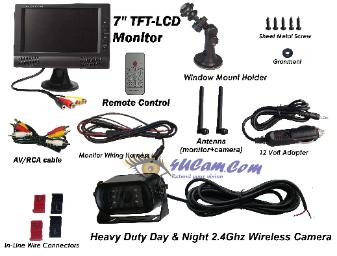

Package contains:
  • 9901T Back Up Camera
  • 7109 7 TFT-LCD Monitor
  • Monitor Remote Control
  • Mount Holder
  • AV/RCA cable
contains
* USA Get It Faster!!!
* Add Additional Camera
* International Order!

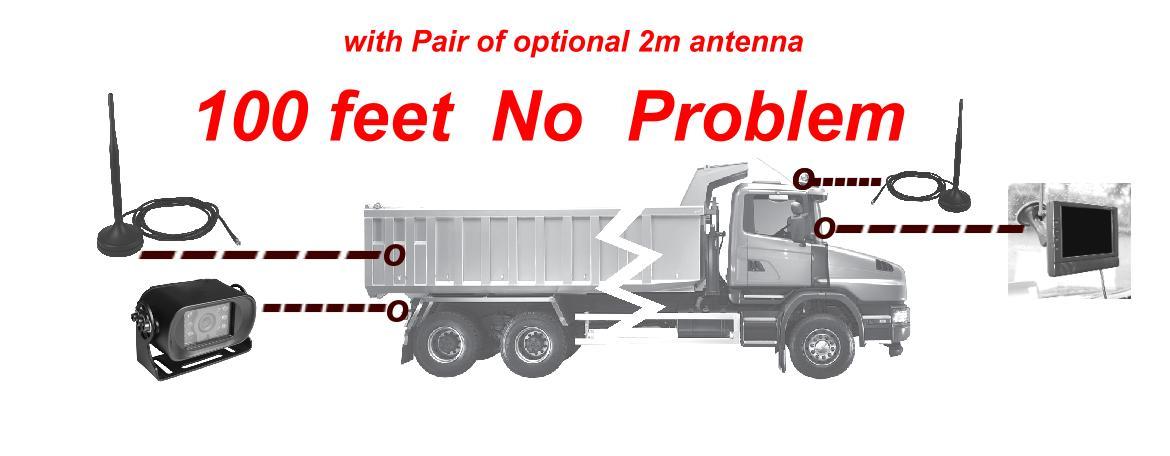

If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html
See our customer's installation samples: www.4ucam.com/custom_install.html
accessories
Accessories - additional camera and more:
7" TFT LCD
Back Side View
Monitor Base + remote control
CCD IR Wireless Camera
Optional Antenna $25
A/C adapter for 7" Monitor
Item#:7-inch_AC
$14.99
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Extended 2m Antenna:
-for 9901T or 7109 7"LCD (AV model)
Item#:9901A
Listed $29.99
Now $24.95
Table stand or wall mount
Item: #7"LCD_table_stand
$19.95
See Live Demo of 8909AV


Video is the live demo of 8909AV system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Car wire Harness for 7" Monitor
Item#:7-inch_wire_harness
$9.99
Car Cigarette Lighter Cables for 7" Monitor
Item#:7-inch_car_adapter
$12.99
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99
Now $84.95
Channel#
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99
Now $64.95
Antenna Extension cord:
-for 9901T,7109 7"LCD (AV model), 7610 3.6" LCD (AZ model), 7307 (AL monitor)
item#: antenna_cord_10ft  $14.95  antenna_cord_20ft $24.95     antenna_cord_40ft $44.95
Night Vision, full rotation, and sun-blocking feature help to see better:
Item: #7"LCD_dash_mount
$24.95
Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
Ultra Wireless Backup CCD Camera
and 3.6" LCD Receiver
Item#: 9901AZ
Now $179.95
Anti Glare Sun Shade Visor
(click to see more detail)
Item#: 7inch_visor
Now: $14.99
If you want to covert the camera as portable, you can get the battery pack, and industrial magnetic ring from link below.
12V portable rechargeable battery pack
(fully charged, use about 4-6 hours)
Item#:12V_battery_pack
$49.99
Industrial magnetic ring - one pair
Item#:magnetic_ring_onePair
$9.99
Car Cigarette Lighter battery pack
Item#:12v_car_adapter
$14.99
