7" LCD HD Digital Touch Screen GPS
+ Wireless Backup License Camera
w/Bluetooth System
Item#: GPSD7_8909
Listed Price: $469.99
Now $179.95
specification
PRODUCT DESCRIPTION:
GPS and Backup Camera System with 7” touch screen GPS navigation system and wireless backup camera
system in one unit, plus bluetooth, FM transmit, AV input, video, music, photo and ebook reader.

GPS mode: The unit delivers reliable navigation with pre-loaded 2D or 3D maps for all 50 states and Canada,
points of interest, Text-to-Speech voice guide, and automatically adjusts for day or night viewing. The touch-screen
permits easy input for stored addresses, and lets you plan your route by entering an address, an intersection, a
point of interest, or a city center as a destination, and detours around areas you wish to avoid. "Text-to-Speech"
technology clearly pronounces all street names over the built-in speaker to guide you to your destination without the
need to take your eyes off the road or fumble with a map. A USB cable connects the unit to your PC for updating
music and pictures, or charging the battery. SD card slot, including a 4 GB internal memory, allows the navigator to
double as a portable MP3 player or picture viewer. The unit can be powered by an adapter that plugs into a car
cigarette lighter, or for portability, via its built-in rechargeable Li-Ion battery that provides about 1 hours of operation
on an 8-hour charge. The display's wireless cradle mounts without tools using a suction fastener. Bluetooth function
will make you totally hand-free when you answer the phone.

Backup Camera Mode: The camera and transmitter are powered by the cables that power your vehicle's reverse
lights. When you put your vehicle into reverse gear, your reversing lights turn on and power is sent to the camera
and the transmitter, sending out a video signal. The GPS unit then auto-switches over to the camera view.

Bluetooth Mode: Unit will make you totally hand-free when you answer the phone, whenever a call is
coming, no matter you're navigating, listening music or backing up, the unit will switch to Bluetooth mode
automatically, after you hand up, the unit will switch back to the previous mode.

Multi language support: English, French, Spanish and more. Additional European and other Maps available.
features

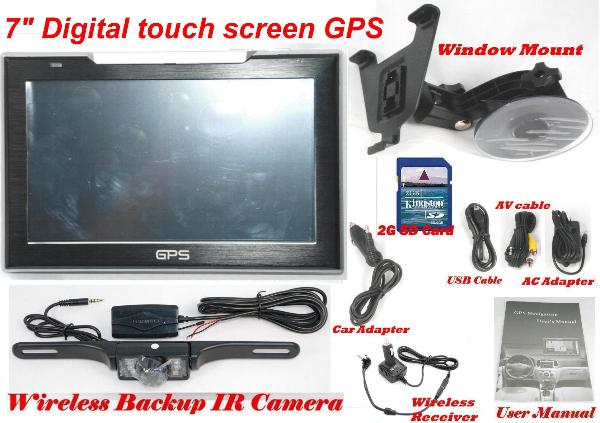

Package contains:
  • 7 GPS TFT-LCD Touch Screen
  • 8909T Wireless Backup Camera kids
  • Wireless Receiver
  • Secure Window Mount Holder
  • USB cable
  • AC Adapter
  • Cigarette lighter power adapter
  • User Manual
contains
Navigator + wireless receiving bracket
Camera/Transmitter (8909T)
Screen          7" QVGA TFT Touch Screen
Resolution    800 × 480
Dimensions  7.2” x 4.75” x 0.7”
Screen size   6" x 3.5"
Weight          1 lb
CPU              SAMSUNG S3C2443X-40 530MHz
GPS chip      SiRF Star III
System configuration        Win CE. Net 5.0 Core
Format supported    MP4, DIVX, XVID, WMV, ASF, AVI;
WMA9, MP3, WAV, JPG, GIF, BMP, TXT
Antenna        Embedded
Memory        128M
NAND FLASH        128M
Capacity of SD card        32M ~ 8G
Capacity of lithium battery        650 mAh
Operating time of lithium battery   1 hours/200hr sleep
Car-borne power supply  +12 car/5V USB interface
Channel     20
Hot Start Time  <2s
Video signal output impedance    1.1±0.2Vpp@75 ohm
Video output polarity        Negative
Modulation type        FM
Maximum power consumption during operation  350 mA
Operating temperature        -10ºC ~ +60ºC /+14ºF ~
+132ºF
Operating humidity (maximum)        <85% RH
Imaging Sensor        CMOS
CMOS Total Pixels        656x492 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        220mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        70m [Min.]
Dimensions (W x D x H)        215 x 33 x 33(mm)
Weight [About)        88g
Operating Temperature        -10°C/+50°C or+14°F/122°
F
Operating Humidity        85% RH

Wireless Receiver
Dimensions  65×35×15mm
Frequency Stability          100Khz
Frequency        ISM 2400 MHz ~ 2483 MHz
Power Supply           +12V DC
Video Output Level   1.1±0.2Vpp@75 ohm
Receiving sensitivity        -85dBm
Operating temperature        -10ºC ~ +50ºC /+14ºF ~
+122ºF
Operating humidity (maximum)        <85% RH
All rights reserved.
If you plan to use it in a long truck or trailer, 8907T backup camera would work better in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html

See our customer's installation sample: www.4ucam.com/custom_install.html

Specifications:
GPS
Navigation
Long range
wireless cam
Hand-free
Bluetooth
Transmit FM
to car radio
Video player
Music player
Accept AV
input
Browser
eBook
reader
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
accessories
Accessories - additional camera and more:
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
GPS7_receiver
Item#:GPS7_receiver
Listed $129.99
Now $79.95
GPS7_LCD
Item#:GPS7_LCD
Listed $299.99
Now $139.95

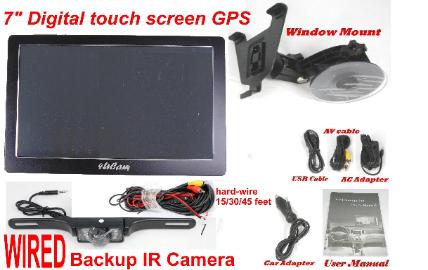

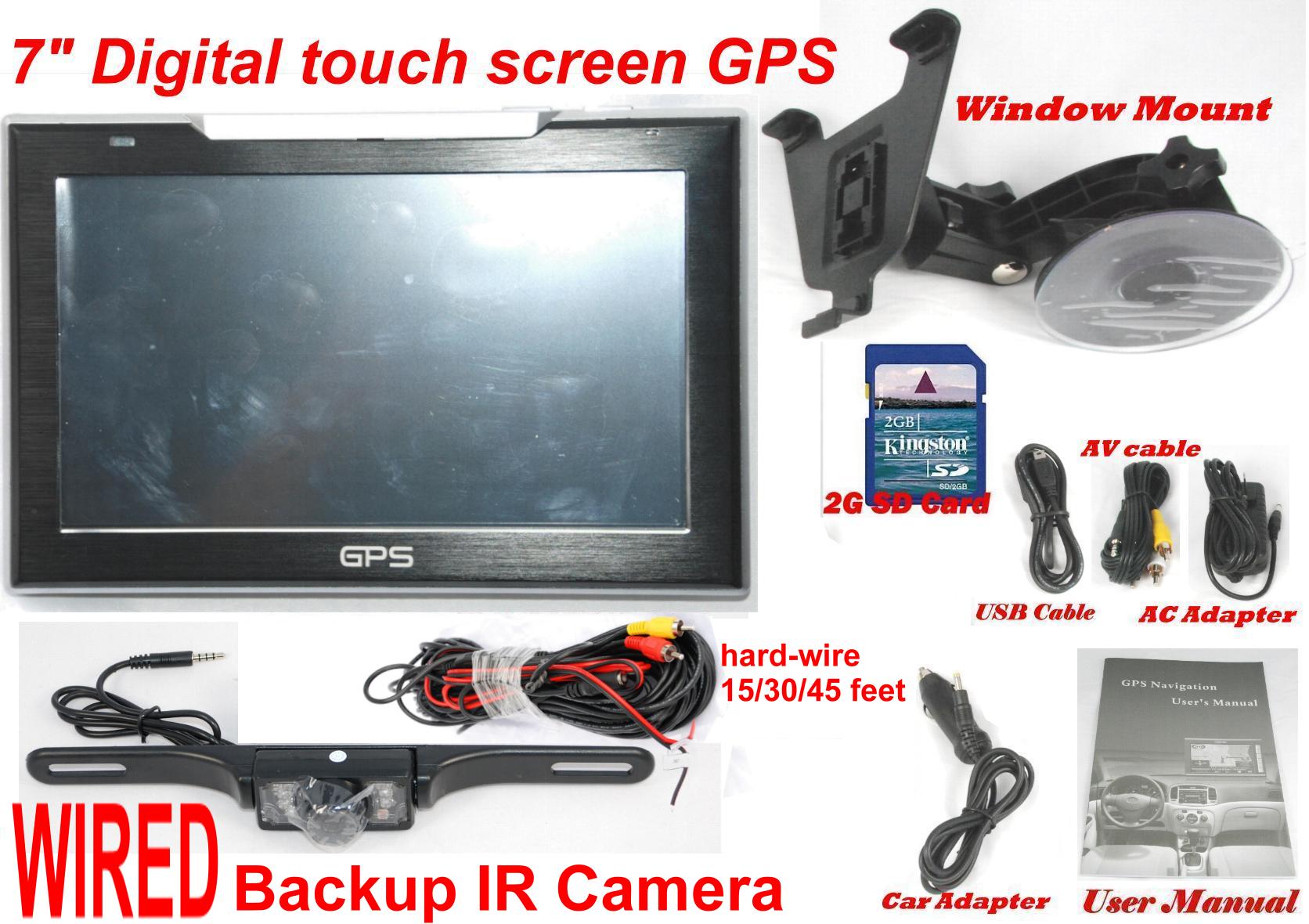

7" LCD HD Digital Touch Screen GPS
+ WIRED Backup License Camera
w/Bluetooth System
Item#: GPSD7_8909_WIRED
Listed Price: $269.99
Now $179.95
30 feet wire cable upgrade  $14.95

45 feet wire cable upgrade  $26.95

60 feet wire cable upgrade  $39.95
Default 15 feet wire cable from camera to GPS
See GPS+backup cam demo (4.3" model software might be different )
Key Features:

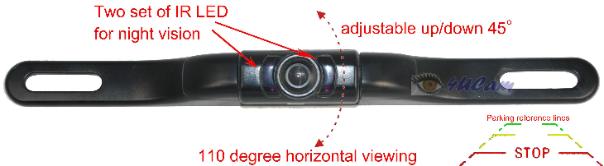

  • Long signal range 2.4Mhz wireless round backup camera,
    waterproof, day&night backup camera
  • 110 degree horizontal view angle
  • 530 MHz SamSung S3C2443X-40 CPU
  • 800x480 Pixels Digital HD displayer with touched screen
    and key-press operate.
  • 128MB SDRAM & 128M Nand Flash memory
  • Windows CE5.0 operation system
  • Integrated with newest SiRF Star III
  • GPS module, which can receive up to 20 satellite channels
  • Double-track headphone connector,
  • 2Whi-Fi speaker built in
  • Rechargeable lithium battery stand up to 3hrs(550 hours
    in sleeping status)
  • Navigation software and multimedia
  • data store in 4Gb internal memory

Other features:
Music player support: mp3,wav,mid
Movie player support: asf, avi,mp4,wmv
Picture browser support: BMP,JPG,PNG,FIG
eBook reader support: txt

FM Transmitter:
Use your car FM radio to receive the sound from the GPS
device (including guide prompting voice, calls in bluetooth
mode,Mp3/Mp4 music), adjust the volume as you like, enable
driver get every prompting details even in noisy environment.

Audio/Video-Input Connector:
This function make the device as a LCD monitor, can connect
to DVD Player or video game

Software
USA & Canada maps Q3 2015 (optional European maps,
Australia & New Zealand maps)
Text-to-Speech turn-by-ture voice guide, multiple language(US
English/UK English/French/German/Spanish...)
All-in-one cockpit screen show all the traffic information,
including your speed, name of current/next street, distance/time
left to the destination, estimated arriving time, distance left to
the next turn, lane information, road information, POI
information...
SMART ZOOM will automatically adjust zoom in or out and
viewing angle to give you the optimal view in any situation.
Quick setting icon for 2D/3D maps switch, detour, cursor,
day/night mode switch, volume adjustment, 3D building on/off,
vehicle select, track logs record.
Automatic and instant route  re-calculation when a wrong turn is
made Multi-destination of a route available
POIs(Point of Interest) with phone number, including gas
stations, parking, restaurants, ATMs, hospital and more.
6 vehicle modes(car, taxi, bus, emergency, pedestrian, bicycle)
Speed alarm, Day & night mode display
4 Pin extension cord between 8909TJ camera and the transmitter
10 feet:
$9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter over 20 feet away.
Click picture for detail wire length information.
15 feet hard-wired-kit for  GPS4
&5_8909
Item#: GPS45_hardwire_kit
15 feet  $24.95
This will convert the wireless cam to wired.
Click picture for detail connection information.
30 feet hard-wired-kit for  GPS4 &5_8909
Item#: GPS45_hardwire_kit_30feet
30 feet  $34.95
GPS7 video wire
Item#:GPS7_vid_wire
$5.95
Anti Glare Sun Shade Visor
(click to see more detail)
Item#: 7inch_visor
Now: $14.99

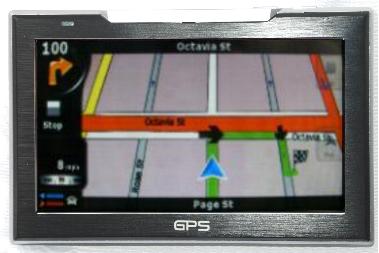

GPS Navigation Mode
Bluetooth Mode
Backup Camera Day View
Backup Camera Night View
wired
wired
Cigarette lighter power adapter
for  GPS
Item#:GPS45_cig_adapter
Now $14.95
