7" LCD HD Digital Touch Screen
GPS + Wireless Backup Round
Camera w/Bluetooth System
Item#: GPS7D_8907
Listed Price: $499.99
Now $189.95
GPS and Backup Camera System with 7” Digital 800*480 High Definition touch screen GPS navigation system and
wireless backup camera system in one unit, plus bluetooth, FM transmit, AV input, video, music, photo and ebook reader.

interest, Text-to-Speech voice guide, and automatically adjusts for day or night viewing. The touch-screen permits easy
off the road or fumble with a map. A USB cable connects the unit to your PC for updating music and pictures, or charging
pronounces all street names over the built-in speaker to guide you to your destination without the need to take your eyes
off the road or fumble with a map. A USB cable connects the unit to your PC for updating music and pictures, or charging
the battery. SD card slot, including a 4 GB internal memory, allows the navigator to double as a portable MP3 player or
picture viewer. The unit can be powered by an adapter that plugs into a car cigarette lighter, or for portability, via its built-
in rechargeable Li-Ion battery that provides about 1 hours of operation on an 8-hour charge. The display's wireless
cradle phone.
mounts without tools using a suction fastener. Bluetooth function will make you totally hand-free when you answer the

Backup Camera Mode: The camera and transmitter are powered by the cables that power your vehicle's reverse lights.
When you put your vehicle into reverse gear, your reversing lights turn on and power is sent to the camera and the
transmitter, sending out a video signal. The GPS unit then auto-switches over to the camera view.

Bluetooth Mode: Unit will make you totally hand-free when you answer the phone, whenever a call is
coming, no matter you're navigating, listening music or backing up, the unit will switch to Bluetooth mode automatically,
after you hand up, the unit will switch back to the previous mode.

Multi language support: English, French, Spanish and more. Additional European and other Maps available.

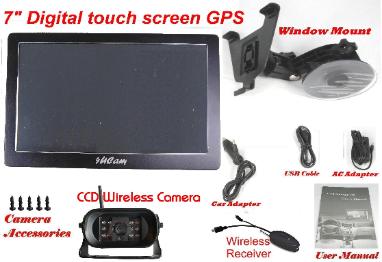

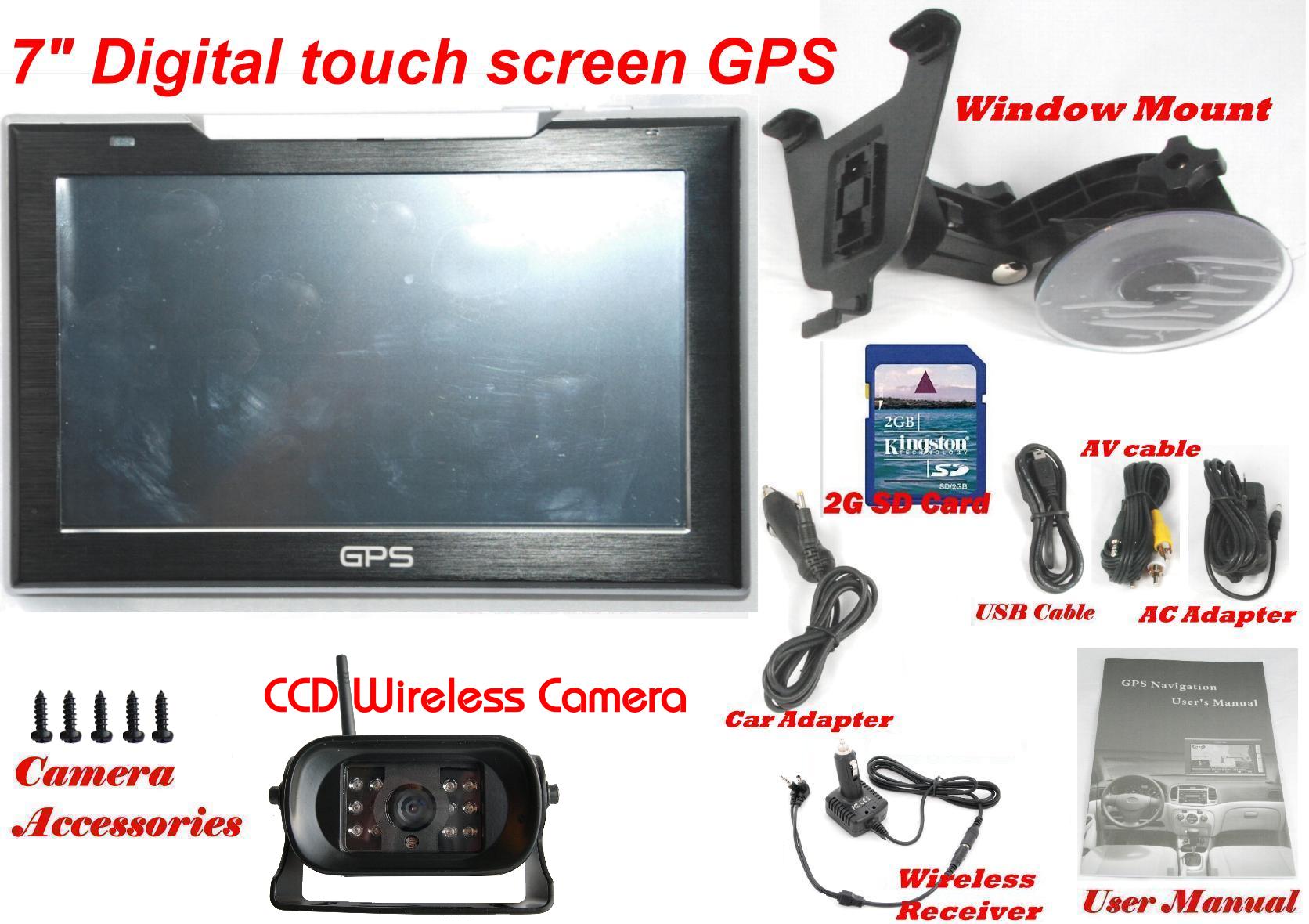

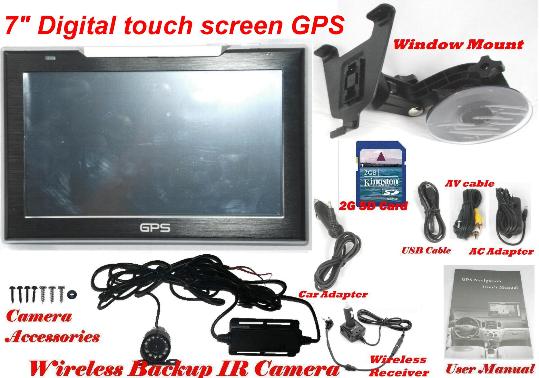

Package contains:
  • 7 GPS Digital LCD Touch Screen
  • 8907T Wireless Backup Camera kids
  • Wireless Receiver
  • GPS software on 4GB Internal memory
  • Secure Window Mount Holder
  • USB cable
  • AC Adapter
  • Cigarette lighter power adapter
  • User Manual
Navigator GPS unit
Camera/Transmitter (8907T)
Screen          7" QVGA TFT Touch Screen
Resolution    800 × 480
Dimensions  7.2” x 4.75” x 0.7”
Screen size   6" x 3.5"
Weight          1 lb
CPU              SAMSUNG S3C2443X-40 530MHz
GPS chip      SiRF Star III
System configuration        Win CE. Net 5.0 Core
Format supported    MP4, DIVX, XVID, WMV, ASF, AVI;
Antenna        Embedded
Memory        128M
NAND FLASH        128M
Capacity of SD card        32M ~ 8G
Capacity of lithium battery        650 mAh
Operating time of lithium battery   1 hours/200hr sleep
Car-borne power supply  +12 car/5V USB interface
Channel     20
Hot Start Time  <2s
Video signal output impedance    1.1±0.2Vpp@75 ohm
Video output polarity        Negative
Modulation type        FM
Maximum power consumption during operation  350 mA
Operating temperature        -10ºC ~ +60ºC /+14ºF ~
Operating humidity (maximum)        <85% RH
Imaging Sensor        CMOS
CMOS Total Pixels        720x480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        80m [Min.]
Dimensions (W x D x H)        44 x 42 x 38(mm)
Weight [About)        65g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH

Wireless Receiver
Dimensions  65×35×15mm
Frequency Stability          100Khz
Frequency        ISM 2400 MHz ~ 2483 MHz
Power Supply           +12V DC
Video Output Level   1.1±0.2Vpp@75 ohm
Receiving sensitivity        -85dBm
Operating temperature        -10ºC ~ +50ºC /+14ºF ~
Operating humidity (maximum)        <85% RH
SiRF Industry Leading GPS Technology:
Reviewers have praised the SiRFstarIII chipset for its superior sensitivity and tracking capabilities. The SiRFstarIII chip
is distinguished from GPS chipsets made by other manufacturers, largely due to its faster Time to First Fix (TTFF) and
its ability to acquire and maintain a signal lock in urban or densely covered forest environments. The 4UCam GPS
incorporates the same chipset used by Navman, TomTom, and Garmin.
We provide up-to-date navigation software with latest full USA and Canada map for your use. The unit has an inbuilt
battery to store your GPS locations and settings.

How does the wireless reversing camera work?
The reversing camera consists of a transmitter and receiver to send a clear video image. The wireless reversing camera
is easily installed onto the rear of your vehicle near your number plate. All wiring can easily be hidden.
The camera uses a 2.4Ghz transmitter, installed in your car boot or similar location, to send a clear signal over distances
up to 150 feet in open space (20-30 feet in car installation). The camera's receiver is connected to the cigarette lighter
power adapter and powers the GPS unit and receives the video signal from the transmitter.
The camera itself and the transmitter are powered by the cables that power your vehicle's reverse lights. When you   put
your vehicle into reverse gear, your reversing lights turn on and power is sent to the camera and the transmitter, sending
out a video signal. The GPS unit can be switched over to the camera view.

Easy-to-use navigation software:
Preloaded software, no installation required. Our system is simple and user-friendly. Let the product do all the
calculations for you. Meanwhile, concentrate on the road ahead of you and enjoy your trip.

It has never been easier to define your navigation the way you like it! Switch from day view to night view. Browse your
route in the classical 2D view, or fly like a bird over the map in the 3D perspective.

Do you want to navigate from point A to point B? Would you prefer a detour from the initial route? What about longer
trips, with many stopovers? Tap a few times and off you go!

GPS Navigation software features:
•        Search by name, category, address, Point of interest, Intersection, Longitude/Latitude
•        Speed and Red Light Camera Alerts
•        Routing options: Recommended, Freeways, Avoid Toll Roads, Shortest Distance/Time, Auto Re-routing
•        Voice Turn-by-Turn guidance
•        Additional features such as 2D Navigation and 3D Navigation, speed detection and travel time
All rights reserved.
Clip-on extension cord between 8907T/8908T cam and the transmitter
10 feet:
$9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter
over 30 feet away. Click picture for detail wire
length information.
Accessories - additional camera and more:
Round IR Cam+accessories
Listed $129.99
Now $69.95
License IR Cam
Listed $129.99
Now $64.95
CCD Cam + Accessories
Listed $199.99
Now $139.95
Key Features:
  • Long signal range 2.4Mhz wireless round backup camera,
    waterproof, day&night backup camera
  • 110 degree horizontal view angle
  • 530 MHz SamSung S3C2443X-40 CPU
  • 800x480 Pixels Digital HD displayer with touched screen
    and key-press operate.
  • 128MB SDRAM & 128M Nand Flash memory
  • Windows CE6.0 operation system
  • Integrated with newest SiRF Star III
  • GPS module, which can receive up to 20 satellite channels
  • Double-track headphone connector,
  • 2Whi-Fi speaker built in
  • Rechargeable lithium battery stand up to 3hrs(550 hours
    in sleeping status)
  • Navigation software and multimedia
  • data store in 2G SD/MMC memory card

Other features:
Music player support: mp3,wav,mid
Movie player support: asf, avi,mp4,wmv
Picture browser support: BMP,JPG,PNG,FIG
eBook reader support: txt

FM Transmitter:
Use your car FM radio to receive the sound from the GPS
device (including guide prompting voice, calls in bluetooth
mode,Mp3/Mp4 music), adjust the volume as you like, enable
driver get every prompting details even in noisy environment.

Audio/Video-Input Connector:
This function make the device as a LCD monitor, can connect
to DVD Player or video game

USA & Canada maps Q3 2016 (optional European maps,
Australia & New Zealand maps)
Text-to-Speech turn-by-ture voice guide, multiple language(US
English/UK English/French/German/Spanish...)
All-in-one cockpit screen show all the traffic information,
including your speed, name of current/next street, distance/time
left to the destination, estimated arriving time, distance left to
the next turn, lane information, road information, POI
SMART ZOOM will automatically adjust zoom in or out and
viewing angle to give you the optimal view in any situation.
Quick setting icon for 2D/3D maps switch, detour, cursor,
day/night mode switch, volume adjustment, 3D building on/off,
vehicle select, track logs record.
Automatic and instant route  re-calculation when a wrong turn is
made Multi-destination of a route available
POIs(Point of Interest) with phone number, including gas
stations, parking, restaurants, ATMs, hospital and more.
6 vehicle modes(car, taxi, bus, emergency, pedestrian, bicycle)
Speed alarm, Day & night mode display
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:

See our customer's installation sample: www.4ucam.com/custom_install.html

Listed $129.99
Now $69.95
Long range
wireless cam
Transmit FM
to car radio
Video player
Music player
Accept AV
* USA Get It Faster!!!
* Add Additional Camera
* International Order!

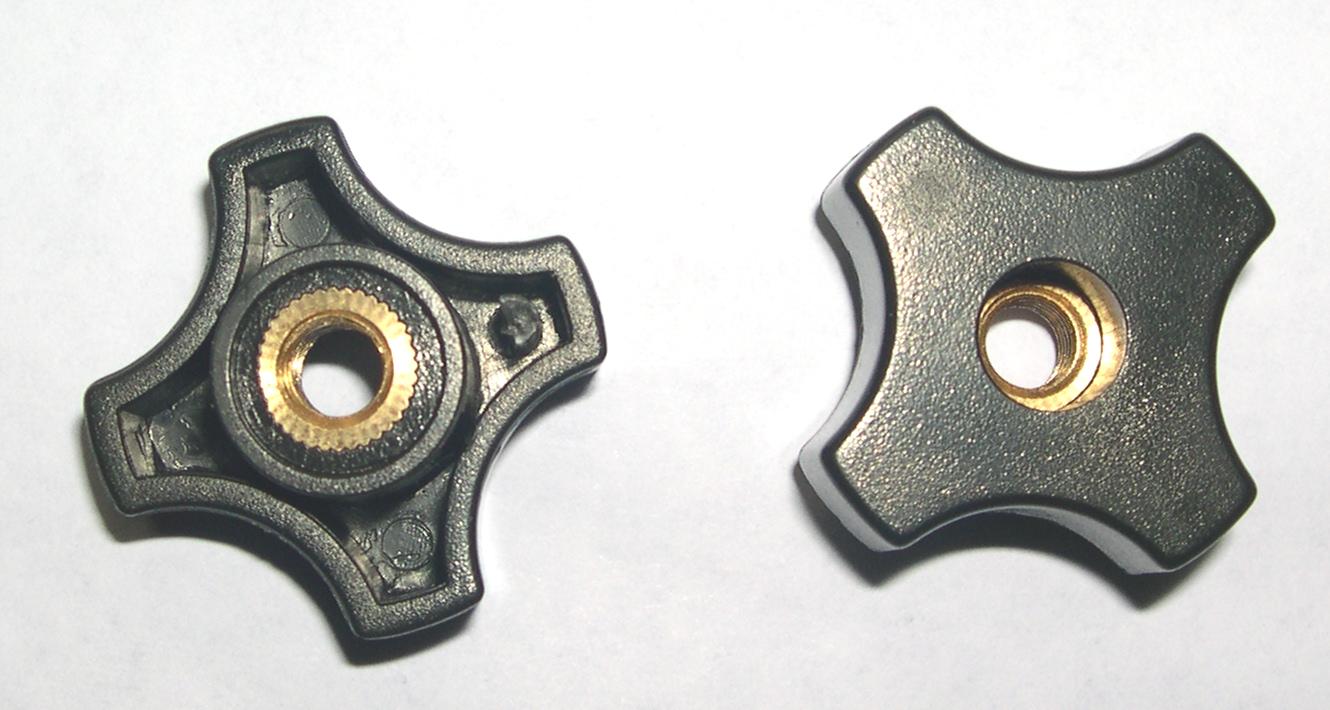

GPS7_nut One unit (not a pair)
Now $4.99
Now $4.99
GPS7_window mount
Now $34.99
GPS7 Car Power Plug
Now $14.99
See GPS+backup cam demo (4.3" model software might be different )
Anti Glare GPS Sun Shade Visor
(click to see more detail)
Item#: 7inch_visor
Now: $14.99
GPS Navigation Mode
Bluetooth Mode
Backup Camera Day View
Backup Camera Night View
7" LCD HD Digital Touch
Screen GPS + DUAL
Wireless CCD Backup
Camera w/Bluetooth System
Item#: GPS7D_9901DUAL
Listed Price: $699.99
Now $349.95
7" LCD HD Digital Touch Screen
GPS + Wireless SONY CCD Camera
w/Bluetooth System
Item#: GPS7D_9901
Listed Price: $399.99
Now $229.95
