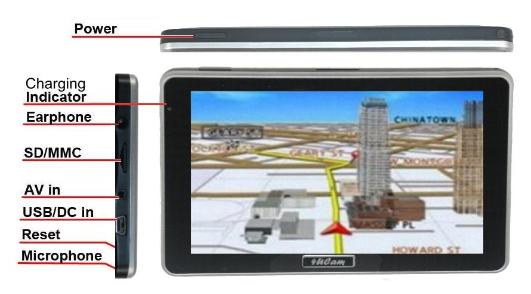

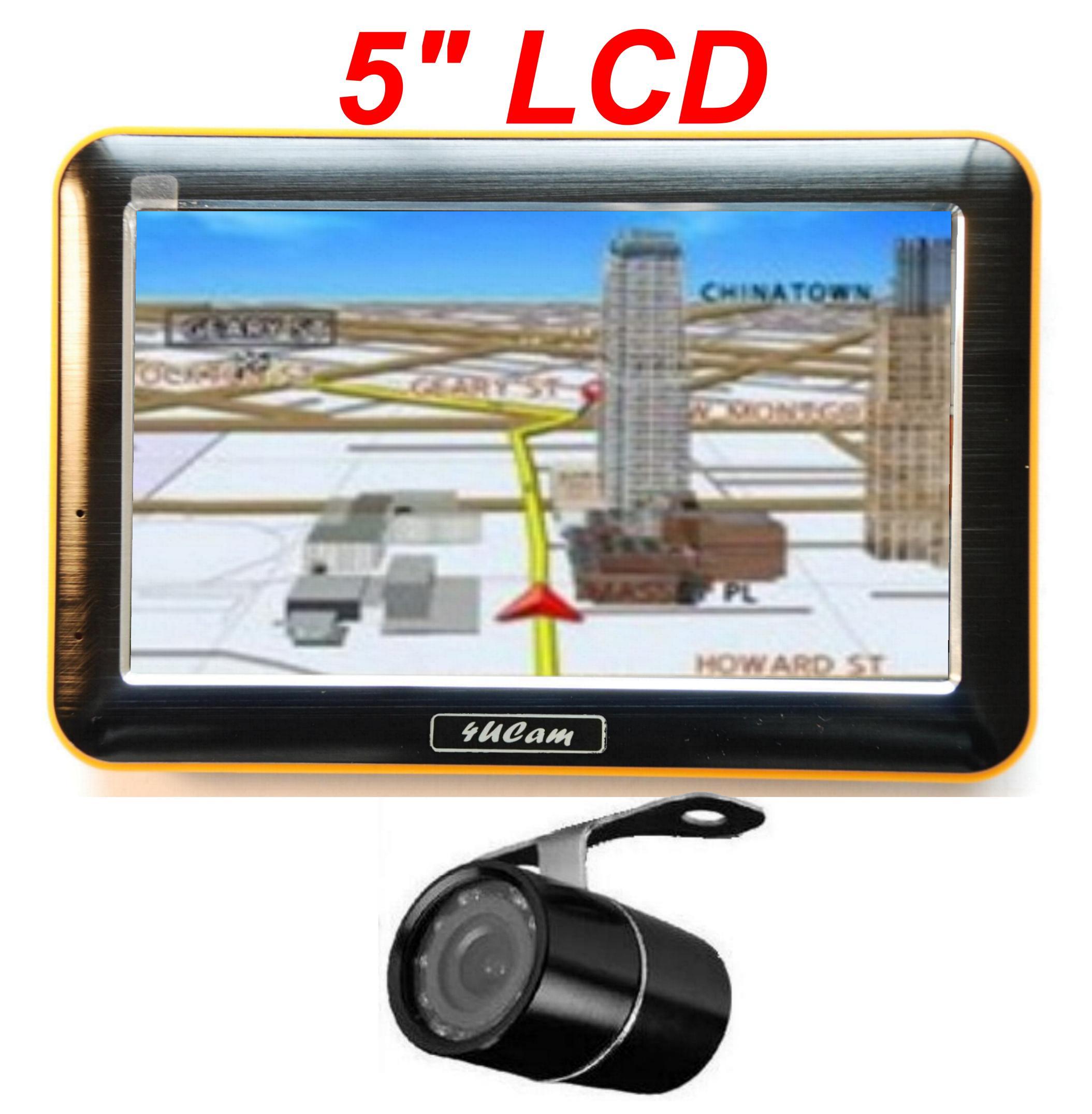

5" LCD Touch Screen GPS +
Wireless Backup Round Camera
w/Bluetooth System
Item#: GPS5_8907
Listed Price: $299.99
Now $169.95
specification
PRODUCT DESCRIPTION:
GPS and Backup IR Camera System with 5” touch screen GPS navigation system and wireless backup camera system in
one unit, plus bluetooth, FM transmit, AV input, video, music, photo and ebook reader.

GPS mode: The unit delivers reliable navigation with pre-loaded 2D or 3D maps for all 50 states and Canada, points of
interest, Text-to-Speech voice guide, and automatically adjusts for day or night viewing. The touch-screen permits easy
input for stored addresses, and lets you plan your route by entering an address, an intersection, a point of interest, or a
city center as a destination, and detours around areas you wish to avoid. "Text-to-Speech" technology clearly
pronounces all street names over the built-in speaker to guide you to your destination without the need to take your eyes
off the road or fumble with a map. A USB cable connects the unit to your PC for updating music and pictures, or charging
the battery. SD card slot, including a 4 GB internal memory, allows the navigator to double as a portable MP3 player or
picture viewer. The unit can be powered by an adapter that plugs into a car cigarette lighter, or for portability, via its built-
in rechargeable Li-Ion battery that provides about 1 hours of operation on an 8-hour charge. The display's wireless
cradle mounts without tools using a suction fastener. Bluetooth function will make you totally hand-free when you answer
the phone.

Backup Camera Mode: The camera and transmitter are powered by the cables that power your vehicle's reverse lights.
When you put your vehicle into reverse gear, your reversing lights turn on and power is sent to the camera and the
transmitter, sending out a video signal, the GPS unit then auto-switches over to the camera view.

Bluetooth Mode: Unit will make you totally hand-free when you answer the phone, whenever a call is
coming, no matter you're navigating, listening music or backing up, the unit will switch to Bluetooth mode automatically,
after you hand up, the unit will switch back to the previous mode.

Multi language support: English, French, Spanish and more. Additional European and other Maps available.
features

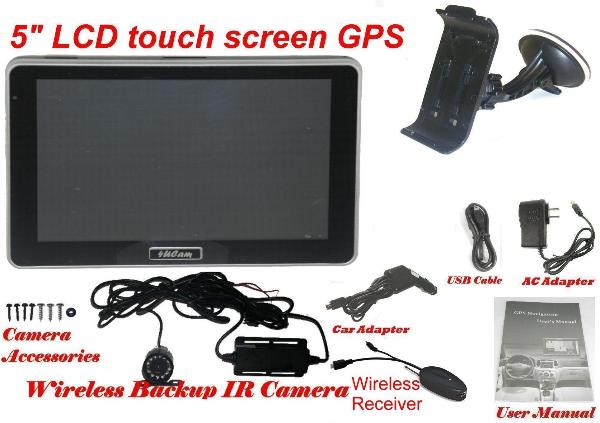

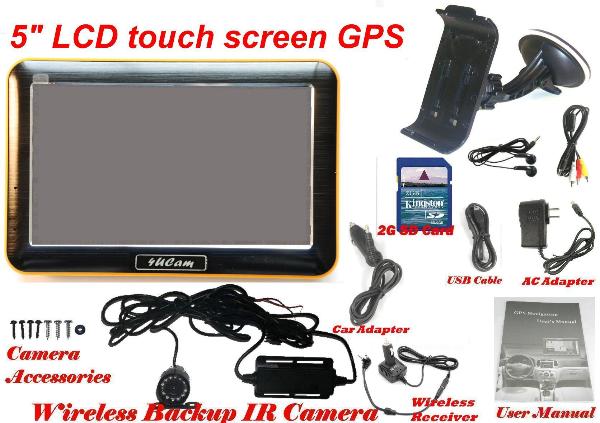

Package contains:
  • 5 GPS LCD Touch Screen
  • 8907T Wireless Backup Camera kids
  • Wireless Receiver
  • GPS software on 4GB Internal Memory
  • Secure Window Mount Holder
  • USB cable
  • AC Adapter
  • Cigarette lighter power adapter
  • User Manual
contains
Navigator GPS unit
Camera/Transmitter (8907T)
Screen          5" TFT Touch Screen
Resolution    800 × 480
Dimensions  5 5/16"(W) x 3 1/2"(H) x 1/2"(D))
Screen size   4 3/8" x 2 1/2"
Weight          7.0 oz
CPU              SIRFAtlas4 530MHz
GPS chip      SiRF Star III
System configuration        Win CE. Net 5.0 Core
Format supported    MP4, DIVX, XVID, WMV, ASF, AVI;
WMA9, MP3, WAV, JPG, GIF, BMP, TXT
Antenna        Embedded
Memory        128M
NAND FLASH        64M
Capacity of SD card        32M ~ 32G
Capacity of lithium battery        450 mAh
Operating time of lithium battery   1 hours/100hr sleep
Car-borne power supply  +12 car/5V USB interface
Channel     20
Hot Start Time  <2s
Video signal output impedance    1.1±0.2Vpp@75 ohm
Video output polarity        Negative
Modulation type        FM
Maximum power consumption during operation  250 mA
Operating temperature        -10ºC ~ +60ºC /+14ºF ~
+132ºF
Operating humidity (maximum)        <85% RH
Imaging Sensor        CMOS
CMOS Total Pixels        720x480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        80m [Min.]
Dimensions (W x D x H)        44 x 42 x 38(mm)
Weight [About)        65g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH

Wireless Receiver
Dimensions  65×35×15mm
Frequency Stability          100Khz
Frequency        ISM 2400 MHz ~ 2483 MHz
Power Supply           +12V DC
Video Output Level   1.1±0.2Vpp@75 ohm
Receiving sensitivity        -85dBm
Operating temperature        -10ºC ~ +50ºC /+14ºF ~
+122ºF
Operating humidity (maximum)        <85% RH
All rights reserved.

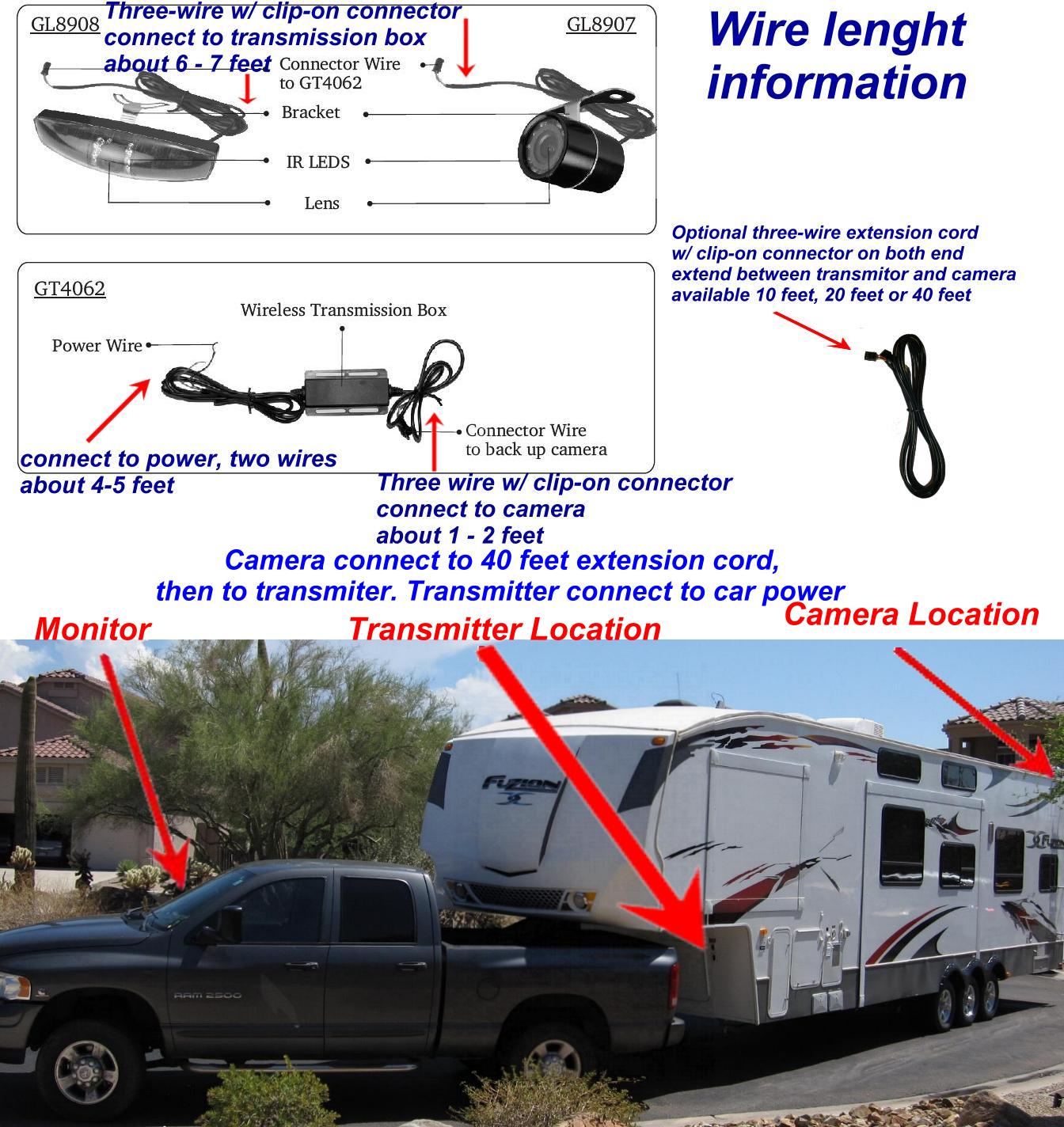

Clip-on extension cord between 8907T/8908T cam and the transmitter
10 feet:
$9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter
over 30 feet away. Click picture for detail wire
length information.
accessories
Accessories - additional camera and more:
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Key Features:
  • Long signal range 2.4Mhz wireless round backup camera,
    waterproof, day&night IR backup camera
  • 110 degree horizontal view angle
  • SIRFAtlas530MHZ CPU
  • 800x480 Pixels displayer with touched screen and key-
    press operate.
  • 128MB SDRAM & 128M Nand Flash memory
  • Windows CE5.0 operation system
  • Integrated with newest SiRF Star III
  • GPS module, which can receive up to 20 satellite channels
  • Double-track headphone connector,
  • 2Whi-Fi speaker built in
  • Rechargeable lithium battery stand up to 3hrs(550 hours
    in sleeping status)
  • Navigation software and multimedia
  • data store in 4Gb internal memory

Other features:
Music player support: mp3,wav,mid
Movie player support: asf, avi,mp4,wmv
Picture browser support: BMP,JPG,PNG,FIG
eBook reader support: txt

FM Transmitter:
Use your car FM radio to receive the sound from the GPS
device (including guide prompting voice, calls in bluetooth
mode,Mp3/Mp4 music), adjust the volume as you like, enable
driver get every prompting details even in noisy environment.

Audio/Video-Input Connector:
This function make the device as a LCD monitor, can connect
to DVD Player or video game

Software
USA & Canada maps Q3 2015 (optional European maps,
Australia & New Zealand maps)
Text-to-Speech turn-by-ture voice guide, multiple language(US
English/UK English/French/German/Spanish...)
All-in-one cockpit screen show all the traffic information,
including your speed, name of current/next street, distance/time
left to the destination, estimated arriving time, distance left to
the next turn, lane information, road information, POI
information...
SMART ZOOM will automatically adjust zoom in or out and
viewing angle to give you the optimal view in any situation.
Quick setting icon for 2D/3D maps switch, detour, cursor,
day/night mode switch, volume adjustment, 3D building on/off,
vehicle select, track logs record.
Automatic and instant route  re-calculation when a wrong turn is
made Multi-destination of a route available
POIs(Point of Interest) with phone number, including gas
stations, parking, restaurants, ATMs, hospital and more.
6 vehicle modes(car, taxi, bus, emergency, pedestrian, bicycle)
Speed alarm, Day & night mode display
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html

See our customer's installation sample: www.4ucam.com/custom_install.html

Specifications:
GPS7_receiver
Item#:GPS5_receiver
Listed $129.99
Now $79.95

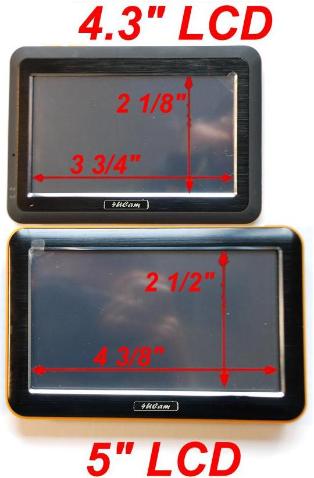

5" screen give you better view and is more easier to operate on the screen.
(Unit size: 5 5/16"(W) x 3 1/2"(H) x 1/2"(D))
GPS
Navigation
Long range
wireless cam
Hand-free
Bluetooth
Transmit FM
to car radio
Video player
Music player
Accept AV
input
Browser
eBook
reader
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
GPS5_LCD only w/o accessories
Item#:GPS5_LCD
Now $129.95
GPS5 LCD plus accessories
Item#:GPS5_SET
Now $139.95
GPS 5" suction cup mount kit
Item#:GPS5_mount_kit
Now $34.95
Cigarette lighter power adapter
for 4-5" GPS
Item#:GPS45_cig_adapter
Now $14.95

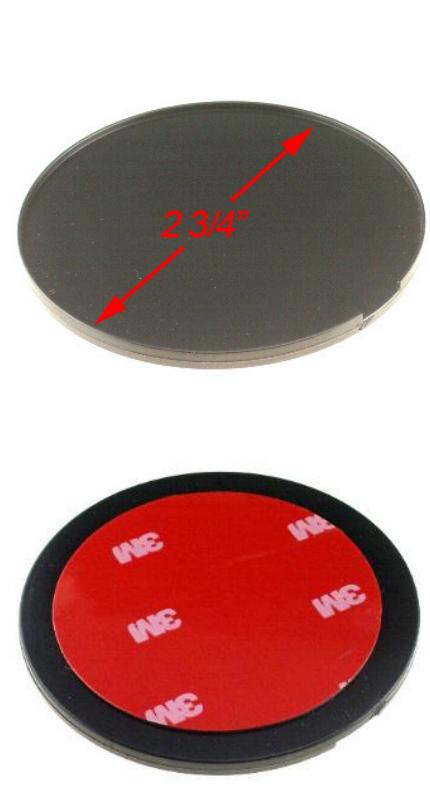

Item#:dash_mount_base
Now $16.95
See GPS+backup cam demo (4.3" model software might be different )
5" LCD Touch Screen GPS +
Wireless Sony CCD Camera
w/Bluetooth System
Item#: GPS5_9901
Listed Price: $399.99
Now $219.95
Anti Glare GPS Sun Shade Visor
(click to see more detail)
Item#: 5inch_visor
Now: $12.99
GPS Navigation Mode
Bluetooth Mode
Backup Camera Day View
Backup Camera Night View
