License plate camera and wifi transmitter wiring instruction

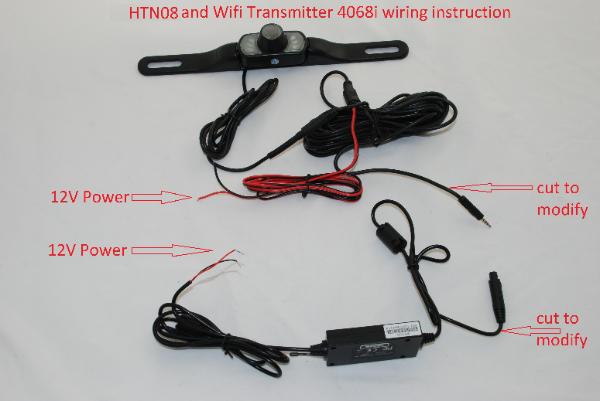

-- wiring up the HTN08 camera with wifi transmitter
-- wiring up the HTN08 camera with wifi transmitter
If you want to connect to other camera, or see other video output on iPhone/Android screen, you can use this wifi Transmitter. Please
note it will require you to cut the 4-pin connector, and manually splice the wire to connect your video source into the transmitter's video
input wire (Yellow wire only).
4068i takes 12V power input, and output 3.3V to camera and take in camera video input (0.9-1.3v p-p 75ohm). Then convert video to
WIFI signal to iPhone/Android.
If you cut the wire, it will void any warranty. So suggest to get a full set, test to verify before your modification. Once you finish
the modification, you can ship the camera only back for $30 refund.
note it will require you to cut the 4-pin connector, and manually splice the wire to connect your video source into the transmitter's video
input wire (Yellow wire only).
4068i takes 12V power input, and output 3.3V to camera and take in camera video input (0.9-1.3v p-p 75ohm). Then convert video to
WIFI signal to iPhone/Android.
If you cut the wire, it will void any warranty. So suggest to get a full set, test to verify before your modification. Once you finish
the modification, you can ship the camera only back for $30 refund.
