Full Color
Indoor
WIFI Mercedes Sprinter
(2007-2015) Backup camera
Item#: Sprinter_WiFi
Listed Price: $269.99
SHIP Now $189.95
Day and Night
specification
PRODUCT DESCRIPTION:

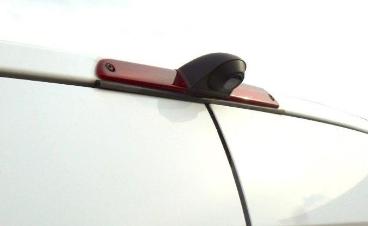

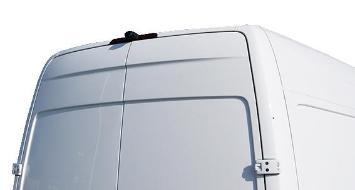

This Wifi-SPRINTER-CAM backup camera is used on the Sprinter van (2007-2015) (see full list of Compatible Sprinter models) as
factory replacement brake light camera. Unlike some other rear cameras like those that mount to the left of the license plate, the wifi-
SPRINTER-CAM sits dead center, giving you optimum coverage. This replacement camera offers the driver safety and confidence in
backing up, while maintaining a clean factory look.The Mercedes Sprinter is similar in design to the Dodge Sprinter, and Freightliner,
which also are compatible with this camera. Now you can see the WIFI backup camera on your iPhone, iPad or any Android phone.
Product support all iOS and Android device. Just download the free APP and you will see the WIFI backup camera on your device,
including iPhone, iPad, Samsung and other smart phone device.

  • WIFI Back-Up Camera shows video on your smart phone allows you to see what is behind you before you back up
  • Comes complete with everything you need to install. (No router, or phone company signal require)
  • Avoid accidents and injuries in your Sprinter

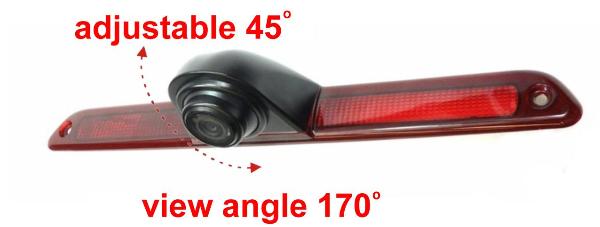

  • Wifi-SPRINTER-CAM provides 170 degree wide angle viewing, with Night Vision.
  • Installation is easy, just connect reverse power to the camera.
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
Camera (4UCS-003)
WiFi Transmitter (4068i)
Imaging Sensor        CCD
Total Pixels        976x494 (PAL/NTSC)
Resolution (TV Line): 700TV Line
Minimum Illumination        0 Lux (IR Night Vision)
Video output   1.0vp-p75Ω
Night Vision Range       35 feet
Operating voltage: DC9-24±15%
Consumption Current (Max.)        150mA
View angle:170° Horizontal angle:120°
Unobstructed Effective Range        10m [Min.]
Operating Temperature        -20°C/+75°C
Operating Humidity        95% RH
Waterproof Index: Ip68
Intermediate Frequency        2400-2483.5MHz
Demodulation Type        WIFI 802.11b;802.11g/n
Antenna        50 ohm SMA
EnCryption Mode       WPA2
Power Supply        + 12 V DC
Consumption Current (Max.)        150mA(MAX)
Unobstructed Effective Range        10M(Min.)
Video latency    0.7 second
Wifi Boot up time 1.7second
Dimensions (W x D x H)        71 x 35.5 x 12.3mm
Weight [About)        60 g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH

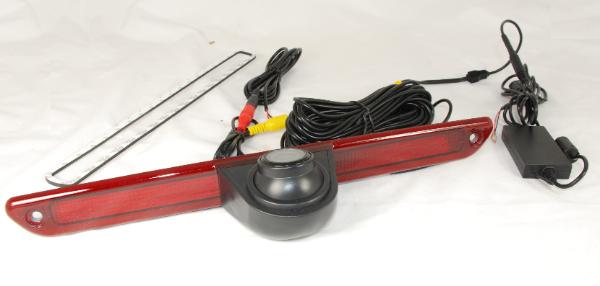

Package contains:
  • Sprinter IR Back Up Camera
  • WiFi transmitter
  • WiFi APP link for download
  • User Manual
contains
All rights reserved.
accessories
Accessories :
See Live Demo of this WiFi Camera
on iPhone, day time, night time, and
long range signal demo.

Video is the live demo of WIFI camera on iPhone.
Camera (8902iT) was installed on the license
plate location on a Toyota Sienna Van.
Actual result might various depend on the camera
location, and blockage between the camera and
your smart phone.
[If you want to download the Free App,
IN APPLE STORE: search for "RFK WIFI"]
Car Cigarette Lighter Cables for WiFi camera
Item#:wifi_car_adapter
$12.99
All rights reserved.
Day Time and Night Time view, and sun-blocking feature help to see better:
4 Pin extension cord between 8909T camera and the WiF itransmitter
10 feet:
$12.95                                  20 feet: $22.95                              40 feet: $38.95
Specifications:
You can use this car cigarette lighter adapter to provide
the power for the WiFi camera and transmitter, instead of
connect (hardwired) to car 12V power.
110V-240V A/C adapter for 8902WiFi
Item#:8902_AC
$14.99
You can get a A/C adapter to connect to power WiFi
camera, so you can see the camera on your small
phone anywhere in your home, or where there is A/C
power available.

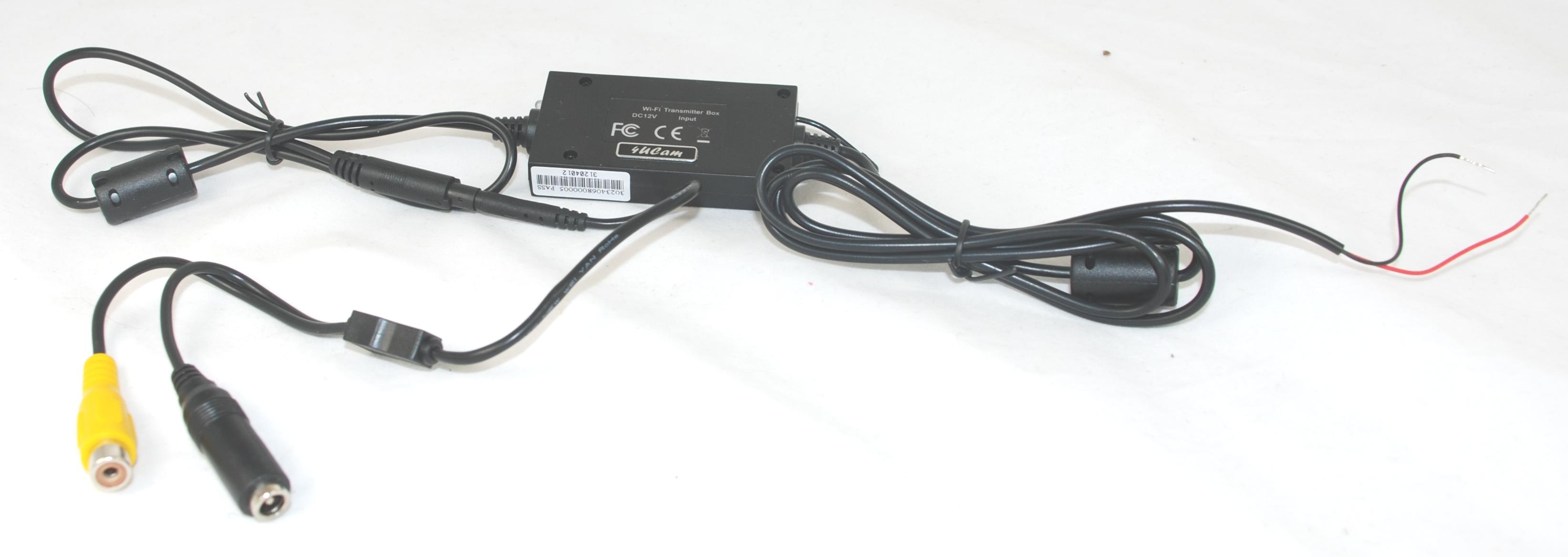

40681i WiFi transmitter w/ video adapter
Item#:4068i
$79.99
video output on iPhone/Android screen, you can use this
wifi Transmitter.
4068i takes 12V power input, and output 12V to camera
and take in camera video input (0.9-1.3v p-p 75ohm).
Then convert video to WIFI signal to  iPhone/Android.
We only guarranty our camera will work with our wifi
transmitter.
Please also see one of our
customers' product review posted on
Youtube. If you want the smaller
camera as show on the video, please
see link below.
SMALLER CAMERA AS ON VIDEO.
Video input Cable for WiFi transmitter
Item#:wifi_video_adapter
$4.99
Two Cameras toggle switch
Item#:two_cam_toggle
$12.99
Please note, it will require you to splice the
wire of two cameras, and solder the wires
onto this three way toggle switch. Instruction
will be provided depend on your application.
Pre-wired Two Cameras
toggle switch
Item#:pre-wired_toggle
$29.99
We will pre-wired the toggle switch with
camera plugs, so you can just plug the
cameras onto the switch plugs. No wire splice
and solder are required. Instruction will be
provided depend on your application.
If you wish to have two cameras, and share the same WIFI transmitter, you can get the toggle switch below,
and add one additional camera onto the WIFI transmitter.
Click picture to see detail wiring lenght

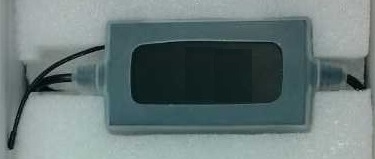

WiFi transmitter weatherproof case
Item#:wifi_case
$4.99
More Customer Reviews:
http://www.m3post.com/forums/showthread.php?t=1048641
http://www.wanderlodgeownersgroup.com/forums/showthread.php?p=272399#post272399
http://www.youtube.com/watch?v=5ygpdnHi5K4
https://www.youtube.com/watch?v=kZg1b9n6cF8
DIY - See video below on how to install backup camera on Sprinter.
https://www.youtube.com/watch?v=5P646PXPmRk

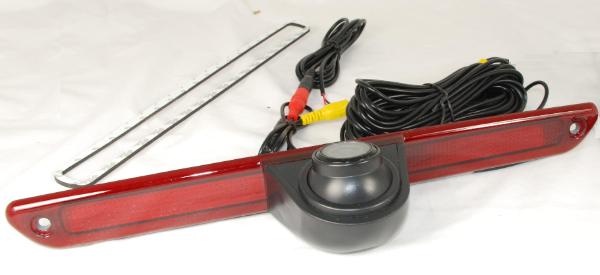

Sprinter Backup camera only
Item#: Sprinter_Cam
SHIP Now $149.95
If you want to use your own monitor,
you can get this camera only, with 30
foot RCA video output cable.
