Wireless Color Car Backup Camera
and Receiver for GPS System
Item#: 8909B
Listed Price: $139.99
Now $99.95
Full Color
Day and Night

If you already have a video display in you car console with A/V input, why add another monitor if you can utilize it.
This wireless backup camera receiver set is designed for connecting to an existing video display unit with A/V inputs. i.e.
GPS monitor, DVD monitor, or laptop with an A/V input card. It will enable your monitor to function as Back-up Camera
(If you want a "GPS+Backup Camera System" in one unit, please see 8909PC or 8907PC)

  • Wireless Back-Up Camera System allows you to see what is behind you before you back up
  • 2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install
  • Build-in 10 high-powered IR LED night vision helping to see better at night (see sample picture below)
  • Mirror image camera designed for better backup viewing
  • Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
  • 4-Channel receiver can view up to 4 cameras
  • Night Vision Camera mounts to your existing license plate holder and provides wide angle viewing
  • Avoid accidents and injuries in your Car, Van, SUV, RV, or delivery vehicle
  • Comes complete with everything you need to install
  • For use with 12V DC electrical systems
  • Installation is easy with the elimination of wires from camera to monitor
  • Easy to read English installation manual

Camera/Transmitter (8909T)
Receiver (704)
Imaging Sensor        CMOS
CMOS Total Pixels        656x492 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        220mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        70m [Min.]
Dimensions (W x D x H)        215 x 33 x 33(mm)
Weight [About)        88g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level 1 V +/- 0.2V~ @75ohm,S/N>38dB
Power Supply        + 12 V DC
Consumption Current (Max.)        250mA
Unobstructed Effective Range        50(Min.)
Dimensions (W x D x H)        116 x 81 x 21mm
Weight (About)        160 g
Operating Temperature     -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH

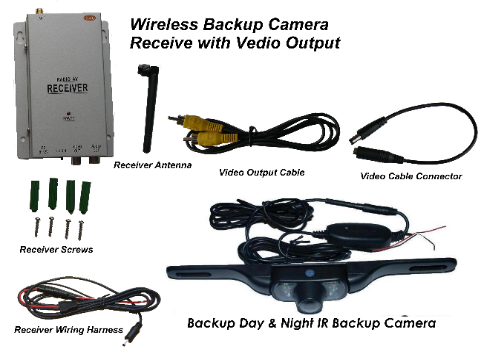

Package contains:
  • 8909T Back Up Camera
  • Wireless Receiver
  • Antenna for Receiver
  • Video Cable
  • Receiver Power Wiring Harness
  • Installation accessories
Night Vision feature help to see better at night
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
IR camera Night view
Camera w/o IR view
Sun Blocking Feature
All rights reserved.
Accessories - additional camera and more:
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Listed $129.99
Now $69.95
License IR Cam
Listed $129.99
Now $64.95
CCD Cam + Accessories
Listed $199.99
Now $139.95
See Live Demo of 8909AZ

Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Ultra IR Car Cam Video/Audio
Listed $109.99
Now $84.95
Magnet based rechargeable outdoor camera
Listed $89.99
Now $64.95
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
See our customer's installation samples: www.4ucam.com/custom_install.html
<suggest use 8907T when over 20 ft>
Wireless receiver with
video output
Extended 2m Antenna for receiver
Listed $29.99
Now $24.95
Car wire Harness for B_receiver
Car Cigarette Cables for B_receiver
Female RCA to Male
3.5mm connector
Female RCA to Male
2.5mm connector
Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
