Digital Wireless Security Camera
and 7" screen LCD
Item#: 814HD
Camera Options
features
Package contains:
  • one 4CH Digital Wireless 7" LCD
  • (1 to 4 depend on your selection) Digital
    Wireless cameras
  • 10ft power supply (for all cameras and monitor)
  • 1M Network cableptional)
  • A/C adapters for monitor and camera
contains
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
accessories
Accessories - additional camera and more:
A/C adapter for HD Camera
Item#:814Cam_AC
$16.99
Extended 2m Antenna:
-for camera or monitor
Item#:9901A
Listed $29.99
Now $24.95
Antenna Extension cord: for camera or monitor
item#: antenna_cord_10ft  $14.95


antenna_cord_20ft $24.95


antenna_cord_40ft
$44.95
If your camera is behind too many walls and too far away from the monitor, bigger
antenna and antenna extension cord are suggested to boost the signal straight.
7" Quad view monitor +
Single Camera Set $159.91
Two Camera Set $199.92
Three Camera Set $259.93
Four Camera Set $299.94
HD Digital Wireless Security Camera System Indoor Outdoor Camera 7 Inch HD Split  Screen LCD Monitor
* Package shows four cameras set. Number of
cameras on the package depend on your selection.
32GB SD Card  $19.95
Digital HD Wireless Cam
Item#:814T
$99.95
Item#:HD Camera_antenna
Now $9.95
PRODUCT DESCRIPTION:
This 4UCam security system has built-in 960P wirless receiver that connects all cameras. Plug them into power, they start to
stream the video feed. It’s that simple. The built-in digital receiver also means the HD cameras consume 0 bit of your home
router bandwidth; This system works even without any Internet connection or network router (when not internet, can not view
the video via smart phone)

  • Portable 7" screen monitor, use up to 32GB SD card (SD Card not included) video recorder, support multiple
    recording modes: manual, schedule, and motion activated. Supports synchronous video recording function. Supports
    up to 1TB USB port hard drive (portable HDD hard drive not included)
  • Supports up to 4 cameras for 24 hours / 7 days uninterrupted coverage recording, has a variety of display modes:
    manual display, circular display, 4-screen display
  • Camera with metal casing for mounting, IP66 Weatherproof outdoor features 3pcs IR Leds and 3.6mm fix lens
    provides more clear & crystal Image and capture more details in a larger area & view angle is 75 degree and night
    vision range up to 65ft(20m) with color image in the daytime and black and white color in the night.
  • Easy to set up Plug and Play. Just power on the LCD and camera, and the video will show up. Easy live view & remote
    playback on your smart phone from anywhere anytime; receive alerts and mobile notifications when motion is detected
  • Free App for remote view and control ,snapshot, recording, playback, motion alerts on iPhone, iPad, and Android
    devices with WiFi or 2G/3G/4G network anytime anywhere! no exposed lines, no complex configure any more! Just
    connect ethernet cable between LCD and router. Download App onto smart phone (from Android Google Play or
    Apple APP Store), scan the code on the LCD, then view camera on smartphone.

HD resolution
Clearer than 960P. 960*1080 Image Sensor Makes Clear and Stunning Picture and Video.  All Cameras are Equipped with
Infrared Night Vision. up to 100ft away in Pitch-black Darkness.

Long range digital signal
Digital wireless signal reach up to 600 feet in unobstructed distance. One wall up to 300 ft, two walls up to 150 ft, depend on
the material of the wall. Secured video signal 100% not interference, not statics.

IP66 Weatherproof Cameras
IP66 Super Waterproof Grade and Dustproof, Durable Outdoor Weatherproof Casing no Matter Windy or Raining

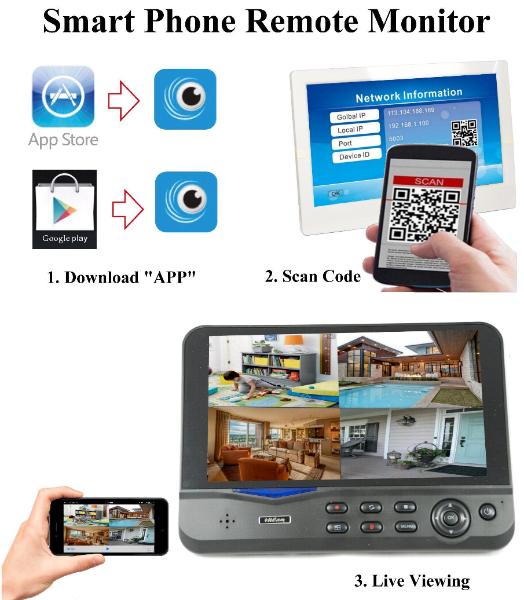

Easy Remote Access Anywhere Anytime
You can View Video Remotely Anywhere with your Phone, pad, and Android smart phone once Cameras are Set up. The
App Lets you Group Multiple Systems to View up to 4 Cameras Simultaneously Anywhere Anytime. It will require LCD
connect onto internet router for remote viewing.

Record 24/7 on up to 32GB SD card (SD Card not included) or up to 1TB portable HDD (HDD not included)
The system can record 4 cameras 24x7 for up to two weeks on 1TB hard drive. Due to the wireless feature, the record along
with the LCD can be hidden and reserved even cameras are vandalized.
The LCD supports multiple recording modes, including manual recording, continuous recording, time scheduled recording,
and motion detection recording. Receive alerts and mobile notifications when motion is detected.

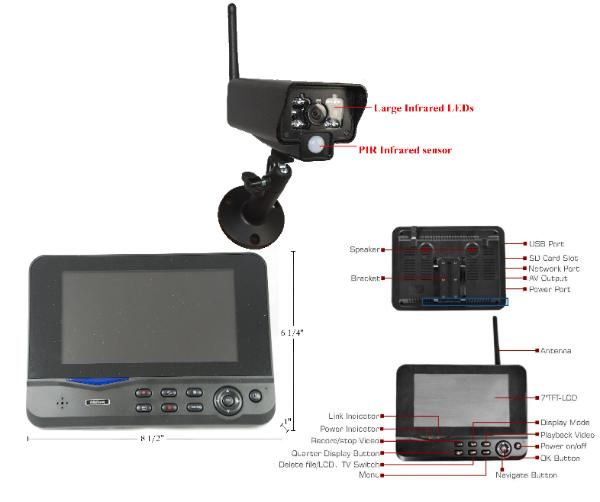

HD Camera (814TD)
Monitor/Receiver
Imaging Sensor        CCD
Total Pixels        1080 x 960
Minimum Illumination        0 Lux
Transmission Frequency        ISM Digital
Transmission Power        20mW/CE; 4mW/FCC
Modulation Type        FM
IR Night Range           60 ft
Bandwidth        18 MHz
Power Supply        + 12VDC (110V adapter)
Consumption Current (Max.)         1A
Horizontal View Angle        130 Degrees
Unobstructed Effective Range        600ft [Min.]
Dimensions (W x D x H)(mm) 132x64x57(excluding bracket)
Weight [About)        300g
Operating Temperature        -20°C/+60°C or+4°F/140°F
Operating Humidity        85% RH
LCD Resolution               800 x 480
Receiving Frequency        ISM Digital
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
SD Card     supports up to 128GB (SD card not included)
Hard Disk   support up to 3TB (Disk not included)
Video Frame Rate       30fps (Max.)
Video format           .AVI
Date Output          USB 2.0
Power Supply        + 12V DC
Consumption Current (Max.)        2A
Unobstructed Effective Range        1000ft(Min.)
Dimensions (W x D x H)        214 x 26 x 157mm
Weight [About)        510 g (excluding bracket)
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
Item#:HD Monitor_antenna
Now $19.95
