Pan Tilt Internet IP Network
Camera 2-Way Audio
Item#: N601c
Listed Price: $319.99  Now: $139.95
features
specification
contains
FEATURES:
•
Remotely monitor your home, business, office, vacation property, construction site or any facility over LAN, Intranet
or Internet.
No PC required.
•
Pan 130° horizontally (view range 180°) and Tilt 70° vertically (view range 108°), control remotely.
•
Two-Way Audio feature, allow to talk to camera site remotely, by adding powered speaker (speaker not included)
•        Alarm function with
motion detection - if tripped, motion detection will send out an e-mail alert with a JPEG image
of the incident.
•        Wired Ethernet 10 BASE-T, 100 BASE-TX
•        Highly efficient Motion JPEG video streaming at up to 30 Frames-Per-Second,
4x digital zoom.
•        Compact, lightweight, support
desktop, wall and ceiling mount, easy to install
•        One year manufactory warranty
* USA Get It Faster!!!

* International Order!
PRODUCT DESCRIPTION:
This ultimate network dome camera will keep an eye on your home, business or school while you're away,
allowing you to remotely access its video feed with any standard web browser - anytime, anywhere.

N601c is a fully-featured surveillance system that connects to an Ethernet to provide remote high-quality video
and audio.

The N601c Security Camera has a pan, tilt, and digital zoom function that can be controlled from the Web
interface. Pan the security camera up to 130° horizontally and tilt it up to 70° vertically. The pan/tilt speed can
be adjusted to your preference. 4x digital zoom lets you remotely zoom in on all the action for close-up viewing.

Two-Way audio feature enable you remotely talk to anyone at your camera site, by adding a powered speaker
to the N601C. (optional speaker not included)

Everything needed to get started is included with the N601c IP Network Camera. Simple installation
procedures, along with the built-in Web-based interface offer easy integration into your network environment.
Powerful surveillance software is included to enhance the monitoring and security management of the N601c.
You can record high quality video to your hard drive using MPEG4 compression, and set up motion detection
to trigger automatic recording and e-mail alerts. The N601c IP Network Camera is a cost-effective and versatile
security solution for your home or business.
Technical Specifications:
Camera
    Network

Imaging Sensor
1/4-inch CMOS
  Image Compression
MEPG-4

Total Pixels
310,000
  Max. Image Resolution
640x480

View Angle
51°(H); 38.9°(V)
  Max. Frame Rate
30ftps(640x480)

Remote Pan Angle
-65°~+65°
  Simultaneous Viewers
8

Remote Tilt Angle
-60°~+10°
  Network Connection
Ethernet(10M/100M)

Max Pan/Tilt Speed
P:50°/s; T:50°/s

Preset Locations
8
  System Requirement

Focal Length
f=3.7mm
  Operation System
Windows XP/ 2000

Min. Illumination
1.0Lux
  Processor
Intel P3 1GHz or higher

      Memory
256M (Min)

Audio
    Web Brower
IE 5.5 or later

Audio Compression
G.276(40,32,24,16Kbps)
  NOTE:
Not compatible w/ MAC/Linux

Built-in Microphone
Electric Condenser Mic.
  General

External Mic. Jack
Mini-Jack, 3V DC, 2.2K
  Power Requirements
5V DC

Audio Line Output
Mini-Jack(Stereo), 1Vrms
  Power Consumption
7.5W

      Operating Temperature
+14°F ~ +122°F

      Storage Temperature
-40°F ~ +185°F

      Operating Humidity
0.85

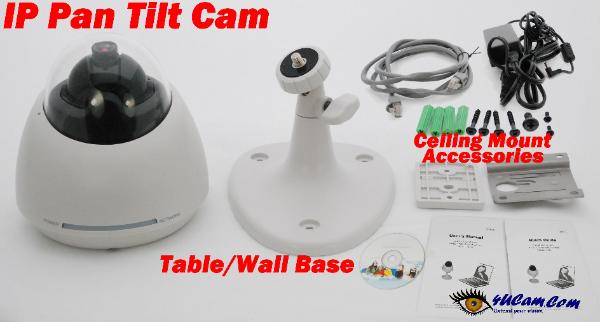

Package contains:
  • One network camera
  • Camera Bracket
  • Adapter Cable
  • Network Cable
  • CDROM
  • User's manual
Diagrammatic:
Test Drive
Here is the actual user interface and screen shot of this IP Cam
Detected the change, alarm is
triggered, picture captured and
email you.

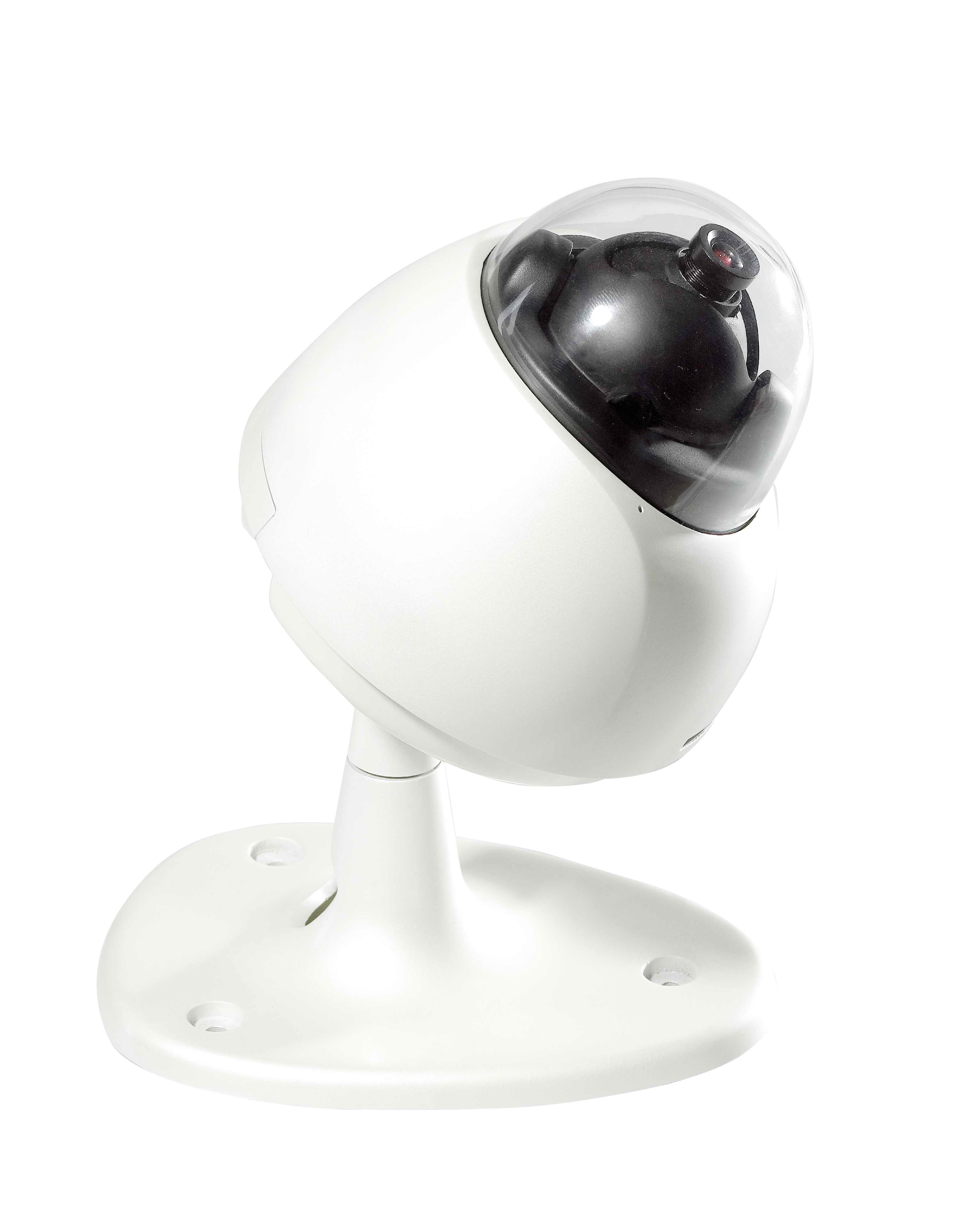

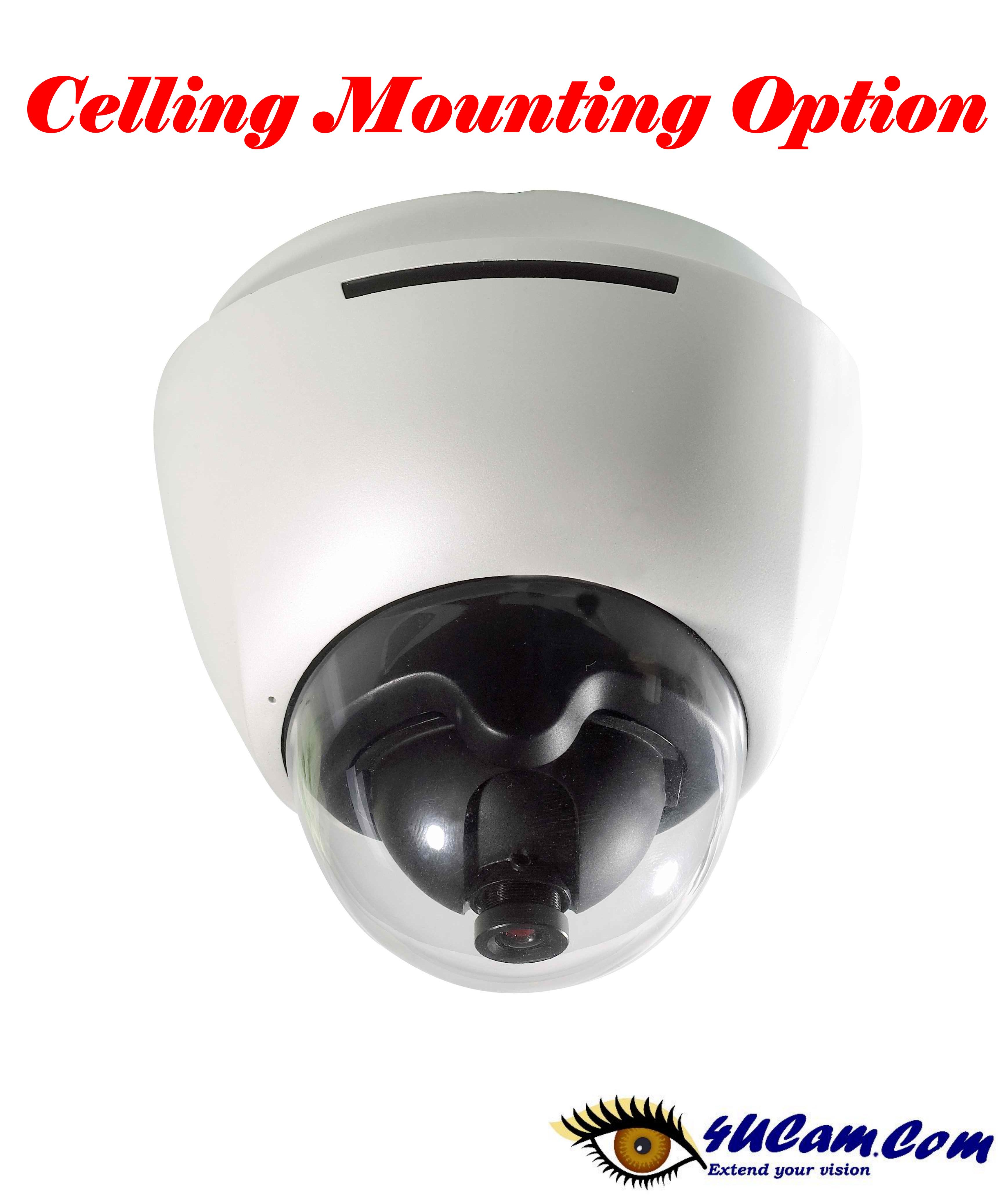

Ceiling mounting, wall mounting, or desktop

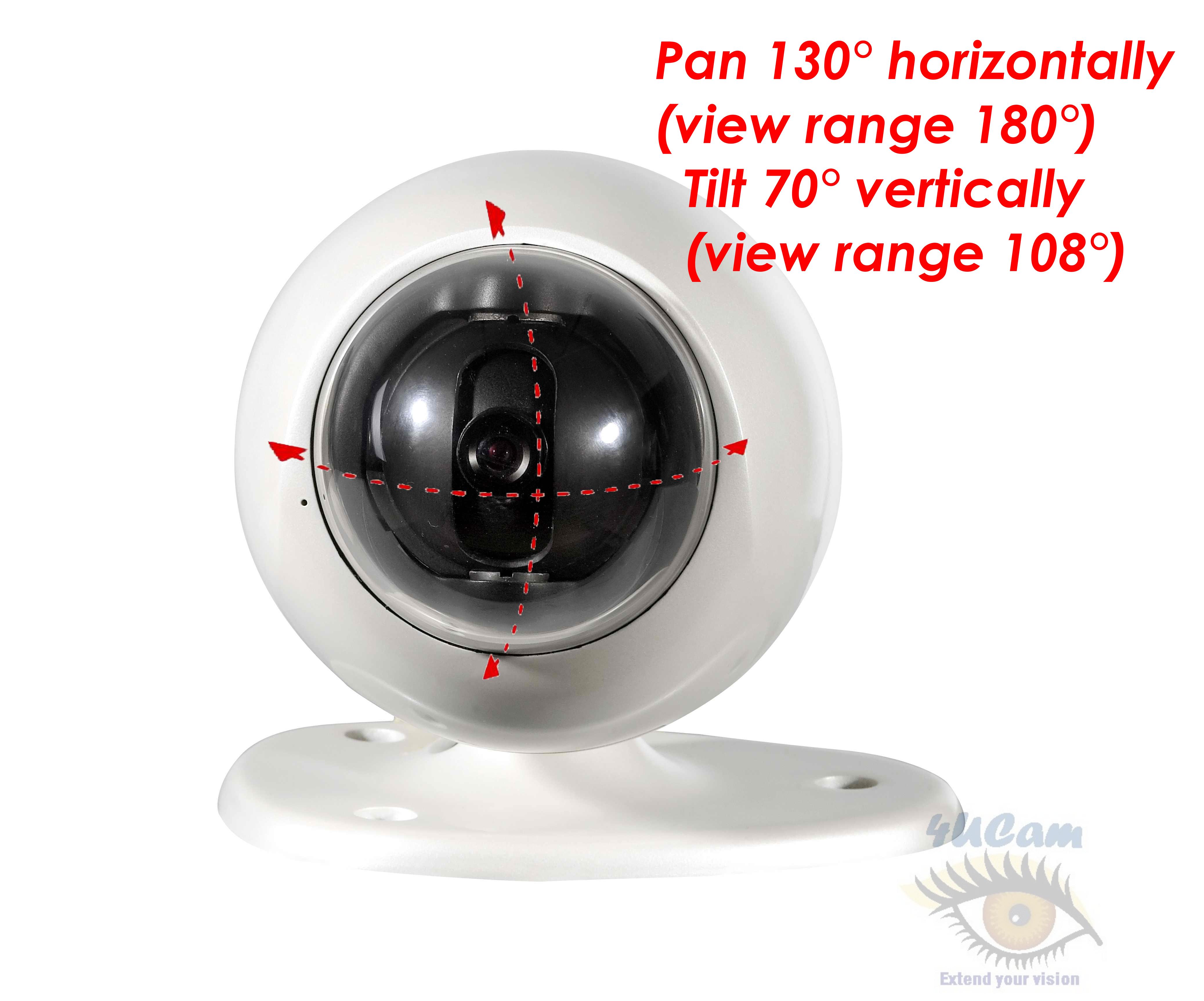

Pan 130° horizontally   Tilt 70° vertically
(view range 180°)      (view range 108°)
Click picture for better view of the IP camera
You can click the links below to have a test drive. Please note this system physically located in China, and share
by many users. Since system only allow maximum of 8 users, you might have problem to logon sometime, and the
respond time might be slow.  (
User ID: guest Password: guest)


Camera One - Office Front.
