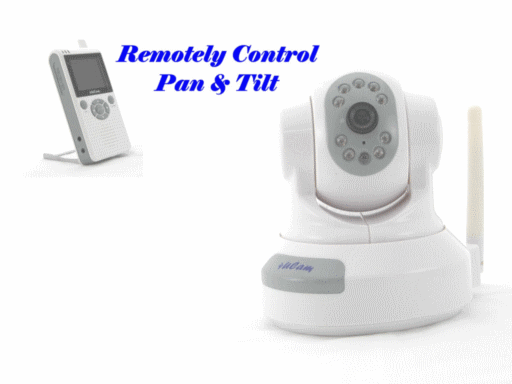

Wireless Control Pan/Tilt Camera
2.5 LCD Baby Color Monitor
Item#: 860QN2
Listed Price: $299.99
Now $169.95 - $40
Full Color
Indoor
Day and Night
Audio + Video
features
specification
contains
Outside View
Indoor View
Completely Dark – Night Vision View
PRODUCT DESCRIPTION:
This high-tech hand-held monitor can actually Pan and Tilt the camera! With other systems if the baby rolls out of view,
the camera is no longer seeing anything. This system solves that problem forever.

One of the neatest
COLOR "baby monitor" camera sets available today! 10 infrared illuminators see in total darkness for
up to 20 ft.! (see actual video and sample picture below). Wireless battery operated
remote pan/tilt LCD monitor
controller allows for an incredible
270 degree horizontal rotation angle and 120 degree vertical rotation angle. 2.5"
LCD-TFT monitor insures excellent picture quality. Built-in audio lets you know when baby is in need. A/V output allows
for recording or viewing on a TV or Monitor.

Additional New Features comparing to the original models (860Q):
  • Wider Pan/Tilt degree. It can cover three times of the area compare to the older model. (270°/120° vs 180°/60°)
  • Power saving mode – you can shut off the LCD, and have AUDIO ONLY mode.

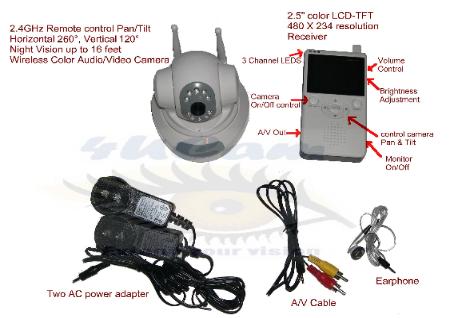

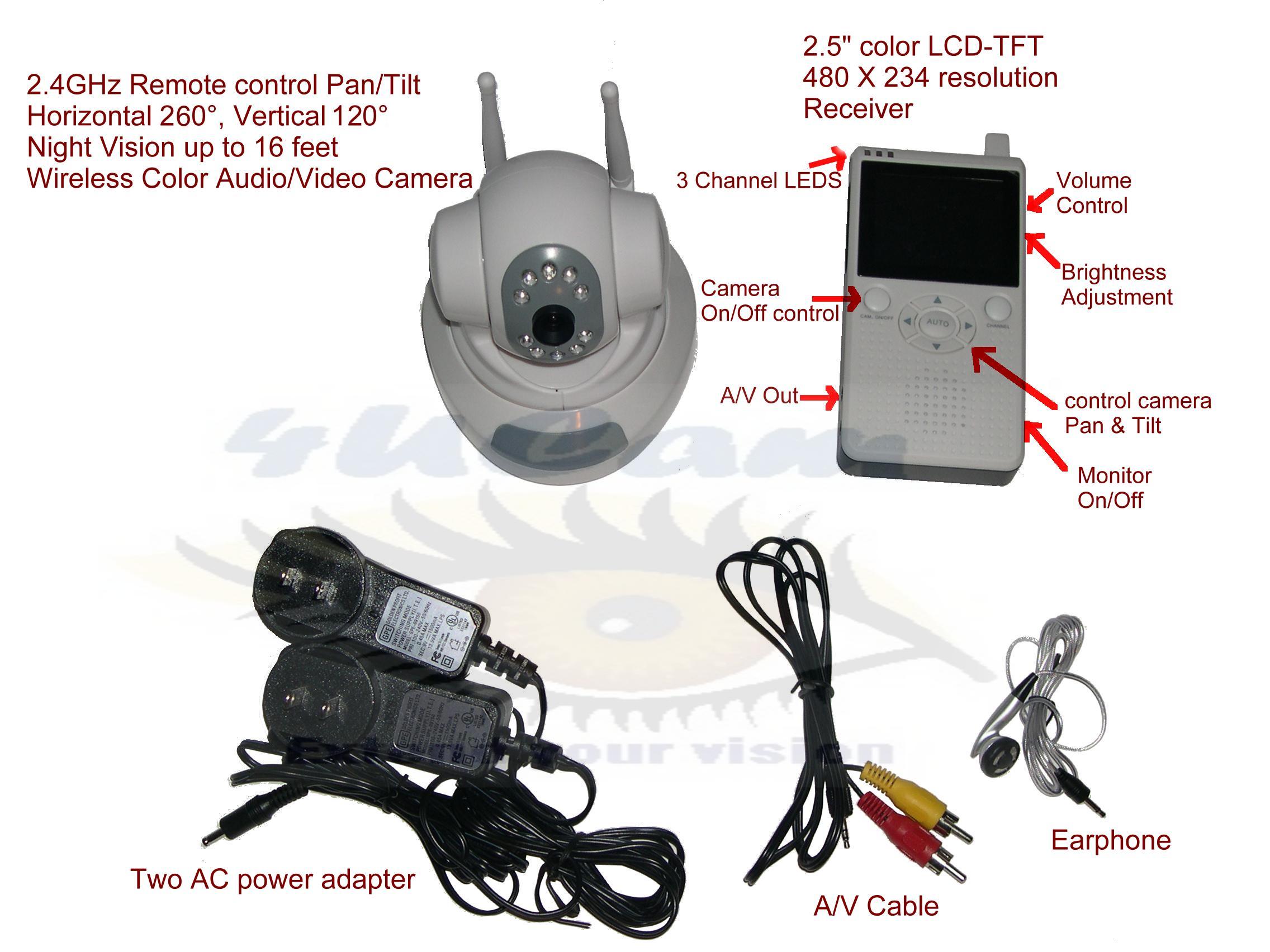

Package contains:
  • One Wireless color infrared LEDs camera
  • One hand held monitor with 2.5-inch LCD TFT screen
  • Two AC power adapters
  • One video cable
  • One Earphone
  • User's manual


















Accessories:
Please see the ACTUAL PAN&TILT CAMERA IN ACTION

Following are ACTUAL video outputs from this Pan & Tilt Wireless Camera. The mini motor inside the wireless camera
drives the pan & tilt camera in motion, remotely controlled by the Hand-held receiver from two rooms (40 feet) away.
Pan and Tilt Camera In CATION
COMPLETELY DARK ROOM
Day time TV ON
QUALITY OF CAMERAS YOU CAN SEE HERE
Here are the actual pictures taken from this camera (860T)
FEATURES:
  • Pan & Tilt  (Horizontal 270°, Vertical 120°) Scan Camera remotely controlled by battery operated hand-held
    receiver
  • Easy Setup! Install and use in minutes
  • Large 2.5" color LCD-TFT with 480 X 234 resolution receiver provides crisp images
  • Night Vision (Effective Range: 20 feet)
  • Including one earphone for receiver
  • Built-in microphone in camera and speaker in receiver for audio monitoring
  • Easily connects to a TV, VCR with AV output on receiver (cable included)
  • 3 channels 2.4GHz wireless in both camera & monitor to avoid possible interference
  • Channel scan in Monitor support up to 3 cameras, looping 10 second each.
  • Up to 330 ft. transmission distance in open space

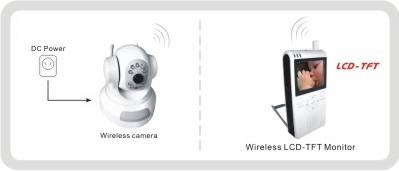

Diagrammatic:










Specifications:

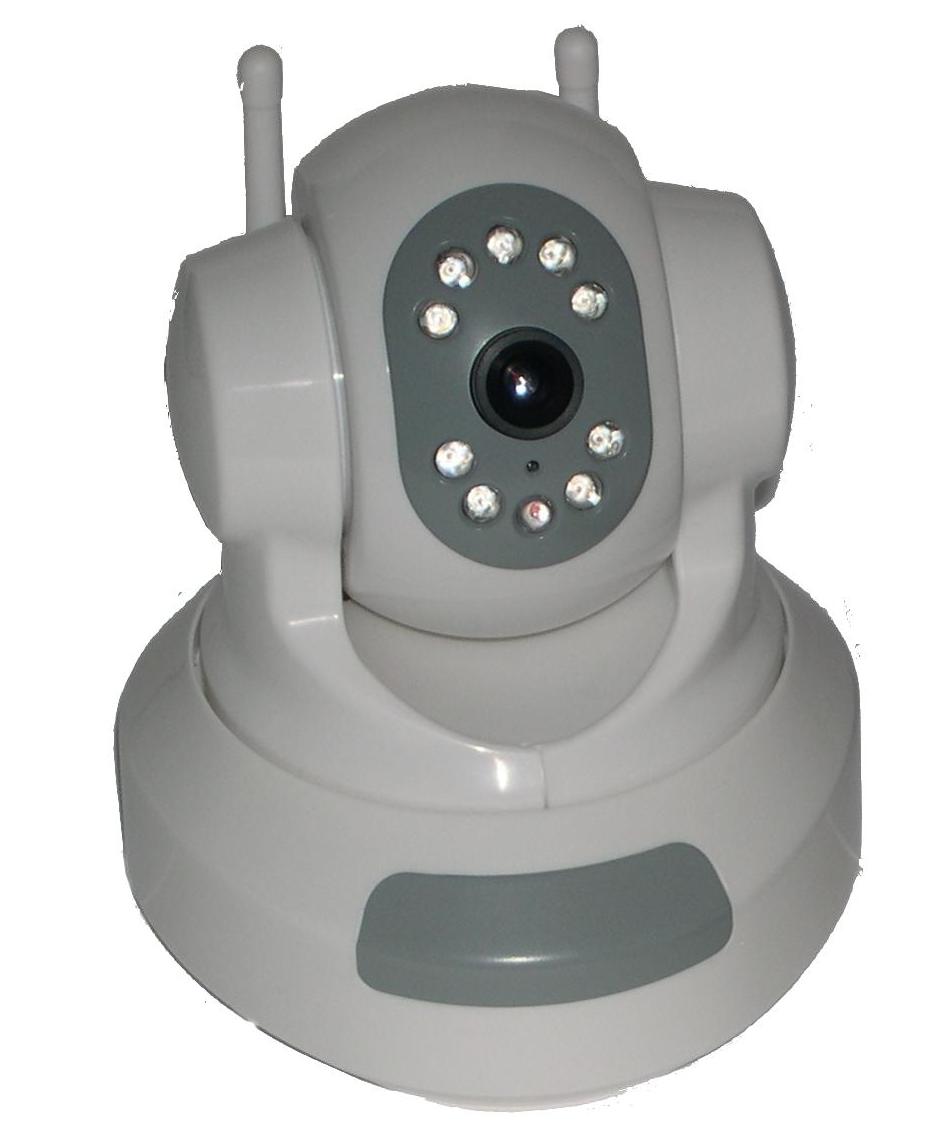

Additional 860T camera with AC power adapter

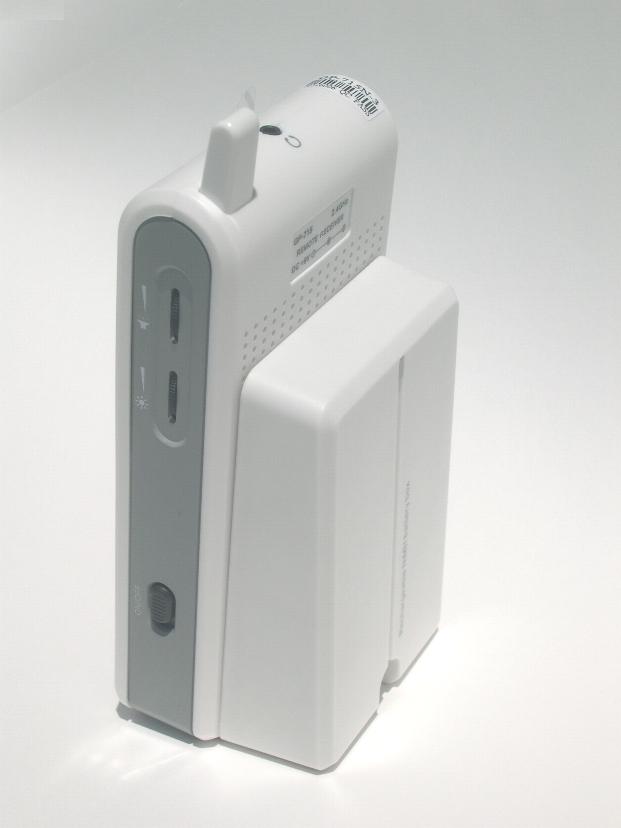

Snap on (2-3 hours) rechargeable MiNH battery for monitor
Item#:860TN
Listed $129.99
Now $99.95
Item#:B404
Listed $49.99
Now $24.95
accessories
* USA Get It Faster!!!
* Add Additional Camera/Battery
* International Order!
Camera/Transmitter (860T)
Monitor/Receiver
Imaging Sensor : CMOS
CMOS Total Pixels : 510x492(NTSC)
Horizontal Resolution: 380 TV Lines
View Angle:  60 Degree
Minimum Illumination:  0  Lux
Transmission Frequency:  ISM 2,400~2,483 MHz
Transmission Power : 2mW/FCC
Modulation Type:  FM
Bandwidth : 18 MHz
Power Supply:  +9 VDC
Consumption Current : 600mA & 700mA(IR ON)
Horizontal Rotating Angle: 270 Degree
Vertiacal Rotating Angle: 120 Degree
Unobstructed Effective Range : 330 feet (Min)
Night Vision Range: 16 feet
Dimensions(WxDxH):  104 x110 x124 mm
Weight : 8 ozs.
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~
+122 (Degree F)
Storage Temperature:  -20 ~ +85 (Degree C) / -4 ~ +185
(Degree F)
Operating Humidity:  85% RH
LCD Size : 2.5 inch TFT
LCD Resolution: 480 x 234
Receiving Frequency: ISM 2,400MHz~2,483MHz
Demodulation Type: FM
Receiving Sensitivity: <= -85dBm
Power Supply:  +9 VDC
Consumption Current : 300mA
Remote control transmission Frequency
315/433/868/915MHz
Remote control transmission power: 14+/-1.5dBm
Remote control Modulation Type: FSK
Dimensions(WxDxH):  68 x 149 x 26 mm (Excluding
Antenna)
Weight : 6 ozs.
Operating Temperature : 0 ~ +50 (Degree C) / +32 ~ +122
(Degree F)
Storage Temperature:  -20 ~ +80 (Degree C) / -4 ~ +176
(Degree F)
Operating Humidity:  85% RH

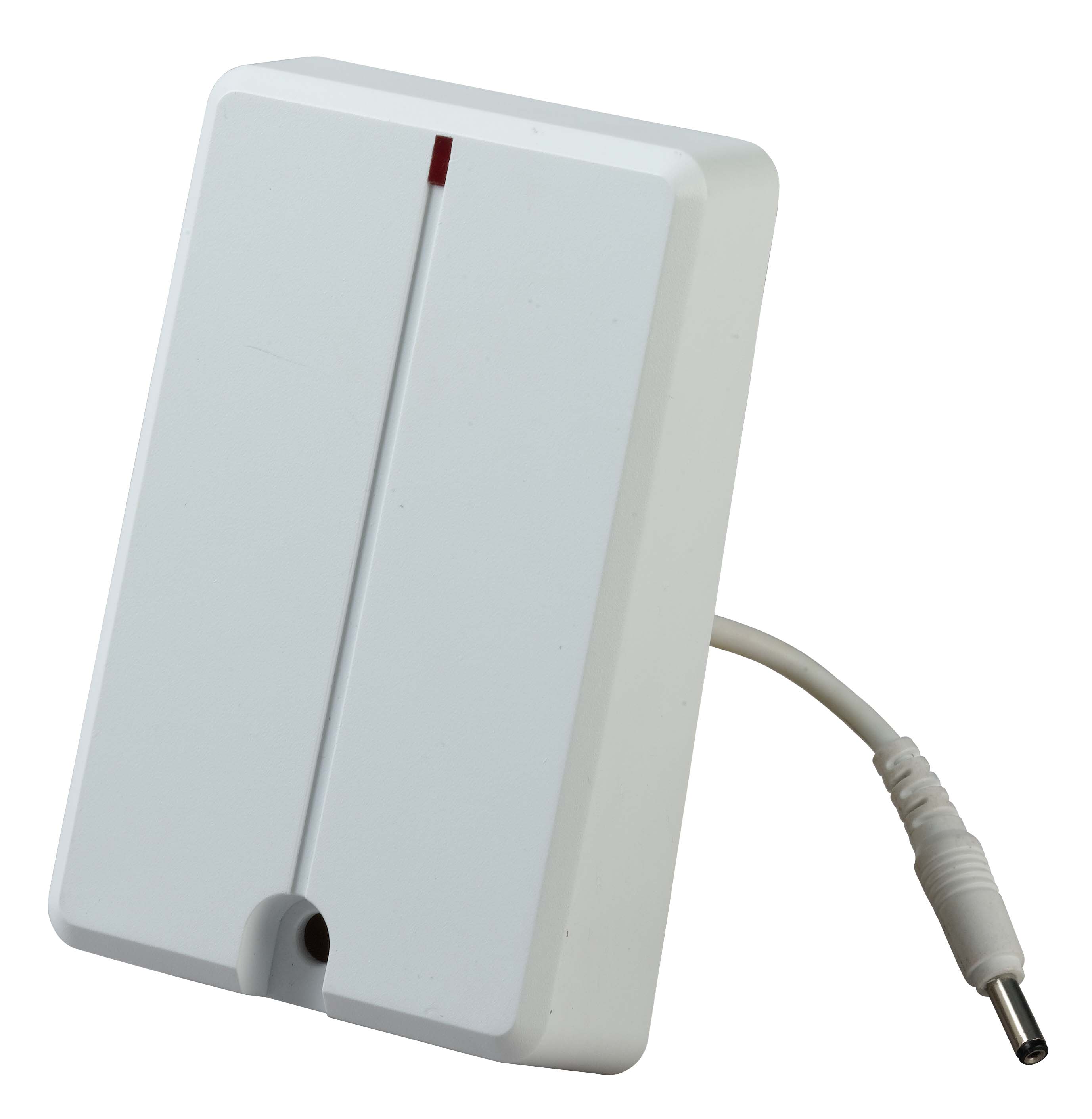

9V battery adapter for camera.
- this adapter will make the camera truly portable.
Item#:9Vadapter
(battery no included)
Now $4.99
Wall mount base for camera.
Item#: WallMount
(camera no included)
Now $19.99
Item#: Flat_WallMount
(camera no included)
Now $24.99
Other Camera please go to
accessories page:

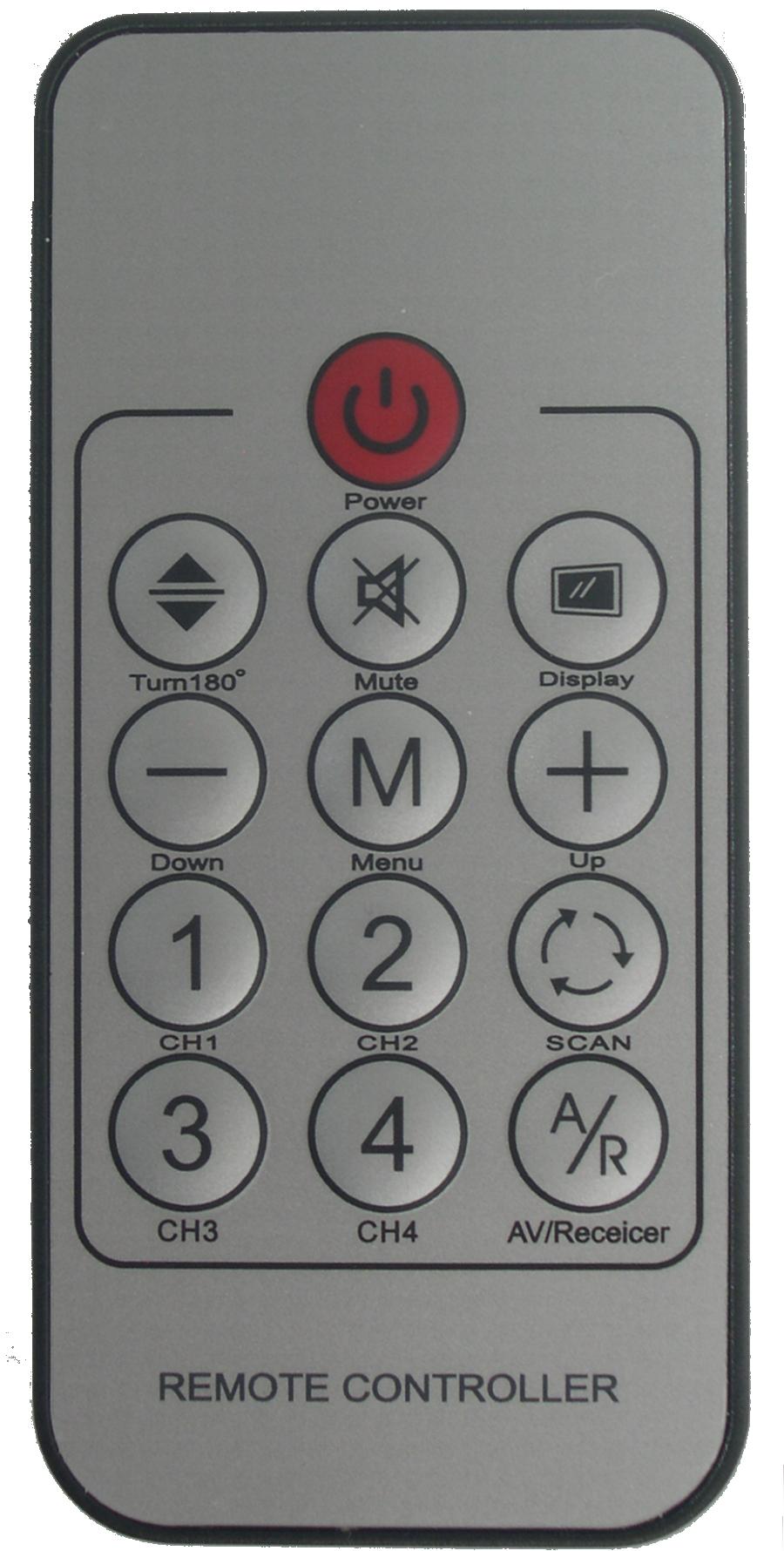

Pan/Tilt Cam mini
remote control
Item#:860T_remote
Now $14.95

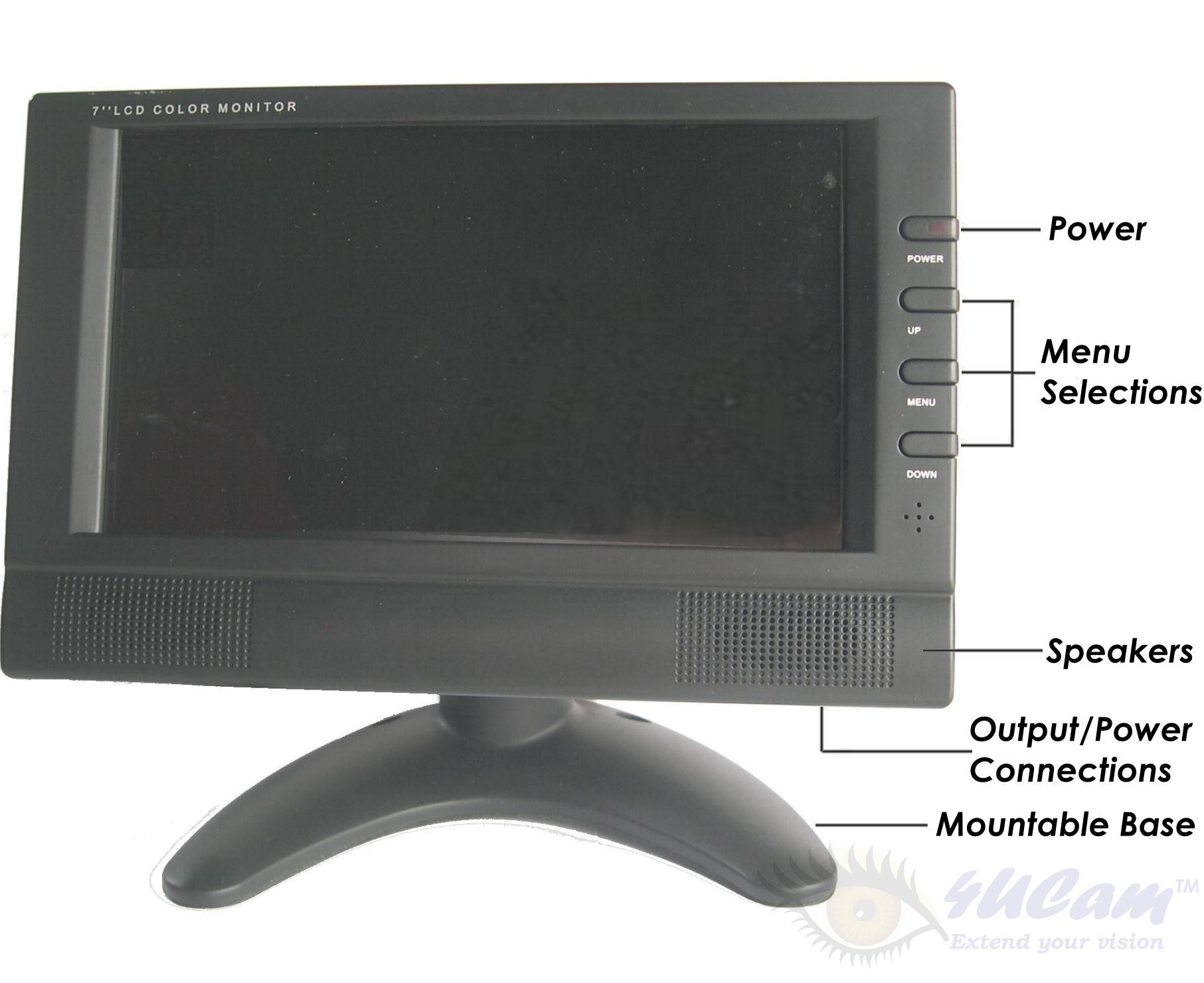

Item: #7inch_LCD_Baby
Listed $199.99
Now $149.95
