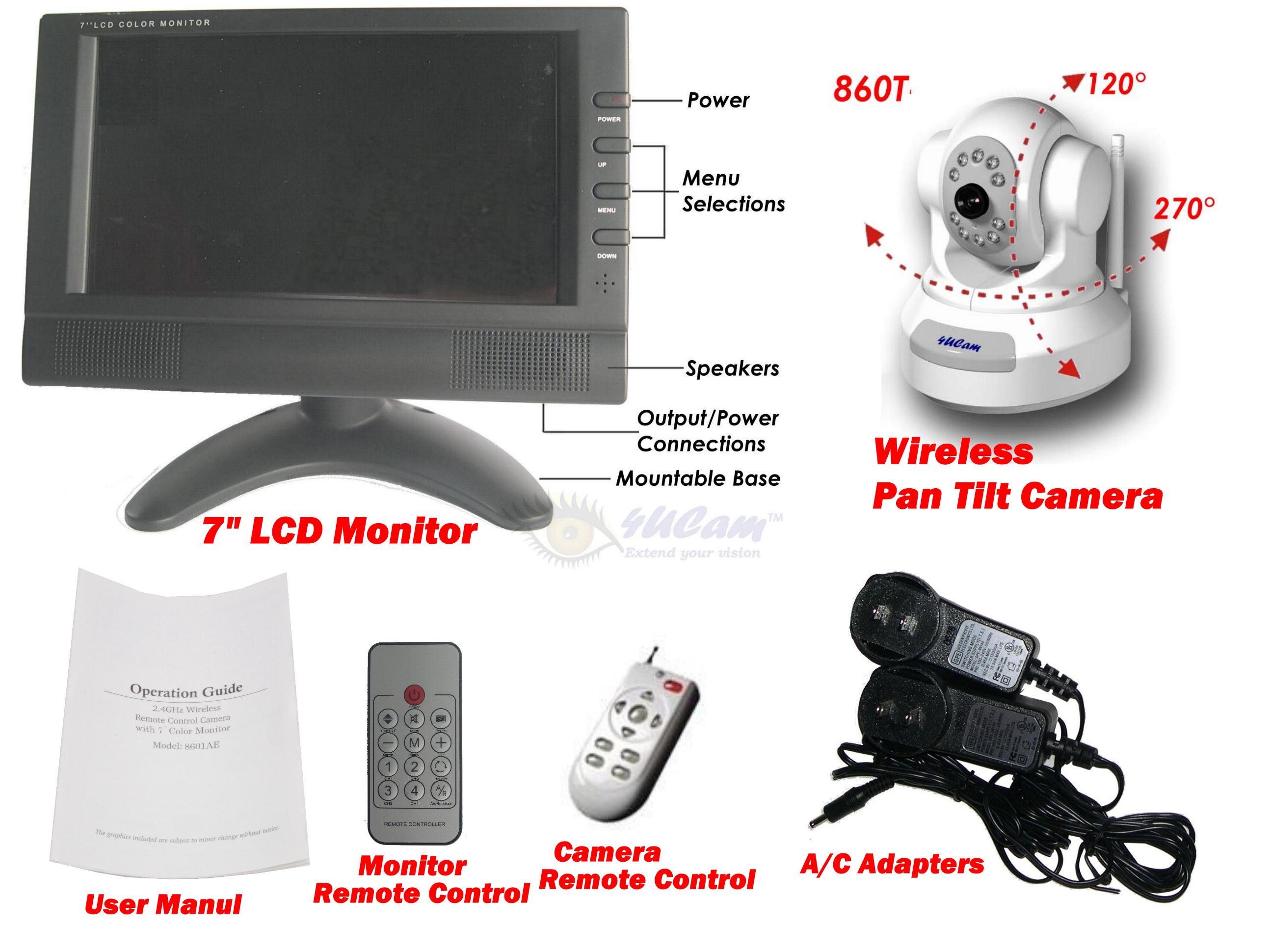

Package contains:
- One 7-inch LCD TFT monitor
- One pan tilt wireless color IR LEDs camera
- Two AC power adapters
- Bracket for Receiver
- Remote controller for Receiver
- Remote control for Camera
- User's manual
Accessories:
7" LCD Color Monitor
Wireless Pan Tilt Camera
Item#: 860AE
Listed $319.99 Now $204.95

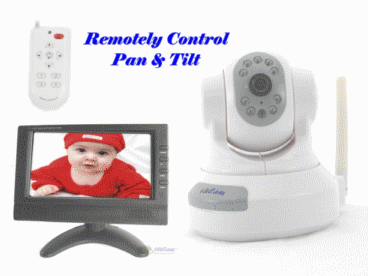

This new arrival of the 7" LCD Widescreen, combined with
wireless pan tilt camera, is the largest screen of baby
monitors on the market today.
The 1" thin LCD sits on the fully adjustable base allowing
you to aim the screen in almost any direction. The base is
also wall mountable.
On Screen Display menu allows you to navigate and
change settings from a distance, using the remote control.
Monitor, fully compatible with any of our wireless cameras,
can view up to 4 separate cameras, with a manual or auto
looping channel function. Additional cameras are available
for purchase separately.
Full RCA A/V inputs allows you to plug in a DVD player, or
video game console. The built-in dual speakers output a
stereo sound. Please note there is not an A/V output from
the monitor, only an input. The monitor is powered by an
A/C adapter.
|
|
|
|
This remote control can actually Pan and Tilt the camera! Now One
Camera Can Easily Cover the Entire Room. With other systems if
the baby rolls out of view, the camera is no longer seeing anything.
This system solves that problem forever.
The COLOR wireless camera with 10 infrared illuminators, enable
to see in total darkness for up to 20 ft.! (See actual picture below).
Wireless battery operated remote controller allows for an incredible
270 degree horizontal rotation angle and 120 degree vertical
rotation angle. Combine with the 7" LCD-TFT monitor insures
excellent picture quality. Built-in audio lets you know when baby is
in need.
|
|
FEATURES:
- Easy Setup! Install and use in minutes
- Large 7" color LCD-TFT with 480 X 234 resolution with remote control
- Pan Tilt (Horizontal 270°, Vertical 120°) Scan Camera remotely controlled by remote control
- Night Vision (Effective Range: 20 feet)
- Built-in microphone in camera and stereo speakers in receiver for audio monitoring
- RCA A/V input on monitor (RCA A/V cable included)
- 3 channels 2.4GHz wireless in both camera & monitor to avoid possible interference
- Channel switch in Monitor support viewing up to 4 cameras. (Note: additional cameras sold
separately, see accessories)
- Up to 330 ft. transmission distance in open space
Diagrammatic:
Specifications:
Camera/Transmitter (860T)
|
Monitor/Receiver
|
Imaging Sensor : CMOS
CMOS Total Pixels : 510x492(NTSC)
Horizontal Resolution: 380 TV Lines
View Angle: 60 Degree
Minimum Illumination: 0 Lux
Transmission Frequency: ISM 2,400~2,483 MHz
Transmission Power : 2mW/FCC
Modulation Type: FM
Bandwidth : 18 MHz
Power Supply: +9 VDC
Consumption Current : 600mA & 700mA(IR ON)
Horizontal Rotating Angle: 270 Degree
Vertiacal Rotating Angle: 120 Degree
Unobstructed Effective Range : 330 feet (Min)
Night Vision Range: 16 feet
Dimensions(WxDxH): 104 x110 x124 mm
Weight : 8 ozs.
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~
+122 (Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185
(Degree F)
Operating Humidity: 85% RH
|
LCD Size : 7 inch TFT
LCD Resolution: 480 x 234
Receiving Frequency: ISM 2,400MHz~2,483MHz
Intermediate Frequency: 480MHz
Demodulation Type: FM
Receiving Sensitivity: <= -85dBm
Power Supply: 9V to 12V VDC
Consumption Current : 1.5A
Dimensions(WxDxH): 197 x 127 x 25 mm
(Excluding Antenna)
Weight : 15 ozs
Operating Temperature : 0 ~ +50 (Degree C) /
+32 ~ +122 (Degree F)
Storage Temperature: -20 ~ +80 (Degree C) / -4
~ +176 (Degree F)
Operating Humidity: 85% RH
|
|
ACTUAL PAN&TILT CAMERA IN ACTION
|
COMPLETELY DARK ROOM
|
Day time TV ON
|
These two video are ACTUAL video outputs from
this Pan & Tilt Wireless Camera. The mini motor
inside the wireless camera drives the pan & tilt
camera in motion, remotely controlled by the
remote control from two rooms (40 feet) away.
|
|
|
|
Outside View
|
Indoor View
|
Completely Dark – Night Vision View
|
|
|
|
|
|
QUALITY OF CAMERAS YOU CAN SEE HERE
Here are the actual pictures taken from this camera (860T)
|
Additional 860T camera with AC power adapter
|
|
|
|
 |
|
|
|
Item#:860TN
Listed $129.99
Now $99.95
|
|
|
|
|
|
|
|
|
|
|
|
|
2.5" Handheld Pan Tilt Monitor
Item#:715N
$99.95
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
9V battery adapter for camera.
- this adapter will make the camera truly portable.
Item#:9Vadapter
(battery no included)
Now $4.99
Wall mount base for camera.
Item#: WallMount
(camera no included)
Now $19.99
Item#: 860T_remote
$14.99
Daisy Camera
Item#:819T
Listed $99.99 Now $69.95
Item#: Flat_WallMount
(camera no included)
Now $24.99
