Digital Wireless Backup CCD
Camera and 7" LCD Receiver
|CCD Camera/Transmitter (9901TD)
|Imaging Sensor CCD
CCD Total Pixels 712 x 480 (NTSC)
Minimum Illumination 0 Lux
Transmission Frequency ISM Digital
Transmission Power 10mW/CE; 2mW/FCC
Modulation Type FM
IR Night Range 30 ft
Bandwidth 18 MHz
Power Supply + 12V/24V DC
Consumption Current (Max.) 230mA
Horizontal View Angle 130 Degrees
Unobstructed Effective Range 100m [Min.]
Dimensions (W x D x H)(mm) 96x52x61(excluding bracket)
Weight [About) 440g
Operating Temperature -20°C/+60°C or+4°F/140°F
Operating Humidity 85% RH
|LCD Resolution 800 x 480
Receiving Frequency ISM Digital
Intermediate Frequency 480 MHz
Demodulation Type FM
Antenna 50 ohm SMA
Receiving Sensitivity <= -85 dBm
Video Output Signal Level 1 .1 V +/- 0.2V~ @75ohm,
Power Supply + 5V DC
Consumption Current (Max.) 650mA
Unobstructed Effective Range 130(Min.)
Dimensions (W x D x H) 214 x 26 x 157mm
Weight [About) 440 g (excluding bracket)
Operating Temperature -10°C/+50°C or+14°F/122°F
Operating Humidity 85% RH

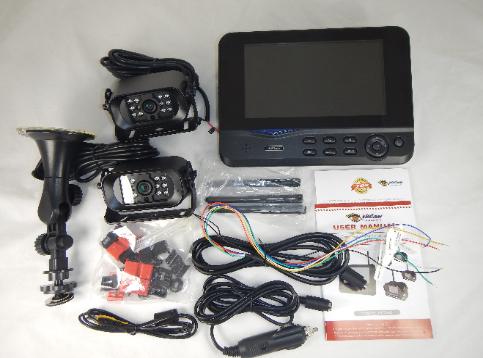

- 9901DT Digital Wireless BackUp Camera
- (up to 4 cameras, additional camera optional)
- 7101DigiQuad 7” TFT-LCD Monitor w/ built-in
- Cigarette Lighter power adapter for monitor.
- Hard wired with trigger wires for monitor.
- Window suction cup Mount Holder
- Video cable, screws, wire connectors
- User manual
- One Year Warranty Card
- (32GB SD Card, optional)
Accessories - additional camera and more:
|7" TFT LCD

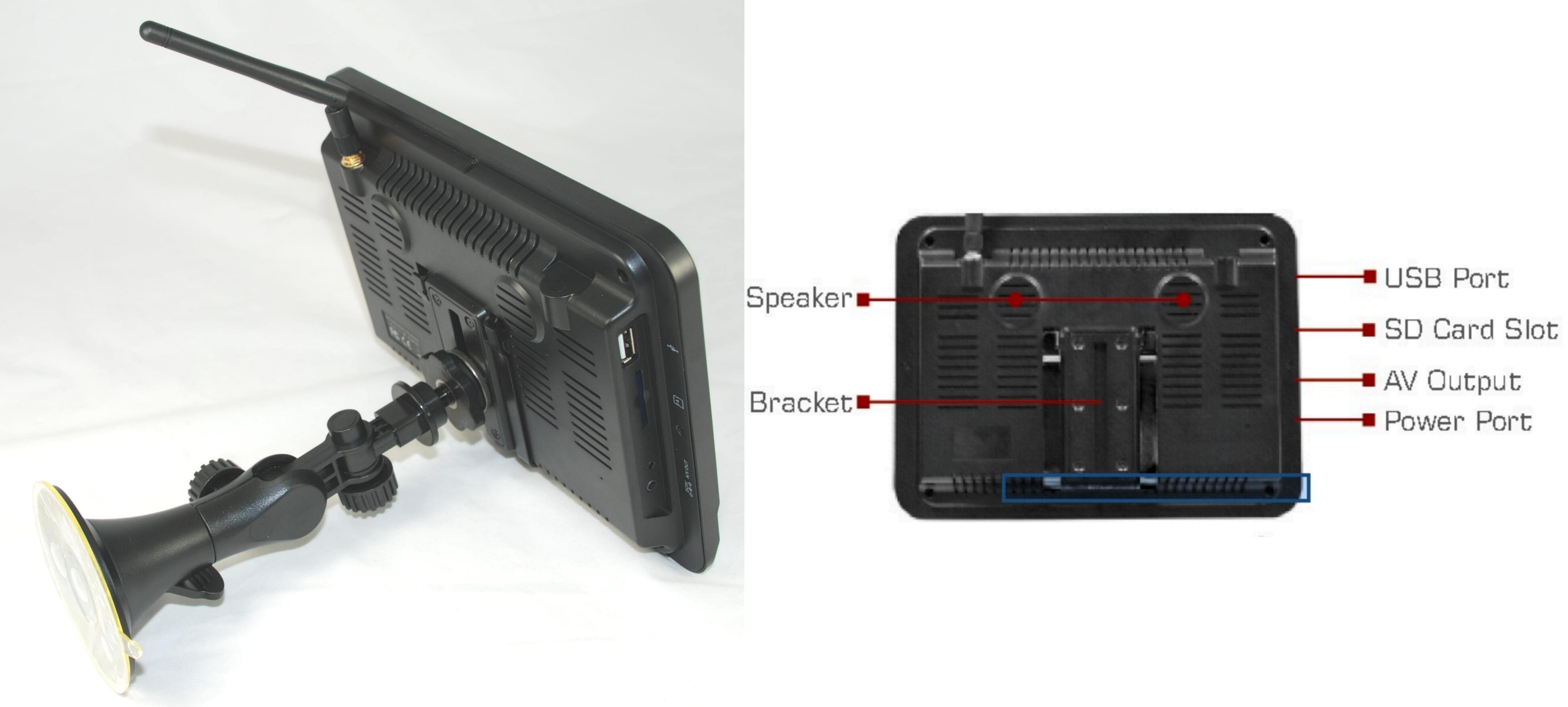

||Back Side View
(two mounting options)
|CCD IR Wireless Camera
A/C adapter for 7" Quad Monitor
Extended 2m Antenna:
-magnetic base for camera or monitor
Car Cigarette Lighter Cables for
Quad View Monitor
Antenna Extension cord: for camera or monitor
item#: antenna_cord_10ft $14.95
If your camera is behind 40+ foot trailer, bigger antenna and antenna extension
cord are suggested to boost the signal straight.
7" Quad view monitor +
Single Camera Set $269.95
Two Camera Set $359.95
Three Camera Set $449.95
Four Camera Set $549.95
7" Color Quad/Split Screen DVR Monitor Digital Wireless CCD Camera for RV, Trailer,
Motor Home, 5th Wheels and Trucks, with trigger wire option.
* Package shows two cameras set. Number of cameras
on the package depend on your selection.
2GB SD Card $4.95
8GB SD Card $16.95
32GB SD Card $19.95
Digital CCD Cam
See the installation video and
Live Demo for the signal range
on this Digital Wireless rear
view camera unit.
Digital Wireless Signal - 0% Interference, 0% statics, 100% crystal clear picture guaranty, or 110%
your money back guaranty*.
Wireless digital signal will not have interference and statics problem. Monitor has SD card for recording feature.
See the installation and signal range live testing below. (If you have Furrion Pre-install Mounting Kit (FOS48T-BL/FOC12TA-
BL), you can add the Furrion bracket adapter , see 2nd video below).

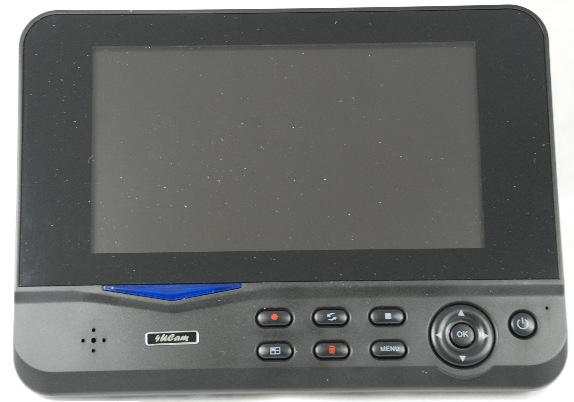

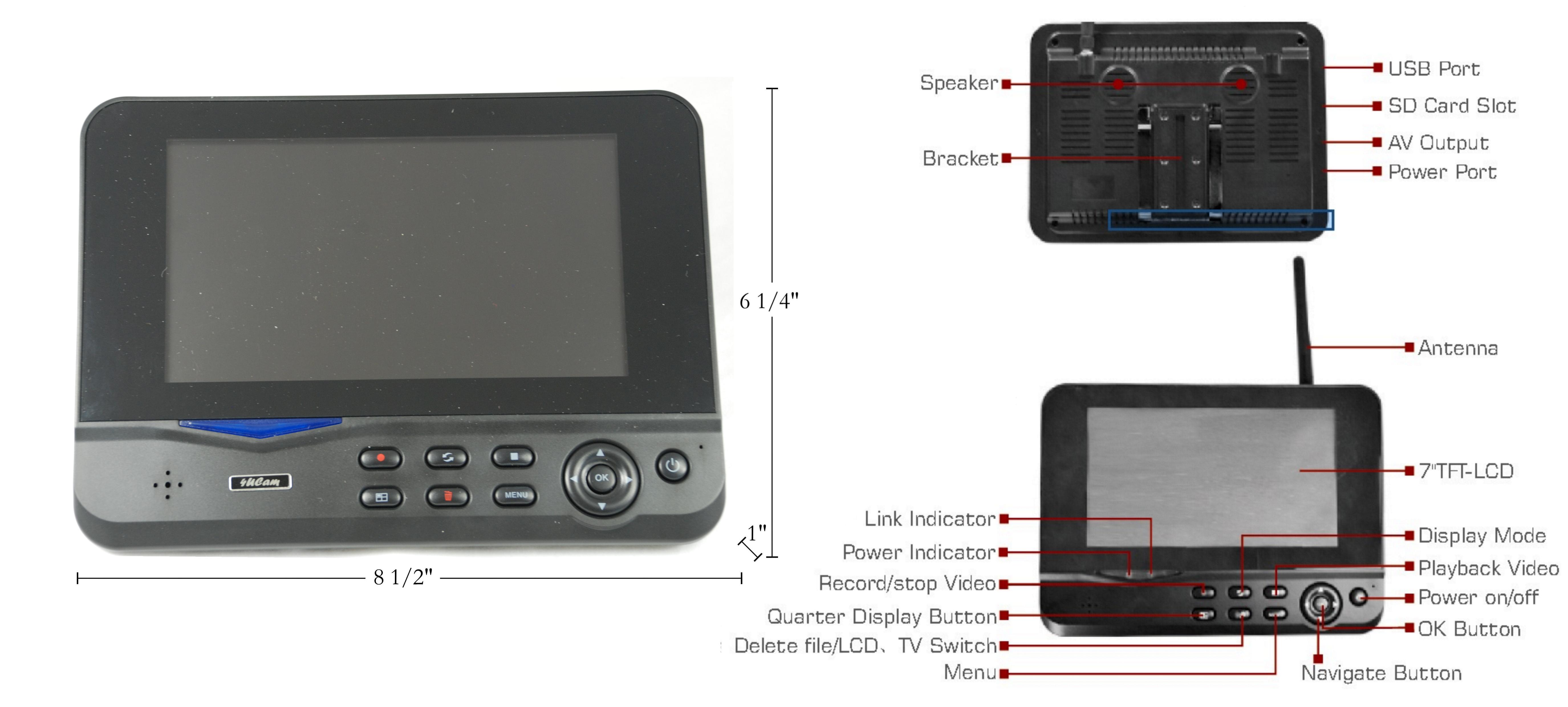

The Monitor (Quad view and video recorder DVR):
This 7" TFT LCD Widescreen with built-in DIGITAL wireless receiver, just plug into cigarette lighter plug, no additional
wiring, no additional wireless receiver hanging on your dashboard. It is a Quad-view monitor, select from one full camera
view, multiple camera view or 4 cameras view. The 1" thin LCD sits on the fully adjustable base allowing you to aim the
screen in almost any direction. A removable external antenna for the monitor allows for better reception for long range
signals. Allow image rotation and mirror, non-mirror setting. Full RCA A/V output allows you to output image to bigger screen.
Also comes with SD Card slot for camera video and Audio recording. Trigger wire for auto switch on camera full screen when
Right/Left turning light on, or when reverse (apply only when monitor does not get power from cigarette lighter plug).
This heavy-duty metal framed CCD wireless water-proof camera comes with a 11 high-powered IR LEDs for 30 feet night
vision in total darkness. Camera uses SONY 1/4" high-resolution CCD, with removable external antenna for longer range
signal transmission, estimated unobstructed range of 300 feet. Aluminum alloy metal case with 6.8G-force rated shock
resistant, IP66 waterproof of resistance grade, and heavy-duty adjustable steel mounting bracket.
Click Above Pictures for Detail View
Get the security you need to protect your family and friends. Eliminate the blinds spots and see what's behind you before
you back up. Large 7" monitor is easy to view.
• DIGITAL Wireless Back-Up Camera System, 0% Interference, 0% statics, 100% crystal clear picture guaranty.
• Quad view monitor allow single, or multiple view (split display). SD card slot allow video recording.
• Comes with hard wire option, when connects trigger wire, allow auto camera full screen display when triggered.
• DIGITAL Wireless System, no need for complex connect wire layout, easy install.
• Built-in 11 high-powered IR LED night vision helping to see better at night (see sample picture below)
• Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)
• Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
• 7” Color TFT-LCD Monitor with built-in receiver, one RCA A/V output for your DVD or game console.
• Waterproof, heavy-duty CCD IR camera provides flexible mount location and position
• For use with 12V-24V DC electrical systems, comes with cigarette lighter power adapter for the monitor.
• Installation is easy with the elimination of wires from camera to monitor
• Comes complete with everything you need to install
• Easy to read English installation manual
Car wire Harness for 7" Monitor
Furrion bracket adapter w/
If you have Furrion Pre-install Mounting Kit (FOS48T-BL/FOC12TA-BL) in
your 5th wheel or trailer, suggest to add this Furrion Bracket Adapter,
installation takes minute. Click here for installation detail.
Furrion bracket adapter
Furrion bracket adapter w/
467DT Digital transmitter w/ video adapter
License Cam + transmitter
Driver Side CCD
Camera + transmitter
Passenger Side CCD
Camera + Transmitter
Dome CCD Camera

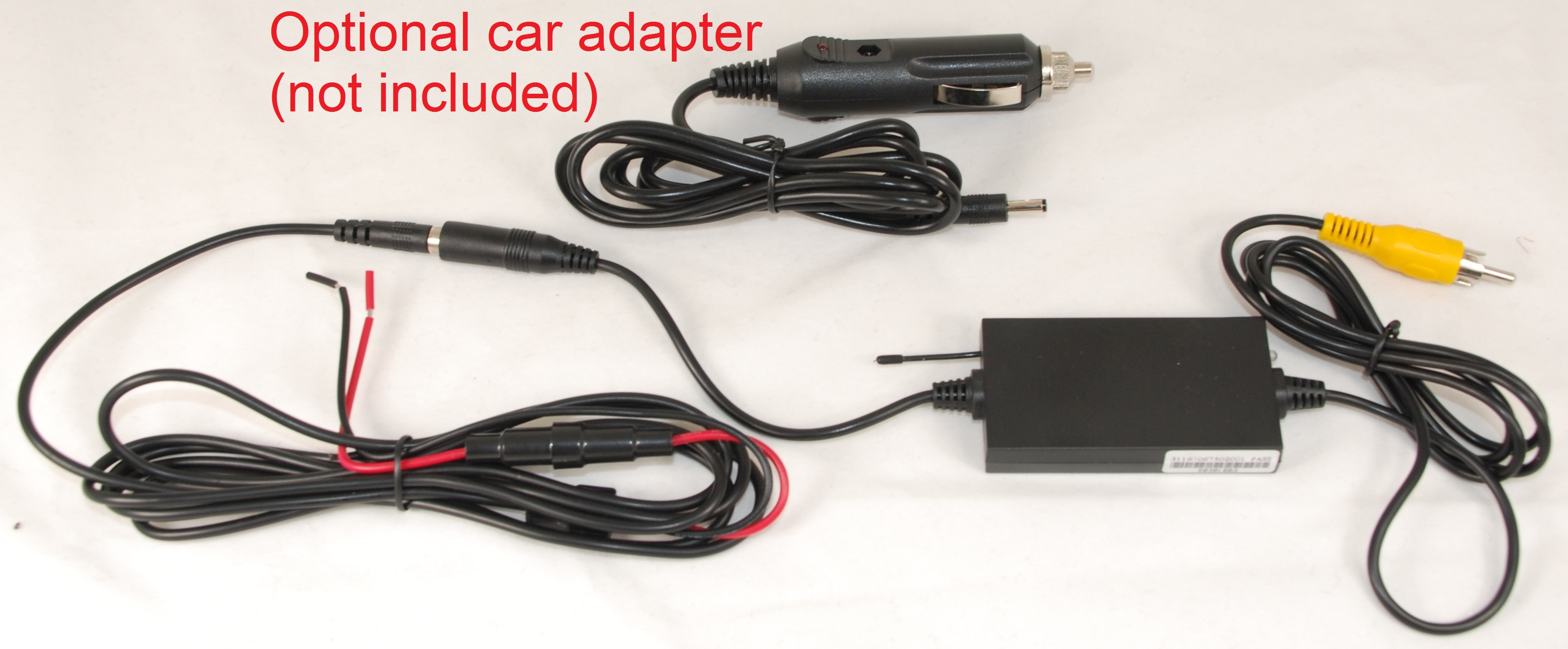

467DR Digital receiver w/ RCA video output
WiFi transmitter weatherproof case
* We guaranty 0% Interference, 0% statics, 100% crystal clear picture guaranty, or 110%your money back guaranty. You
either get a crystal clear, non-statics, non-interference picture, or no picture at all (if the signal is too weak), given you can
provide a good steady power source. If the camera is too far away from the monitor, i.e. over 100 feet away with some layers
of blockage, you will get a No Video message on the monitor. There is signal bar on the monitor to indicate the camera signal
strain. If the signal bar is below 10%, adding the antenna extension cord, and or 9901A 2m antenna will improve the signal
range up to 250 feet in open space. When you have a Toy hauler, due to metal reinforced back wall, signal will reply on
surrounding object to bounce the signal, and might temporary lose signal when driving on wide open high way. Suggest to get
the antenna extension cord to move the antenna to the front wall to guaranty a stable signal.
** The camera has infrared-sensitive image sensor and is tuned to see better in the low light and night time. Since an
infrared-passing filter is used, the foliage (such as tree leaves and grass) would show as false-color/Pink color.
