830E

2.5" LCD Color Monitor
Wireless rechargeable battery
in tiny camera
Item#: 830E
Listed $179.99 Now $139.95

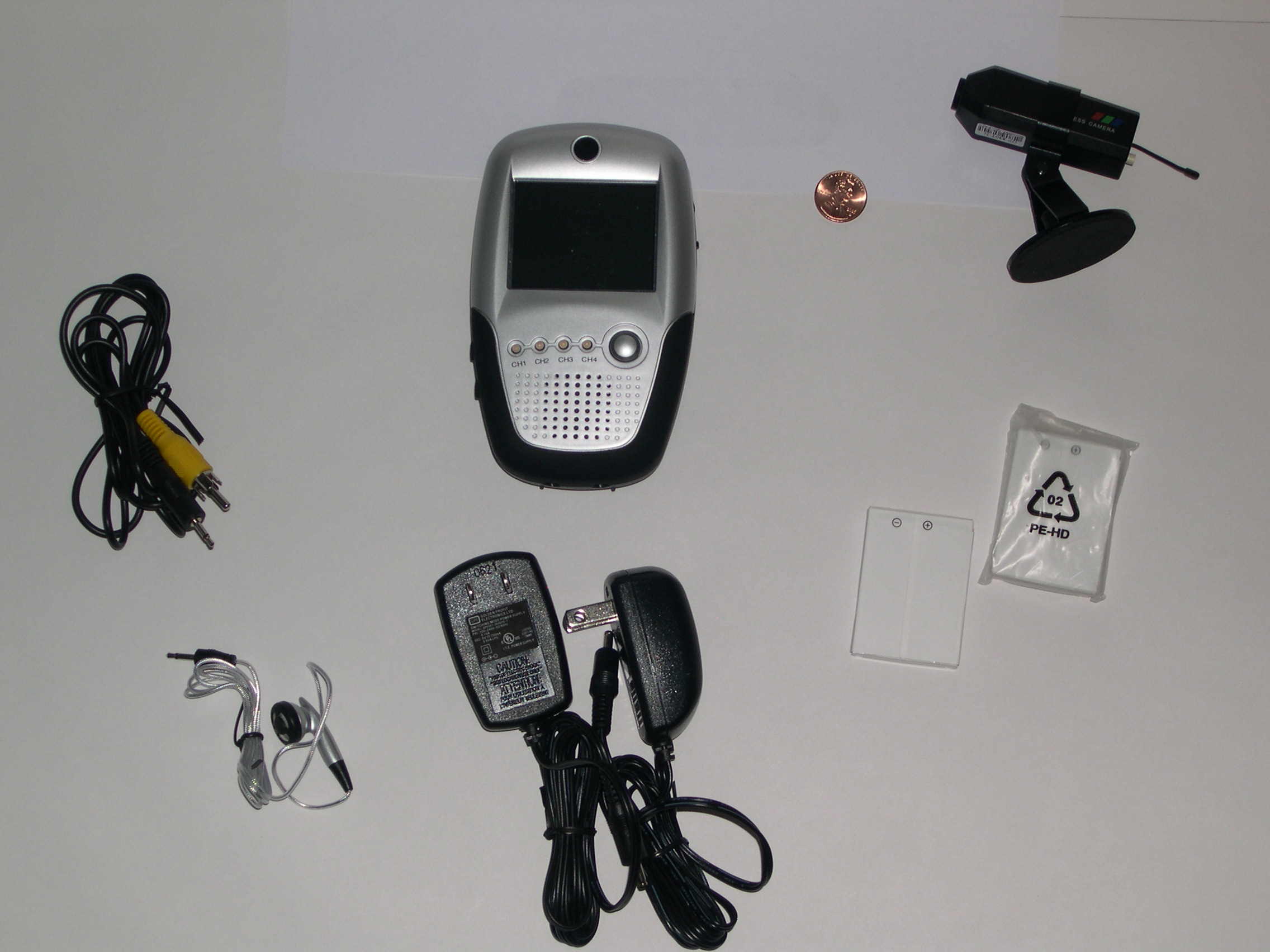

Package contains:

One Wireless color camera
One hand held monitor with 2.5-inch LCD TFT screen
Two AC power adapters
One Lithium-ion Battery for receiver
One video cable
One Earphone
User's manual

Accessories:

Additional camera with AC power adapter.

For more accessories please go to accessories page

features

specification

accessories

This set of hand-held monitor and wireless camera is designed for SUPER PORTABILITY and
ON-THE-GO convenience. The tiny wireless camera is easily removable from the base bracket.
Fully charged, both camera and monitor can perform up to 4 hours without external power supply.

Yes, you read that right... this high-tech built-in Li-battery makes it a truly wireless camera which
enables you to bring it to anyplace where your child goes. Not just inside your home. Move it to the
backyard, playground, and no need to worry where the power supply is.

This set is designed not only to fix it on the walls, but also give you fun. You can install it on a radio
remote airplane/car and see the video on your monitor screen, with audio. How about fixing it on
your pet and SEE/HEAR where your pet brings you. How about installing it on your helmet while you
ski/snowboard down the hill. The transmission is up to 330 feet on open space.

The COLOR 2.5" LCD-TFT monitor insures excellent picture quality. Built-in audio lets you know
when your baby is in need. You can connect your monitor video to a portable DVD player, or
Multi-Media DVR to record the action. Of course you can connect it to your good old color TV, and
VCR too. There are 4 channels, 2.4 GHz on both camera and monitor, enable you to watch up to 4
cameras in action.

QUALITY OF CAMERAS YOU CAN SEE HERE:
Here are the actual pictures taken from this camera (830T)

		Tiny camera size



	Super portable Absolutely not wire up to 4 hours

Easy remove from camera base

FEATURES:

Easy Setup! Install and use in minutes
Large 2.5" color LCD-TFT with 480 X 234 resolution receiver provides crisp images
One Rechargeable Li-battery in receiver for portable monitoring
Tiny size (2 5/8" x 7/8" x 7/8" excluding bracket) camera with built-in rechargeable Li-battery inside
for discreet observation & portability
Including one earphone for receiver
Built-in microphone in camera and speaker in receiver for audio monitoring
Easily connects to a TV, VCR with AV output on receiver (video cable included)
4 channels 2.4GHz wireless in both camera & monitor to avoid possible interference
Channel Scan in Monitor support scanning up to 4 cameras. (Note: additional cameras sold
separately, see accessories)
Up to 330 ft. transmission distance in open space

Diagrammatic:

Specifications:

Camera/Transmitter (830T)

Monitor/Receiver

Imaging Sensor : CMOS
CMOS Total Pixels : 628x582(PAL) ; 510x492(NTSC)
Horizontal Resolution: 380 TV Lines
View Angle: 60 Degree
Minimum Illumination: 5 Lux
Transmission Frequency: ISM 2,400~2,483 MHz
Transmission Power : 10mW/CE; 2mW/FCC
Modulation Type: FM
Bandwidth : 18 MHz
Power Supply: +5 VDC
Battery Type: Lithium Battery
Battery Capacity: 500mAh
Charge Time: 2hours
Working Time: 5hours
Consumption Current(Max.) : 90mA
Unobstructed Effective Range : 100m (Min)
Dimensions(WxDxH): 66 x23 x23 mm
Weight : 10oz
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~
+122 (Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185
(Degree F)
Operating Humidity: 85% RH

LCD Size : 2.5 inch TFT
LCD Resolution: 480 x 234
Receiving Frequency: ISM 2,400MHz~2,483MHz
Intermediate Frequency: 480MHz
Demodulation Type: FM
Receiving Sensitivity: <= -85dBm
Power Supply: +5 VDC
Consumption Current : 700mA
Dimensions(WxDxH): 80 x 38 x 130 mm (Excluding
Antenna)
Weight : 250 g
Operating Temperature : 0 ~ +50 (Degree C) / +32 ~
+122 (Degree F)
Storage Temperature: -20 ~ +80 (Degree C) / -4 ~ +176
(Degree F)
Operating Humidity: 85% RH
